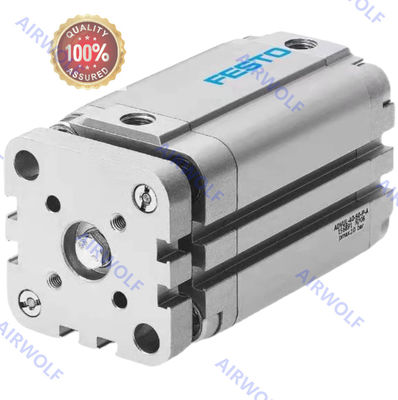

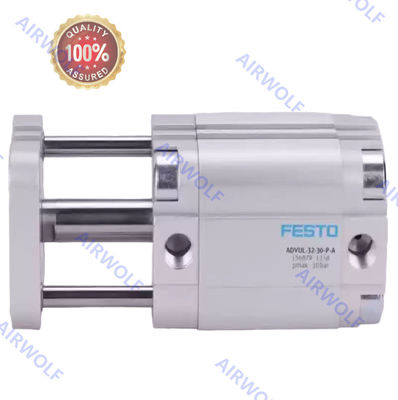

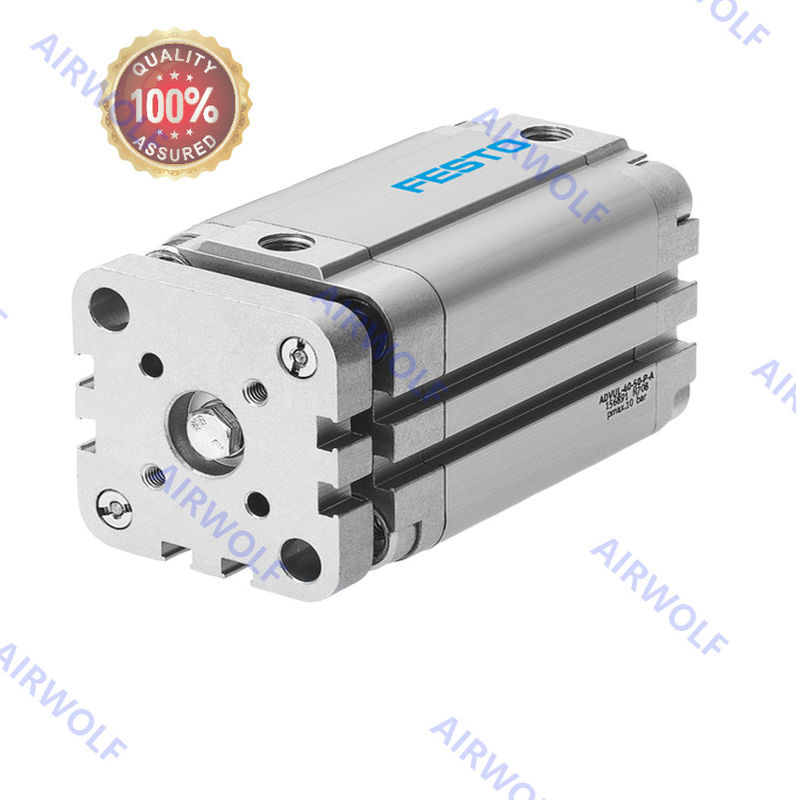

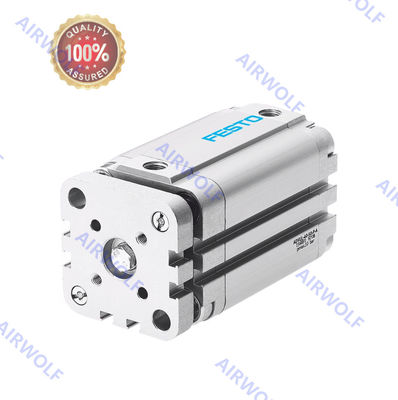

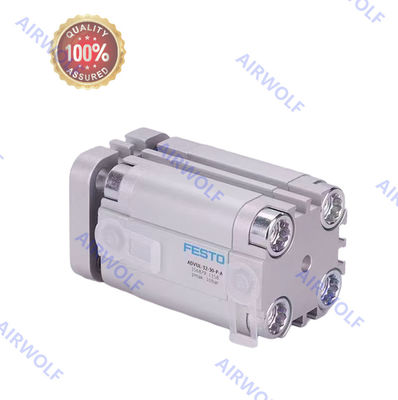

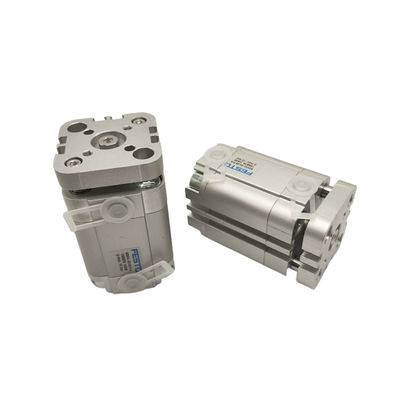

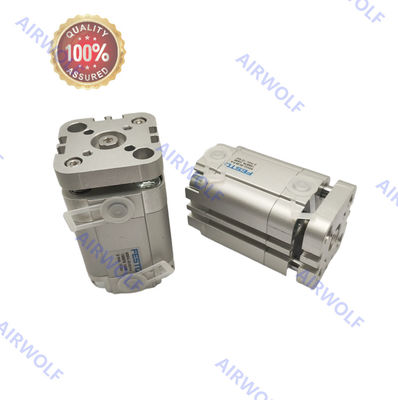

Name: FESTO Guide Piston Rod Double Acting 1-10 Bar Compact Cylinder ADVUL 12-100 156925 ADVUL-100-30-P-A
Brand: Airwolf Automation
SKU: 156847 ADVUL-12-20-P-A 156854 ADVUL-16-20-P-A 156915 ADVUL-80-25-P-A 156848 ADVUL-12-25-P-A 156855 ADVUL-16-25-P-A 156916 ADVUL-80-30-P-A 156849 ADVUL-12-30-P-A 156856 ADVUL-16-30-P-A 156917 ADVUL-80-40-P-A
Price: 35.50 USD
Availability: InStock

Home Products Pneumatic Air Cylinders

FESTO Guide Piston Rod Double Acting 1-10 Bar Compact Cylinder ADVUL 12-100 156925 ADVUL-100-30-P-A

Product Details:

Brand Name:	FESTO or OEM
Model Number:	156847 ADVUL-12-20-P-A 156854 ADVUL-16-20-P-A 156915 ADVUL-80-25-P-A 156848 ADVUL-12-25-P-A 156855 ADVUL-16-25-P-A 156916 ADVUL-80-30-P-A 156849 ADVUL-12-30-P-A 156856 ADVUL-16-30-P-A 156917 ADVUL-80-40-P-A

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	EXW USD7.5-65
Packaging Details:	plastic bag, carton，OPP bag
Delivery Time:	8-10 working days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	1200 pcs per month

Contact Now

Detailed Product Description

Cylinder Barrel:	Wrought Aluminium Alloy	Design:	Piston Piston Rod
Working Pressure:	0-10Bar	Operating Medium:	Compressed Air To ISO 8573-1:2010 [7:4:4]
Note On Operating And Pilot Medium:	Lubricated Operation Possible (in Which Case Lubricated Operation Will Always Be Required)	Ambient Temperature:	-20°C-80°C
Piston Material:	High-alloy Steel,and High-alloy Stainless Steel	Seals:	Polyurethane, Nitrile Rubber And Fluoro Rubber
Bearing And End Cap:	Wrought Aluminium Aloy	Flange Screws:	Quenched And Tempered Steel Or High-alloy Stainless Steel
Highlight:	Double acting guide Piston rod , Compact cylinder guide Piston rod , 1-10 bar guide Piston rod

FESTO guide Piston rod Double acting 1-10 bar Compact cylinder ADVUL 12-100 156925 ADVUL-100-30-P-A

1.Double-acting cylinder with piston rod protected against rotation thanks to the guide rod and yoke plate. Wide variety of mounting options.
2.Piston rod secured against rotation by a guide rod and yoke plate
3. Plain bearing
4.Optionally with through piston rod
For position sensing

Order Codes:

156844 ADVUL-12-5-P-A	156851 ADVUL-16-5-P-A	156912 ADVUL-80-10-P-A
156845 ADVUL-12-10-P-A	156852 ADVUL-16-10-P-A	156913 ADVUL-80-15-P-A
156846 ADVUL-12-15-P-A	156853 ADVUL-16-15-P-A	156914 ADVUL-80-20-P-A
156847 ADVUL-12-20-P-A	156854 ADVUL-16-20-P-A	156915 ADVUL-80-25-P-A
156848 ADVUL-12-25-P-A	156855 ADVUL-16-25-P-A	156916 ADVUL-80-30-P-A
156849 ADVUL-12-30-P-A	156856 ADVUL-16-30-P-A	156917 ADVUL-80-40-P-A
156850 ADVUL-12-40-P-A	156857 ADVUL-16-40-P-A	156918 ADVUL-80-50-P-A
156858 ADVUL-20-5-P-A	156866 ADVUL-25-5-P-A	156919 ADVUL-80-60-P-A
156859 ADVUL-20-10-P-A	156867 ADVUL-25-10-P-A	156920 ADVUL-80-80-P-A
156860 ADVUL-20-15-P-A	156868 ADVUL-25-15-P-A	156921 ADVUL-100-10-P-A
156861 ADVUL-20-20-P-A	156869 ADVUL-25-20-P-A	156922 ADVUL-100-15-P-A
156862 ADVUL-20-25-P-A	156870 ADVUL-25-25-P-A	156923 ADVUL-100-20-P-A
156863 ADVUL-20-30-P-A	156871 ADVUL-25-30-P-A	156924 ADVUL-100-25-P-A
156864 ADVUL-20-40-P-A	156872 ADVUL-25-40-P-A	156925 ADVUL-100-30-P-A
156865 ADVUL-20-50-P-A	156873 ADVUL-25-50-P-A	156926 ADVUL-100-40-P-A
156874 ADVUL-32-5-P-A	156884 ADVUL-40-5-P-A	156927 ADVUL-100-50-P-A
156875 ADVUL-32-10-P-A	156885 ADVUL-40-10-P-A	156928 ADVUL-100-60-P-A
156876 ADVUL-32-15-P-A	156886 ADVUL-40-15-P-A	156929 ADVUL-100-80-P-A
156877 ADVUL-32-20-P-A	156887 ADVUL-40-20-P-A
156878 ADVUL-32-25-P-A	156888 ADVUL-40-25-P-A
156879 ADVUL-32-30-P-A	156889 ADVUL-40-30-P-A
156880 ADVUL-32-40-P-A	156890 ADVUL-40-40-P-A
156881 ADVUL-32-50-P-A	156891 ADVUL-40-50-P-A
156882 ADVUL-32-60-P-A	156892 ADVUL-40-60-P-A
156883 ADVUL-32-80-P-A	156893 ADVUL-40-80-P-A
156894 ADVUL-50-10-P-A	156903 ADVUL-63-10-P-A
156895 ADVUL-50-15-P-A	156904 ADVUL-63-15-P-A
156896 ADVUL-50-20-P-A	156905 ADVUL-63-20-P-A
156897 ADVUL-50-25-P-A	156906 ADVUL-63-25-P-A
156898 ADVUL-50-30-P-A	156907 ADVUL-63-30-P-A
156899 ADVUL-50-40-P-A	156908 ADVUL-63-40-P-A
156900 ADVUL-50-50-P-A	156909 ADVUL-63-50-P-A
156901 ADVUL-50-60-P-A	156910 ADVUL-63-60-P-A
156902 ADVUL-50-80-P-A	156911 ADVUL-63-80-P-A

Datasheet:

FESTO Guide Piston Rod Double Acting 1-10 Bar Compact Cylinder ADVUL 12-100 156925 ADVUL-100-30-P-A

HOW TO ORDER:

FESTO Guide Piston Rod Double Acting 1-10 Bar Compact Cylinder ADVUL 12-100 156925 ADVUL-100-30-P-A

Dimension:

FESTO Guide Piston Rod Double Acting 1-10 Bar Compact Cylinder ADVUL 12-100 156925 ADVUL-100-30-P-A
