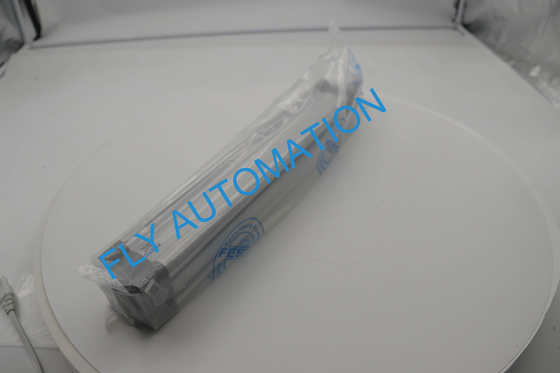

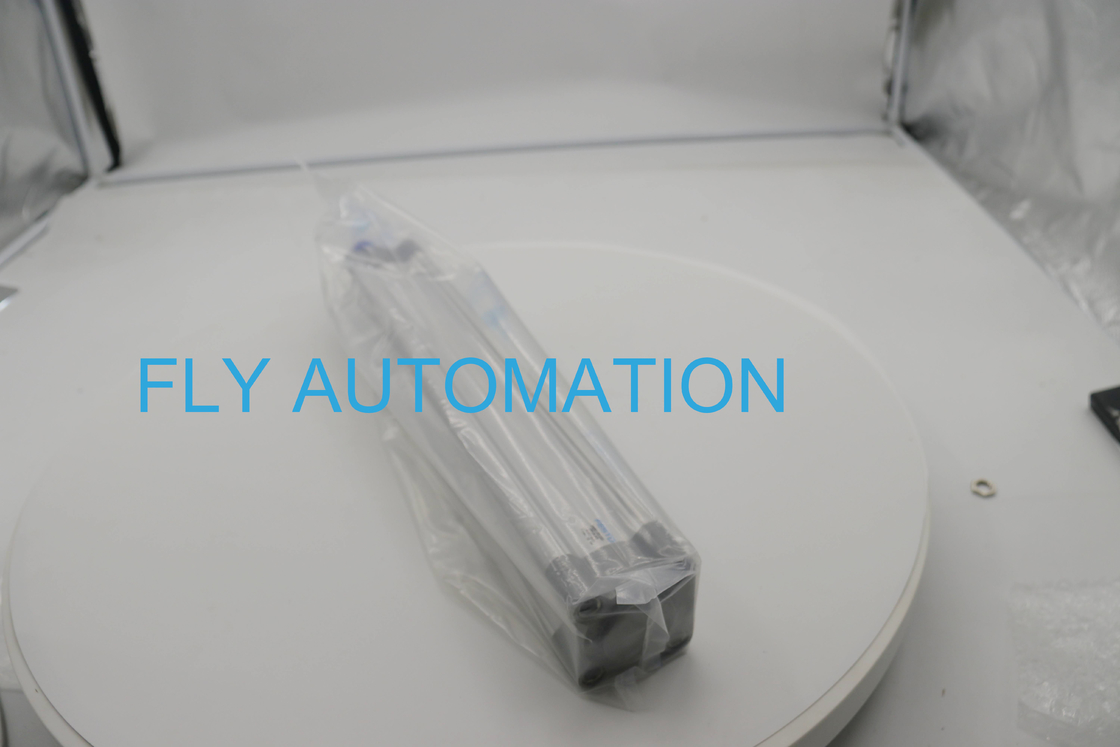

DSBC-50-400-PPVA-N3 1366958 Pneumatic Air Cylinders FESTO ISO Cylinder DSBC-50-400-PPVA-N3

DSBC-50-400-PPVA-N3 1366958 Pneumatic Air Cylinders FESTO ISO Cylinder DSBC-50-400-PPVA-N3

  • DSBC-50-400-PPVA-N3 1366958 Pneumatic Air Cylinders FESTO ISO Cylinder DSBC-50-400-PPVA-N3
  • DSBC-50-400-PPVA-N3 1366958 Pneumatic Air Cylinders FESTO ISO Cylinder DSBC-50-400-PPVA-N3
DSBC-50-400-PPVA-N3 1366958 Pneumatic Air Cylinders FESTO ISO Cylinder DSBC-50-400-PPVA-N3
Product Details:
Place of Origin: China
Brand Name: FESTO
Model Number: DSBC-50-400-PPVA-N3
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: EXW USD50-60
Packaging Details: plastic bag, carton，OPP bag
Delivery Time: 8-10 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 700pcs per month
Contact Now
Detailed Product Description
Brand: FESTO Type: DSBC-50-400-PPVA-N3
Part No: 1366958 Pneumatic Connection: G1/4
Note On Materials: RoHS-compliant Material Bearing: POM
Highlight:

DSBC-50-400-PPVA-N3 1366958 Pneumatic Air Cylinders

,

G1/4 ISO Cylinder

,

POM Bearing ISO Cylinder

FESTO ISO cylinder DSBC-50-400-PPVA-N3 1366958 Pneumatic Air Cylinders

About product

Elastic cushioning: elastic cushioning rings/plates at both ends

pneumatic cushioning, adjustable at both ends

Material cover:Die-cast aluminium Coat

Material piston:Wrought aluminium alloy

Buffer seal material:TPE-U(PU)



Technical Data

Stroke 400mm
Piston diameter 50 mm
Piston rod thread M16x1.5
Cushioning Pneumatic cushioning, adjustable at both ends
Mounting position optional
Conforms to standard ISO 15552
Piston-rod end Male thread
Design Piston Piston rod Profile barrel
Mode of operation Double-acting
Corrosion resistance class CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Cleanroom class Class 6 according to ISO 14644-1
Ambient temperature -20°C-80°C
Cushioning length 22 mm
Basic weight for 0 mm stroke 1190 g
Additional weight per 10 mm stroke 56 g
Pneumatic connection G1/4
Note on materials RoHS-compliant
Material cover Die-cast aluminium, coated
Material piston seal TPE-U(PU)
Material piston Wrought aluminium alloy
Material piston rod High-alloy steel
Material piston rod wiper TPE-U(PU)
Buffer seal material TPE-U(PU)
Cushioning piston material POM
Material cylinder barrel Smooth-anodised wrought aluminium alloy
Material nut Galvanised steel
Material bearing POM
Material collar screws Galvanised steel



Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNT will be normal ways. If you require use of a courier, we can do it.



There are so many models ,please contact with me !
