| Place of Origin: | EU |
| Brand Name: | FESTO |
| Certification: | ISO Standand |
| Model Number: | JMFH-5-1/8-B 30486 |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | USD90 |
| Packaging Details: | Box, Carton 26*6*3.5 CM |
| Delivery Time: | 7 working Days |
| Payment Terms: | T/T, Western Union, MoneyGram Paypal |
| Supply Ability: | 50 PCS Per Week |
| Ordering Code: | JMFH-5-1/8-B 30486 | Symbol: | 00991013 |
|---|---|---|---|
| Sealing Principle: | Soft | Product Weight: | 420g |
| Material Housing: | Die-cast Aluminium | Max. Switching Frequency: | 3 Hz |
| Switching Time Reversal: | 12 Ms | Max. Positive Test Pulse With 0 Signal: | 2200 µs |
| Max. Negative Test Pulse With 1 Signal: | 3700 µs | Storage Temperature: | -40 °C ... 60 °C |
| High Light: | 5/2 way festo make solenoid valve,double festo make solenoid valve,5/2 way festo double solenoid valve |
||

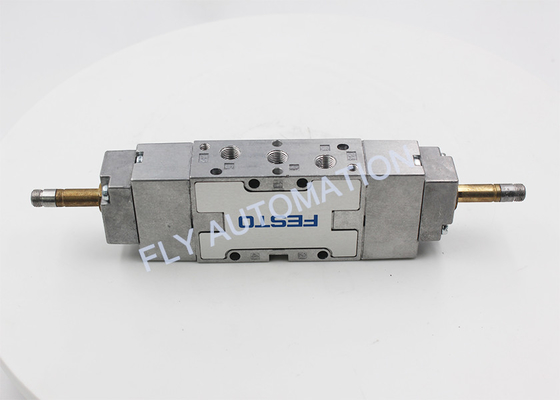

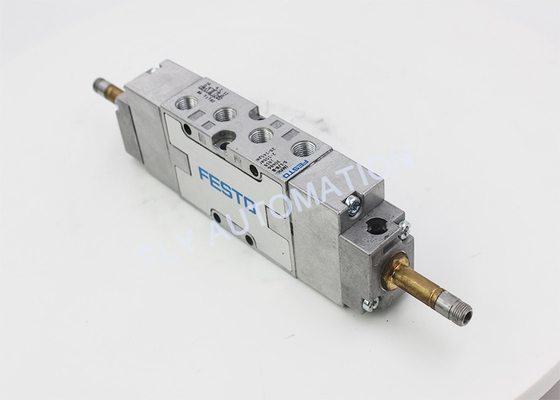

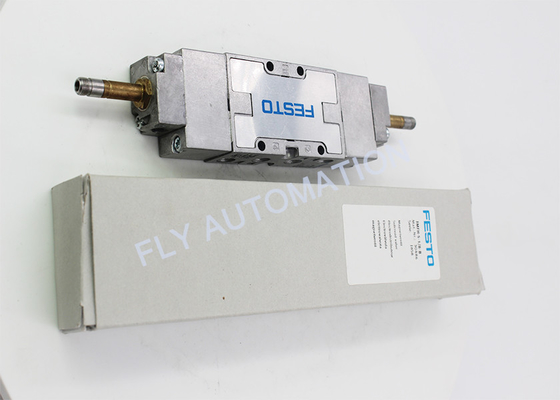

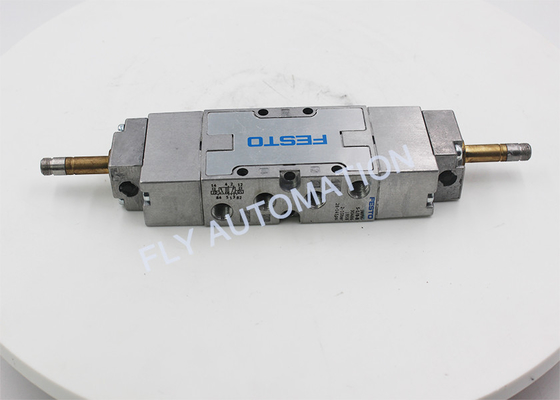

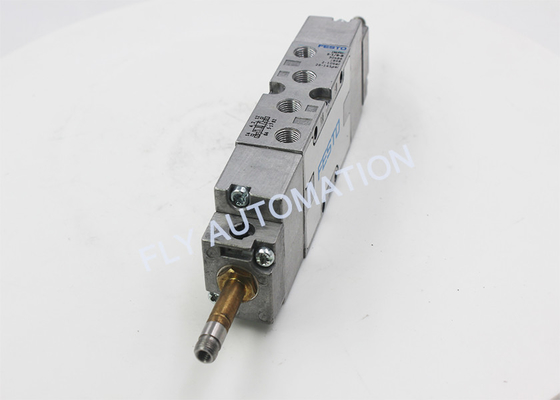

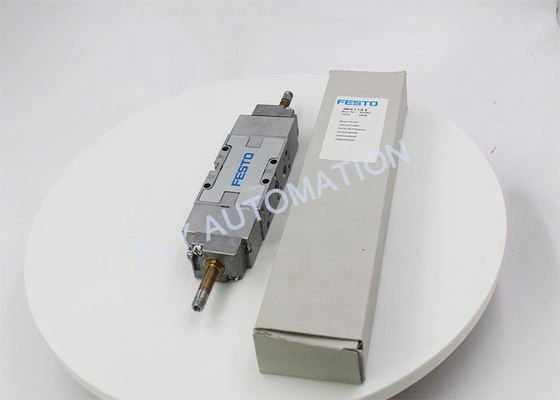

| Ordering Code: JMFH-5-1/8-B 30486 |
| Technical Data: |
| Valve function: 5/2-way double solenoid |
| Type of actuation: Electric |
| Construction width: 26 mm |
| Standard nominal flow rate:1000 l/min |
| pneumatic working port: G1/8 |
| Operating voltage:Via solenoid coil, must be ordered separately |
| Operating pressure:0.2-1 MPa 2-10 bar |
| Design: Piston gate valve |
| Type of reset: Mechanical spring |
| Degree of protection: IP65 |
| Nominal size: 8 mm |
| Exhaust-air function: With flow control option |
| Sealing principle: Soft |
| Mounting position: optional |
| Manual override:Non-detenting |
| Type of piloting: Pilot actuated |
| Flow direction: Non-reversible |
| Symbol: 00991013 |
| Max. positive test pulse with 0 signal: 2200 µs |
| Max. negative test pulse with 1 signal: 3700 µs |
| Characteristic coil data: See solenoid coil, to be ordered separately |
| Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium:Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC: 1 - Low corrosion stress |
| Storage temperature : -40 °C ... 60 °C |
| Media temperature : -10 °C ... 60 °C |
| Ambient temperature: -5 °C ... 40 °C |
| Product weight : 420 g |
| Electrical connection: Via F coil, to be ordered separately |
| Type of mounting: Either On manifold rail or With through-hole |
| Pilot exhaust port 82 ,84: M5 |
| Pneumatic connection, port 1 ,2, 3, 4, 5 : G1/8 |
| Note on materials: RoHS-compliant |
| Material seals: NBR |
| Material housing: Die-cast aluminium |
