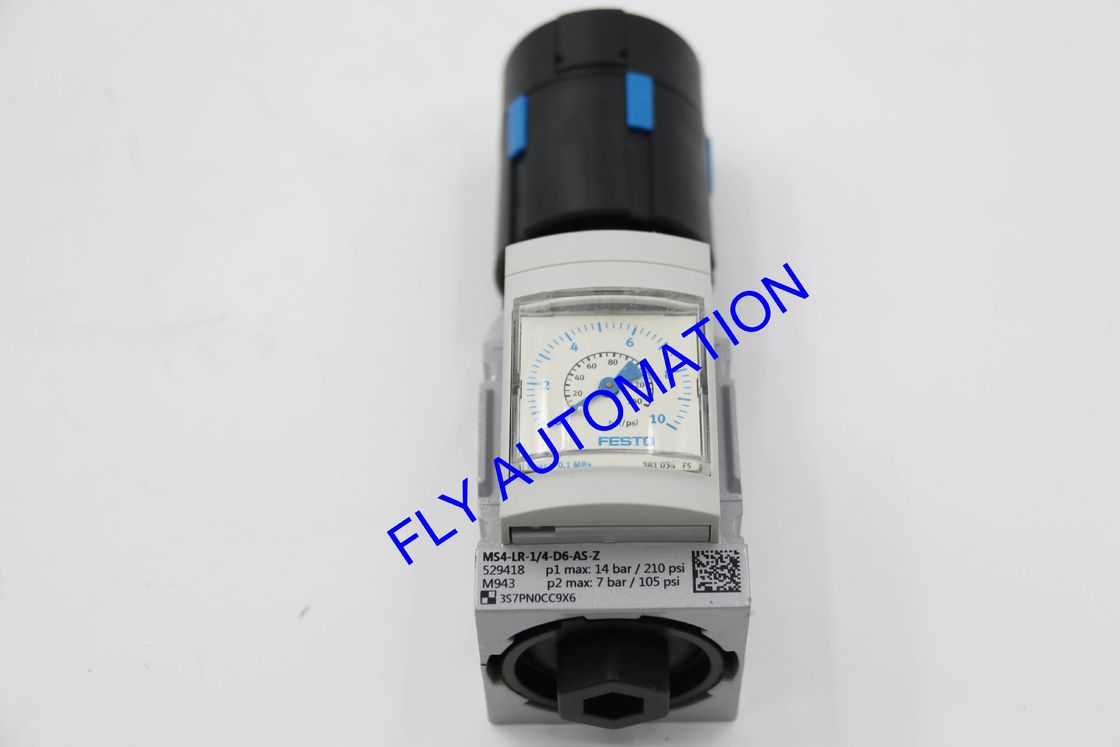

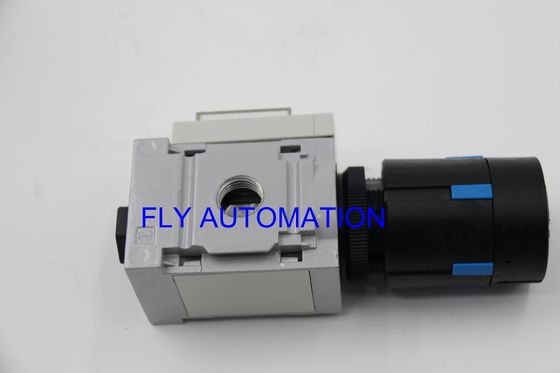

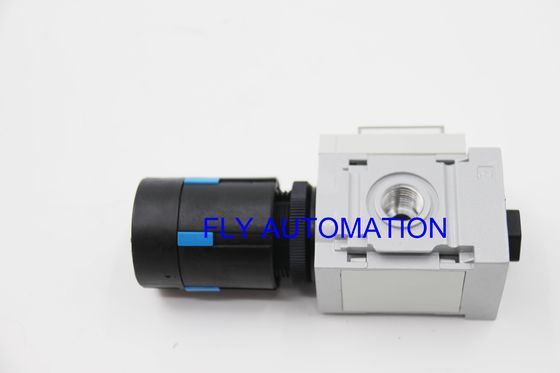

Die Cast Aluminium Festo Pressure Regulator MS4-LR-1 / 4-D6-AS-Z 529418 GTIN4052568085063

quality Die Cast Aluminium Festo Pressure Regulator MS4-LR-1 / 4-D6-AS-Z 529418 GTIN4052568085063 factory
quality Die Cast Aluminium Festo Pressure Regulator MS4-LR-1 / 4-D6-AS-Z 529418 GTIN4052568085063 factory
quality Die Cast Aluminium Festo Pressure Regulator MS4-LR-1 / 4-D6-AS-Z 529418 GTIN4052568085063 factory
quality Die Cast Aluminium Festo Pressure Regulator MS4-LR-1 / 4-D6-AS-Z 529418 GTIN4052568085063 factory

Basic Properties

Place of Origin:China
Brand Name:FESTO
Model Number:MS4-LR-1/4-D6-AS-Z

Trading Properties

Minimum Order Quantity:1pc
Price:EXW USD40-50
Standard Packaging:Plastic bag, Carton
Delivery Time:5-7working days
Payment Terms:T/T, Western Union, Paypal
Supply Ability:500 pcs per month
Specifications
Type: MS4-LR-1/4-D6-AS-Z Part No: 529418
Brand: FESTO Weight: 225g
Series: MS Material Housing: Die-cast Aluminium
Highlight

MS4-LR-1 Festo Precision Regulator

,

MS4-LR-1 Festo Pressure Regulator

,

Die Cast Aluminium Festo Pressure Regulator
Product Description

FESTO Pressure regulator MS4-LR-1/4-D6-AS-Z 529418 GTIN4052568085063

About product

1.Good regulation characteristics with minimal hysteresis and input pressure compensation.

2.High flow rate performance with minimal pressure drop.

3.Available with and without secondary exhausting.

4.Actuator lock to protect the set values from being adjusted.

5.Two pressure gauge connections for different installation options.

6.Return flow option for exhausting from output 2 to output 1 already integrated.

7.Optional pressure sensor.

8.Optional rotary knob pressure gauge.

9.Optional device variant EX4 for use in potentially explosive areas in zones 1, 2, 21 and 22.



technical data



Size 4
Series MS
Mounting position optional
Design Directly actuated diaphragm regulator
Symbol 00991558
Operating pressure 0.8 bar ... 14 bar
Pressure regulation range 0.3 bar ... 7 bar
Max. pressure hysteresis 0.25 bar
Standard nominal flow rate 1800 l/min
LABS (PWIS) conformity VDMA24364-B1/B2-L
Storage temperature -10°C-60°C
Media temperature -10°C-60°C
Ambient temperature -10°C-60°C
Product weight 225 g
Pneumatic connection, port 1 G1/4
Pneumatic connection, port 2 G1/4
Note on materials RoHS-compliant
Material sub-base Die-cast aluminium
Material control panel PA POM
Material seals NBR
Material housing Die-cast aluminium
Material membrane NBR



Package picture

Die Cast Aluminium Festo Pressure Regulator MS4-LR-1 / 4-D6-AS-Z 529418 GTIN4052568085063

There are many models. Please hurry to me!
