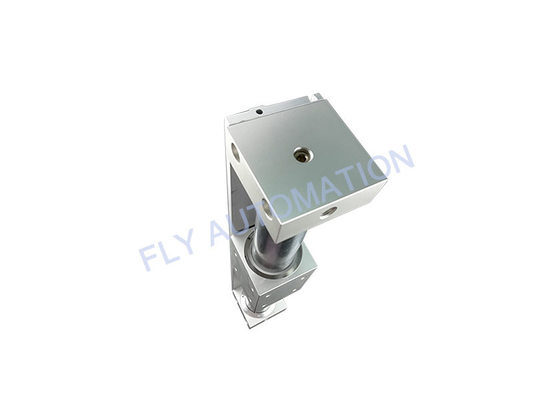

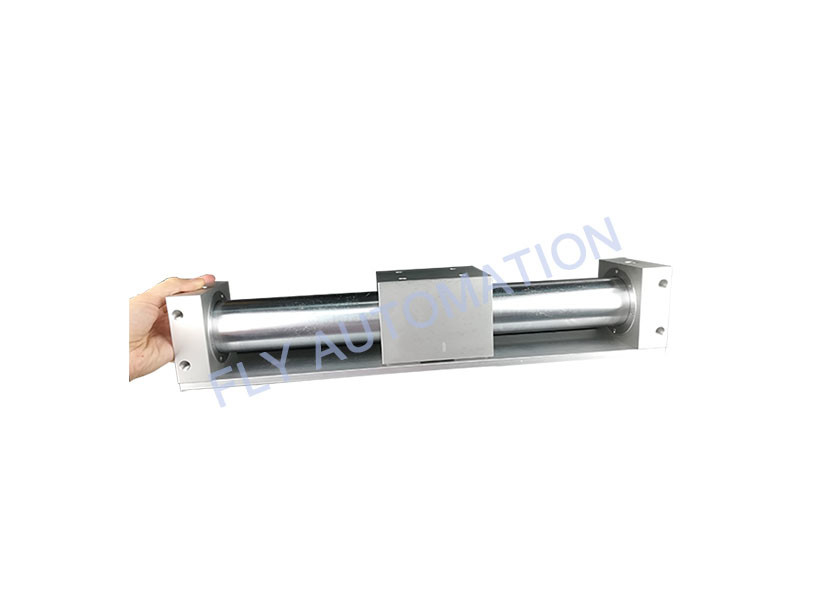

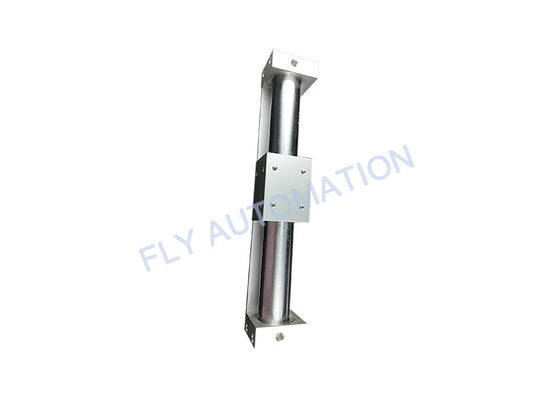

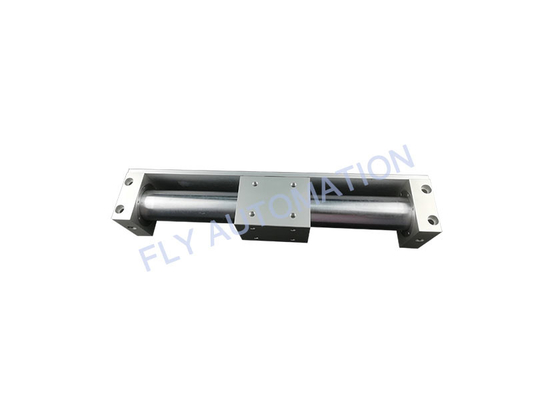

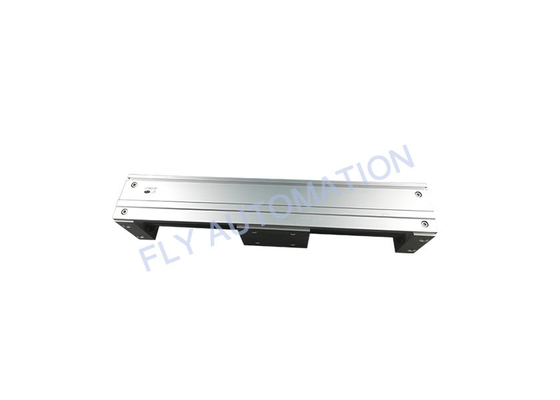

CY1R50H-300 SMC CY1R Series Rodless Cylinder Direct Mount Pneumatic Air Cylinder
| Specifications |
| Fluid |
Air |
| Proof pressure |
1.05MPa |
| Max. operating pressure |
0.7MPa |
| Min. operating pressure |
0.18MPa |
| Ambient & fluid temperature |
-10 to 60℃ |
| Piston speed (1) |
50 to 500mm/s |
| Cushion |
Rubber bumpers at both ends |
| Lubrication |
Non-lube |
| Mounting method |
Direct mounted style |
| Standard Stroke |
Bore size
(mm) |
Standard stroke (mm) |
Max. available
stroke (mm) |
Max. stroke with
switch (mm) |
| 6 |
50, 100, 150, 200 |
300 |
300 |
| 10 |
50, 100, 150, 200, 250, 300 |
500 |
500 |
| 15 |
50, 100, 150, 200, 250, 300
350, 400, 450, 500 |
1000 |
750 |
| 20 |
100, 150, 200, 250, 300, 350
400, 450, 500, 600, 700, 800 |
1500 |
1000 |
| 25 |
2000 |
1500 |
| 32 |
| 40 |
100, 150, 200, 250, 300, 350
400, 450, 500, 600, 700, 800
900, 1000 |
2000 |
1500 |
| Weight(g) |
| Item |
|
6 |
10 |
15 |
20 |
25 |
32 |
40 |
50 |
63 |
Basic weight
(for 0st) |
CY1R( )H
CY1RG( )H
(with switch rail) |
0.09 |
0.111 |
0.277 |
0.440 |
0.660 |
1.27 |
2.06 |
3.59 |
5.45 |
CY1R( )L
CY1RG( ) L
(with switch rail) |
- |
- |
- |
0.330 |
0.570 |
1.12 |
1.88 |
3.29 |
4.95 |
CY1R( )H
(without switch rail) |
0.075 |
0.080 |
0.230 |
0.370 |
0.580 |
1.15 |
1.90 |
3.30 |
5.10 |
CY1R( )L
(without switch rail) |
- |
- |
- |
0.260 |
0.490 |
1.00 |
1.72 |
3.00 |
4.60 |
Additional weight per 50st
(with switch rail) |
0.016 |
0.034 |
0.045 |
0.071 |
0.083 |
0.113 |
0.133 |
0.177 |
0.212 |
Additional weight per 50st
(without switch rail) |
0.004 |
0.014 |
0.020 |
0.040 |
0.050 |
0.070 |
0.080 |
0.095 |
0.120 |
