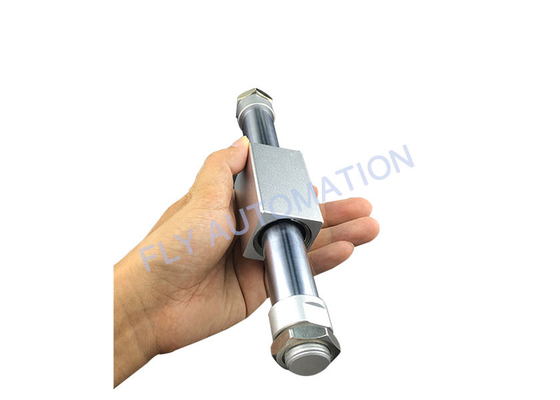

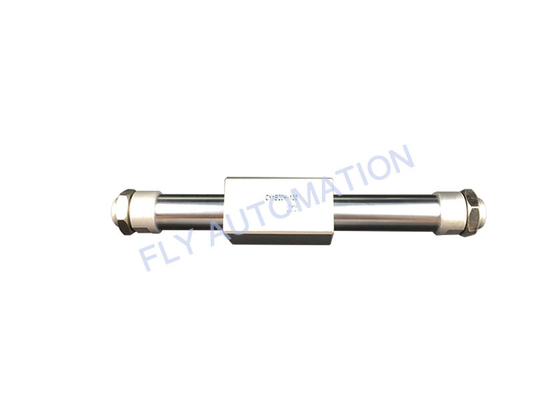

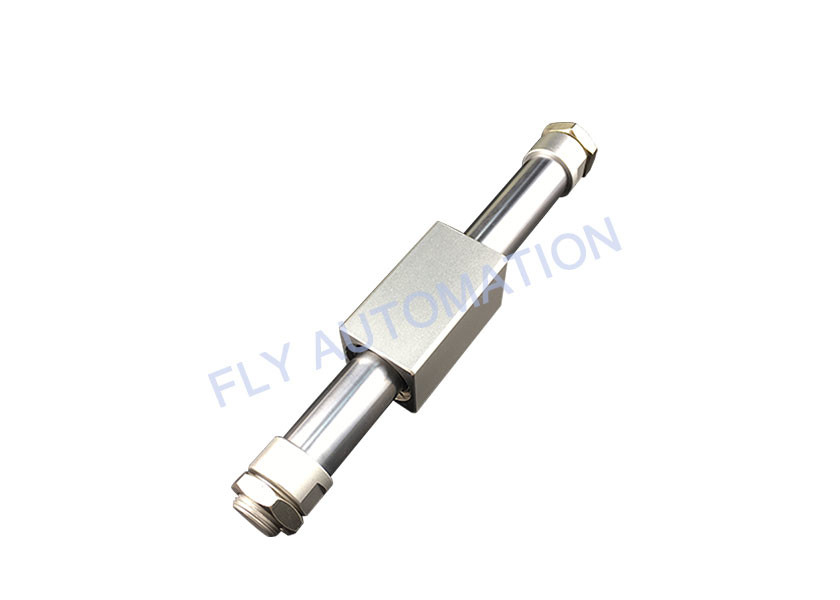

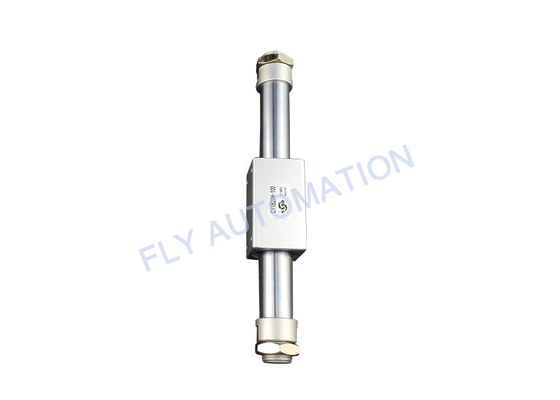

CY1B20H-100 Pneumatic Air Cylinders Magnetically Coupled Rodless SMC Aluminium Alloy

CY1B20H-100 Pneumatic Air Cylinders Magnetically Coupled Rodless SMC Aluminium Alloy

  • CY1B20H-100 Pneumatic Air Cylinders Magnetically Coupled Rodless SMC Aluminium Alloy
  • CY1B20H-100 Pneumatic Air Cylinders Magnetically Coupled Rodless SMC Aluminium Alloy
  • CY1B20H-100 Pneumatic Air Cylinders Magnetically Coupled Rodless SMC Aluminium Alloy
  • CY1B20H-100 Pneumatic Air Cylinders Magnetically Coupled Rodless SMC Aluminium Alloy
  • CY1B20H-100 Pneumatic Air Cylinders Magnetically Coupled Rodless SMC Aluminium Alloy
CY1B20H-100 Pneumatic Air Cylinders Magnetically Coupled Rodless SMC Aluminium Alloy
Product Details:
Place of Origin: CHINA
Brand Name: FLY
Certification: CE
Model Number: CY1B20H-100
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiation

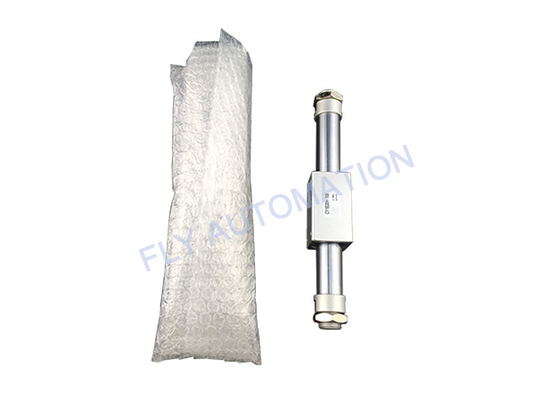

Packaging Details: Plastic bags, boxes, cartons, Pallets or As customer's requirement
Delivery Time: 1-7 work days
Payment Terms: Western Union, T/T, L/C, Paypal, Credit card
Supply Ability: 1000 pieces per 10 working days
Contact Now
Detailed Product Description
Fluid: Air Proof Pressure: 1.05 MPa
Maximum Operating Pressure: 0.7 MPa Minimum Operating Pressure: 0.18 MPa
Ambient And Fluid Temperature: –10 To 60°C Piston Speed: 50 To 400 Mm/s
Cushion: Rubber Bumper On Both Ends Mounting Orientation: Free
High Light:

CY1B20H-100 Pneumatic Air Cylinders

,

Magnetically Coupled Pneumatic Air Cylinders

,

CY1B20H-100 Magnetic Type Rodless Cylinder

CY1B20H-100 Magnetically Coupled Rodless Air Cylinder SMC Aluminium Alloy Cylinder



Specifications
Fluid Air
Proof pressure 1.05 MPa
Maximum operating pressure 0.7 MPa
Minimum operating pressure 0.18 MPa
Ambient and fluid temperature –10 to 60°C
Piston speed 50 to 400 mm/s
Cushion Rubber bumper on both ends
Lubrication Non-lube
Mounting orientation Free
Mounting nuts (2 pcs.) Standard equipment (Accessory)



Principal Parts Material
Description Material Note
Head cover Aluminum alloy Electroless nickel plated
Cylinder tube Stainless steel
Body Aluminum alloy Hard anodized
Magnet Rare earth

CY1B20H-100 Pneumatic Air Cylinders Magnetically Coupled Rodless SMC Aluminium Alloy



Standara Stroke
Bore size (mm) Standara Stroke (mm) Manufacturable Nole)
maximum stroke (mm)
6 50,100,150,200 300
10 50,100,150,200,250,300 500
50 100, 150, 200, 250, 300, 350, 400, 450,500, 600, 700, 800, 900, 1000 6000
63



CY1B20H-100 Pneumatic Air Cylinders Magnetically Coupled Rodless SMC Aluminium AlloyCY1B20H-100 Pneumatic Air Cylinders Magnetically Coupled Rodless SMC Aluminium Alloy

Delivery
1. If the products we have in stock, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNT will be normal ways. If you require use of a courier, we can do it.



Serves time
0:00 - 23:59
From Monday to Sunday



FAQ :
Q: Where is your factory ? Can we visit your factory?
A:Our factory is located in Ningbo City, Zhejiang Province,China, 17kms away from Ningbo Airport. We sincerely welcome customers to visit our company and factory.
Q: Could you add our logo on your products?
A: Yes,if your quantity more than 50pcs. we could add your logo on the products.
Q: How long is your delivery time?
A: Generally it is 1-2 days if the goods are in stock. or it will be 3-5 weeks if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ?
A: Yes, we could offer the sample for free charge, but do not pay the cost of express freight.
Q: What is your payment term and payment way?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment. Payment ways are : T/T, Western Union, Paypal, Alipay.
Q.What’s the shipping way?
A: For small packages, we will choose the door to door express, we cooperated with UPS,DHL,FEDEX,TNT more than 10 years,we gurantee the shipping cost that we offer to you will be the most favorable price among so many suppliers in China. We will send you the tracking number once we got it.
.For big orders, By Air or By Sea through your shipping forwarder is acceptable, if you don't have forwarder in China, we will find the most cost-effective one for you.
