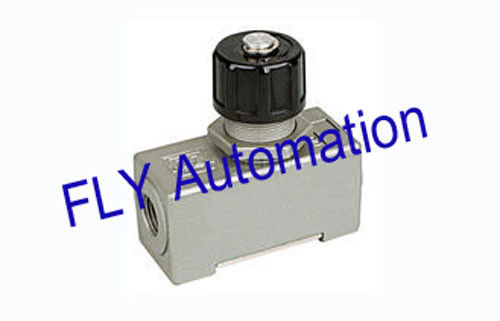

Custom AS-02 One Way Pneumatic Air Flow Control Valves Aluminum Alloy

Custom AS-02 One Way Pneumatic Air Flow Control Valves Aluminum Alloy

  • Custom AS-02 One Way Pneumatic Air Flow Control Valves Aluminum Alloy
Custom AS-02 One Way Pneumatic Air Flow Control Valves Aluminum Alloy
Product Details:
Place of Origin: China
Brand Name: FLY or OEM
Certification: CE
Model Number: AS-02
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: USD2-4
Packaging Details: Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Delivery Time: within 1-30 working days after payment
Payment Terms: T/T , Western Union
Supply Ability: 1000 pcs
Contact Now
Detailed Product Description
High Light:

one way air flow valve

,

air flow control valve


Custom AS-02 One Way Pneumatic Air Flow Control Valves Aluminum Alloy
AS Series Large flow rate control throttle check valve port size G1/4~G1/2 e.g AS-02 SMC Equvalent



Quick Detail:


1.AS Series flow control throttle Check valve
2.Flow direction one way type

3.Directly pipe joint mounting,easy and convenient

4.Body Material Aluminum Alloy
5.Port Size G1/4”,G3/8,G1/2”
6.Compact design,small volume,light weight
7.Easy operation,sensitive of Respond
8.High regulating accuracy
9.Large controll flow rate up to 1670L/Min
10.Long serive life




Applications:

AS Series flow control Non-return valve widely use in the pneumatic system to adjust the working flow rate to meet with the functional requirement of pneumatic system.
AS series flow throttle valve use for control cylinder speed,system time delay,Lubricator low oil Volume,air cushion capacity of cylinder etc.




Specifications:


ORDERING CODE

AS

02

Type

Port Size

AS:AS Series Large flow type Throttle check valve

02:G1/4"

03:G3/8"

04:G1/2




SPECIFICATION

Model no

AS-02

AS-03

AS-04

Working Medium

Compressed 40 Micron Filtered Air

Body Material

Aluminum Alloy

Port Size

G1/4"

G3/8"

G1/2"

Working Pressure

0.05~1.0MPa

Controlled And Free flow

1670L/min

Effective Sectional Area

25.5mm²

Operating Temperature

5~60℃



Custom AS-02 One Way Pneumatic Air Flow Control Valves Aluminum Alloy
