| Liandong-U-Gu 17-2#, Shengyuan Road 1#, Jiangkou Street, Fenghua District, Ningbo City, Zhejiang Province, China | airwolf@flyautomatic.com |
 |
| Place of Origin: | China |
| Brand Name: | FLY/AIRWOLF or OEM |
| Certification: | ISO 9001,CE |
| Model Number: | CA-25MM,RCA-25MM |
| Minimum Order Quantity: | 10 |
|---|---|
| Packaging Details: | carton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T |
| Supply Ability: | 2000 pcs/month |
| Highlight: | pulse solenoid valve,pulse jet valve |
||
|---|---|---|---|

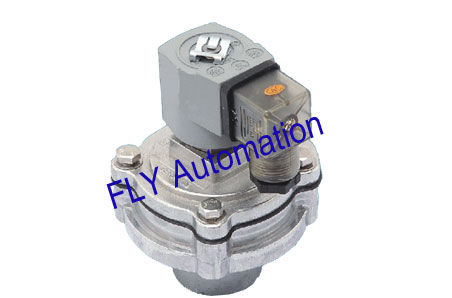

CA-25MM, RCA-25MM MM Series Aluminum Diecast FLY/AIRWOLF RCA Pilot Pulse Jet Valves
| Ordering Code | Port Size | Orifice | Flow Value | |
| G Threaded | mm | Kv | Cv | |
| CA25MM/RCA25MM | 1" | 25 | 26 | 30 |
| CA40MM/RCA40MM | 1 1/2" | 40 | 44 | 51 |
| CA50MM/RCA50MM | 2" | 50 | 76 | 88 |
| CA62MM/RCA62MM | 2 1/2" | 62 | 150 | 162 |
| CA76MM/RCA76MM | 3" | 76 | 200 | 233 |
| Construction | |
| Body | Aluminum (Diecast) |
| Washer | SS 304 |
| Armature | SS 430FR |
| Core and Plugnut | Stainless steel |
| Core Spring | SS 304 |
| Sealing & disc | NBR(nitrile/buna-n) |
| Screws | SS302 |
| Diaphragm | PA-6(Standard), fluororubber |
| Shading coil | Copper |
| Connector | DIN43650A |
| Voltage | DC: 24V, AC: 24V, 48V, 110V, 230V |
| Working Temperature | -20 to +85℃ Nitrile seals -29 to +232℃ fluororubber seals |
| Protection Class | IP65 |
| Coil Insulation Class | F |
| Working Pressure | 0.35-0.85Mpa |
| Recommended on time range | 50-500ms |
| Recommended time between pulses | 1 minute or Less |
