| Place of Origin: | ITALY CHINA |
| Brand Name: | ATOS |

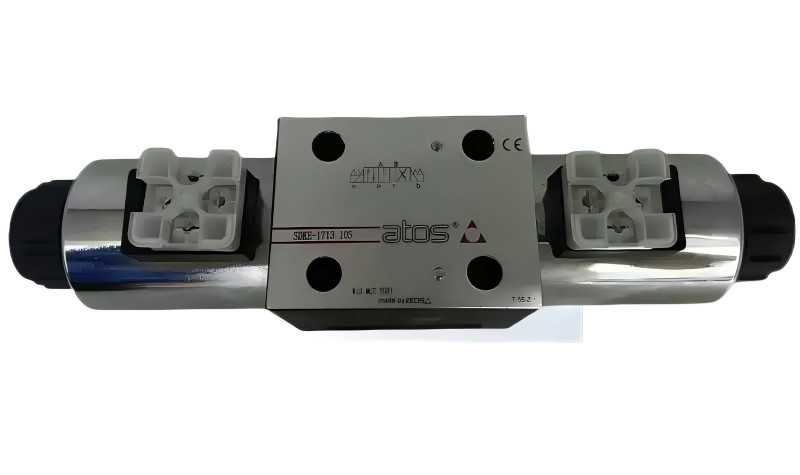

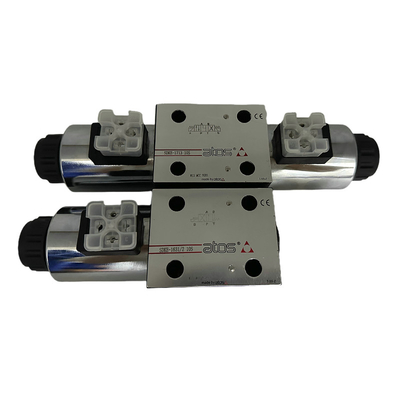

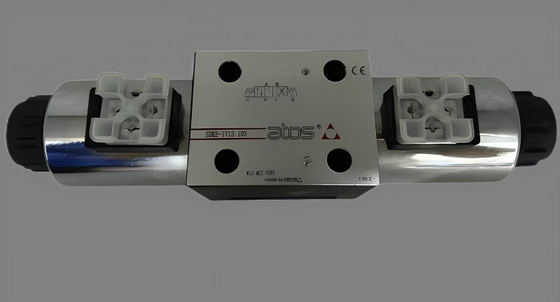

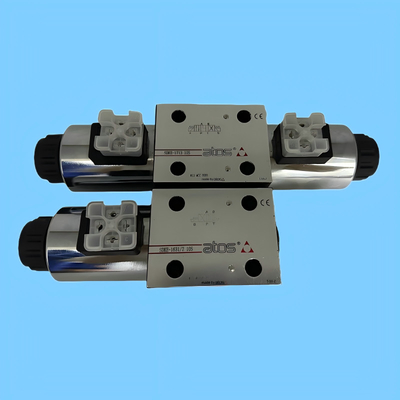

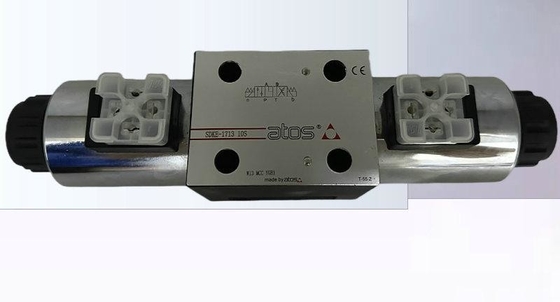

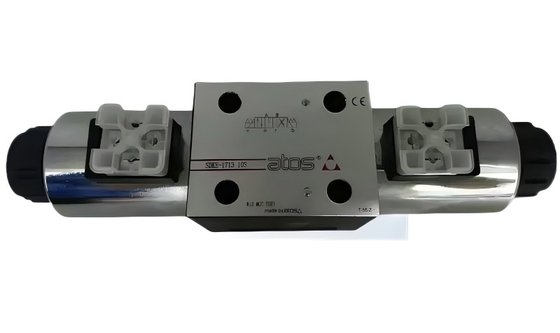

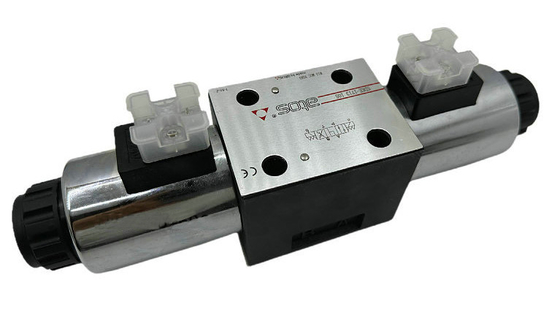

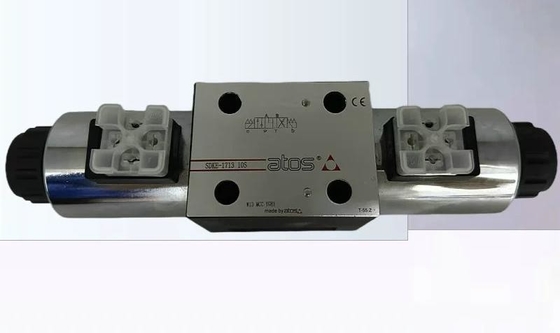

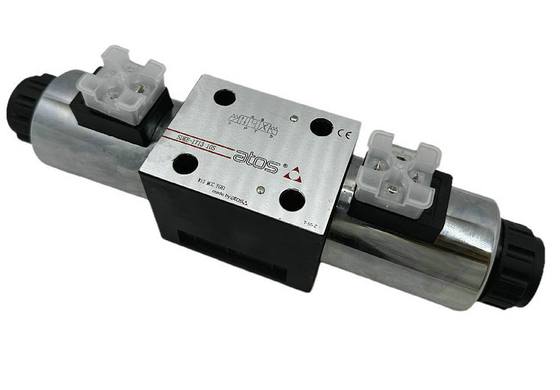

| Model Number: | SDKE-1713 10S SDKE-1751/2 10S SDKE-1711 10S SDKE-1715 10S SDKE-1710 10S SDKE-1716 10S SDKE-1714 10S |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 45-168USD |
| Packaging Details: | poly bags, box, cartons, pallets |
| Delivery Time: | 3-12working days |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 500 pcs per week |
| Max Pressure: | 35Mpa | Allowable Tank Port Back Pressure: | 20. 6MPa |
|---|---|---|---|
| Coil Type: | D24:DC24V A24:AC24V A11: AC110V A38:AC380V RA1:AC110V RA2:AC220V D12: DC12V A22:AC220V | Terminations: | DG: DIN43650 DL: Lead Wires(2) |
| Insulation Class: | H 180℃ | Voltage: | 90 %V At Rated Voltage |
| Power Consumption: | DC 28-31W AC: 19-26W | Fluids-Temperatures: | -40-120℃ |
| Mounting Surface: | ISO 4401 Size 10 | Protection Degree To DIN EN 60529: | IP65 |
| Highlight: | Direct Operated Double solenoid directional valves,35Mpa solenoid directional valves,ATOS solenoid operated directional control valve |
||
| Assembly position / location | Any position for all valves except for type- 170* (without springs) that must be instaed with hori- zontal axis if operated by impulses | ||
| Subplate surface finishing | Roughness index Ra 0,4 - flatness ratio 0,01/100 (ISO 1101) | ||
| MTTFd values according to EN ISO 13849 | 150 years, for further details see technical table P007 | ||
| Ambient temperature | Standard execution = -30°C +70°C /PE option = -20°C-+ 70°C /BT option = -40°C- +70°C | ||
| Seals, recommended fluid temperature | NBR seals (standard) = -20C + +80*C, with HFC hydraulic fluids = -20*C +50C FKM seals (/PE option)= -20°C + +80C HNBR seals (/BT option)= -40°C - +60°C, with HFC hydraulic fluids= -40°C to +50°C | ||
| Recommended viscosity | 15-100 mm2/s - max allowed range 2.8 + 500 mm2/s | ||
| Max fluid contamination level | IS04406 class 20/18/15 NAS1638 class 9, see also fliter section at www.atos .com or KTF Ccatalog | ||
| Hydraulic fluid | Suitable seals type | Classification | Ref. Standard |
| Mineral oils | NBR, FKM, HNBR | HL, HLP, HLPD, HVLP, HVLPD | DIN 51524 |
| Flame resistant without water | FKM | HFDU, HFDR | ISO 12922 |
| Flame resistant with water | NBR, HNBR | HFC | |
| Flow direction | As shown in the symbols of table | ||
| Operating pressure | Ports P ,A,B: 350 bar; Port T210 bar for DC version (250 bar with option M); 160 bar for AC version | ||
| Rated flow | See diagrams Q/Ap at section | ||
| Maximum flow | 150 l/min, see operating limits at section | ||
