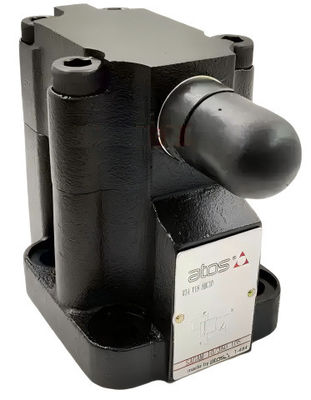

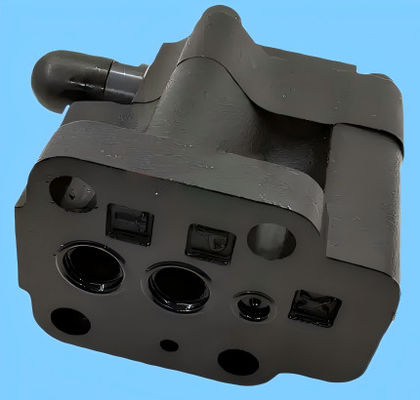

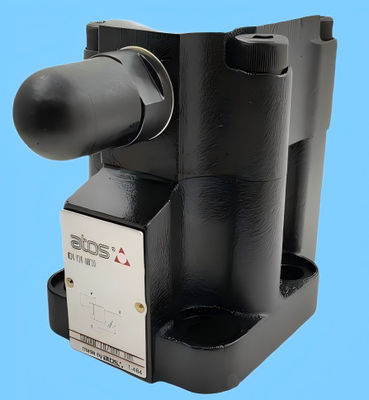

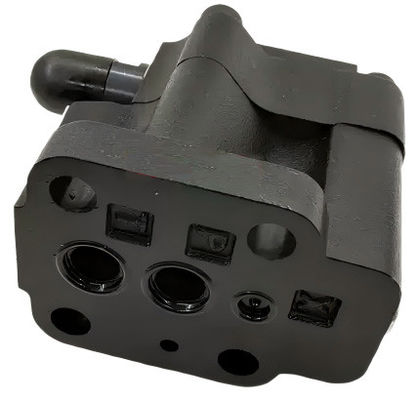

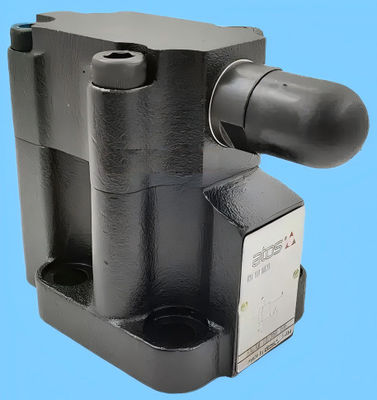

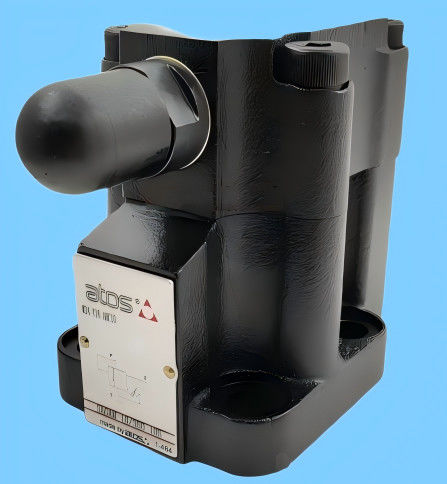

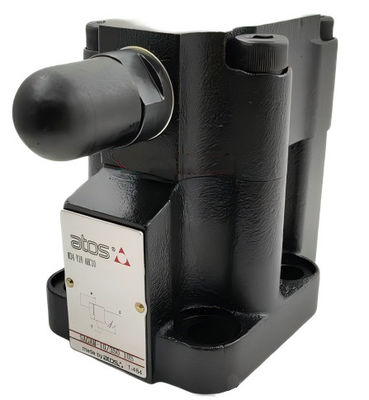

ATOS SAGAM DC24V ISO 6264 350bar Pressure relief valve SAGAM-10/350 10S SAGAM-20/50 10S
Order codes:
SAGAM-10/350 10S
SAGAM-10/50 10S
SAGAM-20/100 10S
SAGAM-10/210 10S
SAGAM-20/350 10S
SAGAM-20/50 10S
SAGAM-10/100 10S
SAGAM-20/210 10S
SAGAM are two stage pressure relief valves
with balanced poppet , designed to operate in oil hydraulic systems.
two stage, subplate mounting - ISO 6264 size 10, 20 and 32
In standard versions the piloting pressure of the poppet 1 of the main stage 2 is regulated by means of a grub screw protected by cap 3 in the cover 4 .
Optional versions with setting adjustment by handwheel 5 instead of the grub screw are available on request.
Clockwise rotation increases the pressure.
SAGAM can be equipped with a SDHE pilot
solenoid valve 6 for venting
Mounting surface: ISO 6264 size 10, 20 and 32
Max flow: 200, 400 and 600 l/min
Max pressure up to 350 bar
Setting Pressure: 50; 100; 210; 350 Bar
Pressure range [bar]: 4+50; 6+ 100; 7+210; 8+ 350
Protection degree to DIN EN 60529: IP65
Relative duty factor: 100%
Supply voltage tolerance: 土10%
HYDRAULIC CHARACTERISTICS:
| Valve model | SAGAM-10 | SAGAM-20 | SAGAM-32 |
| Setting [bar] | 50; 100; 210; 350 |
| Pressure range [bar] | 4+50; 6+ 100; 7+210; 8+ 350 |
| Max pressure [bar] | ports P,X= 350 Ports T, Y = 210 (without pilot solenoid valve) For version with pilot solenoid valve, see technical tables SHE015 |
| Max flow [/min] | 200 | 400 | 600 |
MAIN CHARACTERISTICS, SEALS AND FLUIDS - for other fluids not included in below table, consult our technical office:
| Assembly position | Any position |
| Subplate suface finishing | Roughness index Ra 0,4 - flatness ratio 0,01/100(ISO 1101) |
| Ambient temperature | Standard execution = -30C+ +70°C /PE option = -20°C+ +70°C /BT option = -40°C+ +70°C |
| Seals, recommended fluid temperature | NBR seals (standard)= -20°C+ +80°C, with HFC hydraulic fluids = -20°C +50°C FKM seals (/PE option)=-20°C+ +80°C HNBR seals (/BT option)= -40°C+ +60°C, with HFC hydraulic fluids= -40°C+ +50°C |
| Recommended viscosity | 15+100 mm2/s - max allowed range 2,8 + 500 mm/s |
| Max fluid contamination level | ISO4406 class 20/18/15 NAS1638 class 9, see also filter section at www .atos.com or KTF catalog |
| Hydraulic fluid | Suitable seals type | Classification | Ref. Standard |
| Mineral oils | NBR, FKM, HNBR | HL, HLP, HLPD, HVLP, HVLPD | DIN 51524 |
| Flame resistant without water | FKM | HFDU, HFDR | ISO 12922 |
| Flame resistant with water | NBR, HNBR | HFC |
Coils characteristics (for SAGAM with solenoid venting valve):
| Insulation class | Due to the occuring surface temperatures of the H (180°C) for DC coils F (155°C) for AC coils solenoid coils, the European standards ENISO 13732-1 and EN ISO 4413 must be taken into account |
| Protection degree to DIN EN 60529 | IP 65 (with connectors 666,667, 669 correctly assembled) |
| Relative duty factor | 100% |
| Supply voltage and frequency | See electric feature |
| Supply voltage tolerance | 土10% |
| Certification | cURus North American standard |
ELECTRIC FEATURES FOR SAGAM WITH SOLENOID VALVE:
