Liandong-U-Gu 17-2#, Shengyuan Road 1#, Jiangkou Street, Fenghua District, Ningbo City, Zhejiang Province, China | airwolf@flyautomatic.com |
Place of Origin: | China |
Brand Name: | FLY/AIRWOLF |
Certification: | CE |
Model Number: | EF8320G174 |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | Negotiation |
Packaging Details: | Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement |
Delivery Time: | within 1-30 working days after payment |
Payment Terms: | T/T , Western Union |
Supply Ability: | 1000 pcs |
Model Code: | EF8320G174 | Working Press: | 2-10 Bar |
---|---|---|---|
Working Temp.: | -25 °C To +60 °C | Port Size: | 1/4" NPT |
High Light: | pulse solenoid valve,pneumatic diaphragm valves |
FEATURES
1. All NPT connections are in the valve body to allow in-line piping
2. No Minimum Operating Pressure Differential required
3. Broadest range of applications
4. Mountable in any position
Electrical characteristics
Coil insulation class | F |
Connector specification | DIN 43650, 11 mm, industry, standard B (type 01) or ISO 4400 (type 02) |
Connector | Spade plug (cable Ø 6-8 mm or Ø 6-10 mm) |
Electrical safety | IEC 335 |
Standard voltages | DC (=) : 24V AC (~) : 24V - 115V - 230V / 50 Hz |

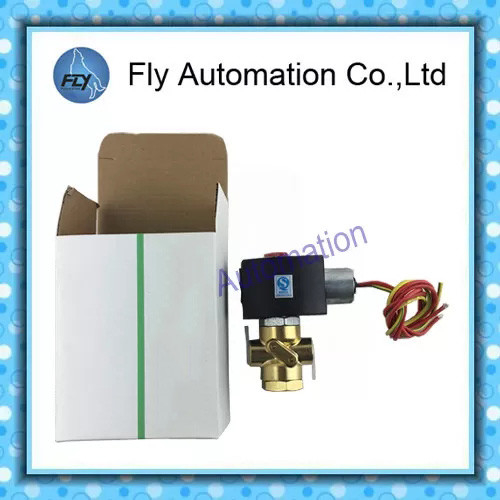

Pictures and details
Solenoid Enclosures
Standard: Watertight, Types 1, 2, 3, 3S, 4, and 4X.
Optional: Explosionproof and Watertight, Types 3, 3S, 4, 4X, 6, 6P, 7, and 9. (To order, add prefix “EF” to the catalog number.)
Nominal Ambient Temp. Ranges
AC: 32°F to 125°F (0°C to 52°C)
DC: 32°F to 104°F (0°C to 40°C)
Note: Some stainless steel constructions are rated -40°F (-40°C).
Approvals
CSA certified. UL listed General Purpose Valves. Meets applicable CE directives.
SIL 3 capable per IEC 61508 on normally closed const.
Third party certification provided by EXIDA.
Refer to Engineering Section for details.
ATEX/IECEx certified with prefix “EV” as listed.
Refer to Optional Features Electrical Section for details.
Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.
Competitive Advantage
Our product features | Our Services Guarantee: |
1) Competitive price | 1) Prompt respond (Reply with 24 hours) |
2) Good quality | 2) Free Samples (Customer pay for the delivery cost) |
3) Professional Packaging | 3) Registration support. |
4) Produce according to Customers’ instruction | 4) Photos/videos are available during production. |
5) None delay shipment | 5) Loading inspection, and send loading photos before shipment. |
After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
Warranty
All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
Contact Person: Jaren
Tel: 0086-15257858856
Fax: 86-152-57858856
