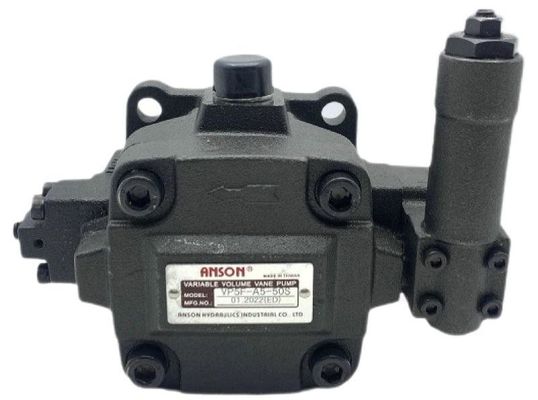

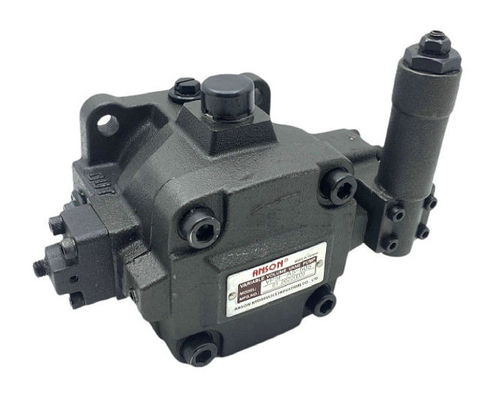

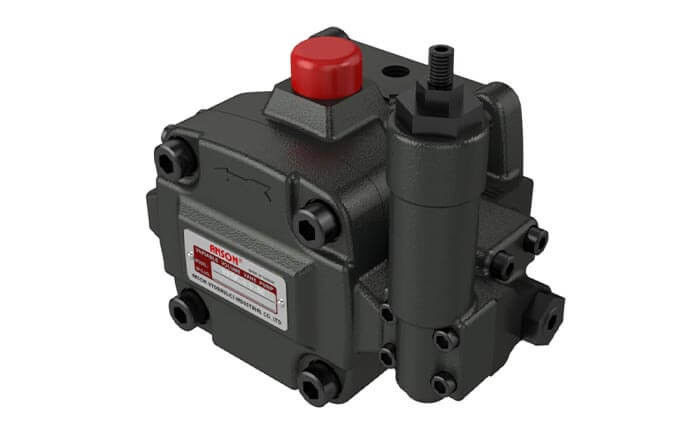

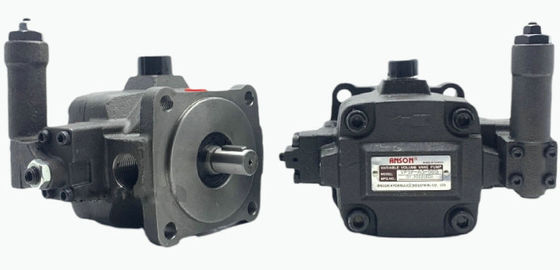

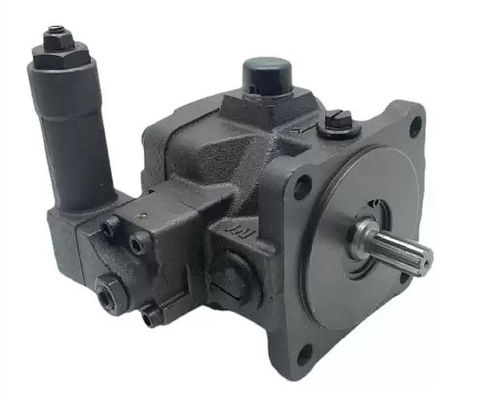

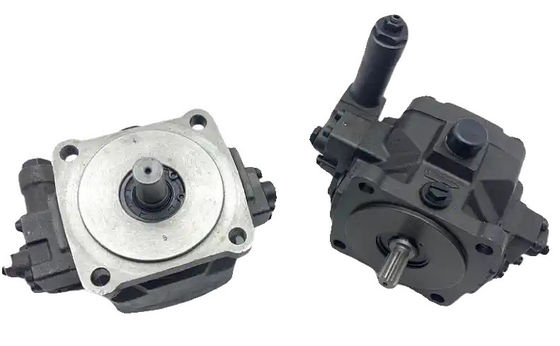

ANSON Variable Displacement VP5F Vane Single Pumps VP5F-A5-50S VP5F-A5-50 VP5F-A4-50S

Product Details:

Place of Origin:	China Taiwan
Brand Name:	ANSON
Model Number:	VP5F-A5-50S VP5F-A5-50 VP5F-A4-50S VP5F-A4-50 VP5F-A3-50S VP5F-A3-50 VP5F-B5-50S VP5F-B5-50 VP5F-B4-50S VP5F-B4-50 VP5F-B3-50S VP5F-B3-50

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	35-55USD
Packaging Details:	poly bags, box, cartons, pallets
Delivery Time:	3-12working days
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	500 pcs per week

Contact Now

Detailed Product Description

Standard Pressure:	103.5 Bar (1500 PSI) AC 207 Bar (3000 PSI) DC	Body Material:	Carbon Steel
Shift Type:	Soft	Mounting Type:	Flange
Outlet Flow:	8-40L/min	Pressure Range:	8-70Bar
Shafts:	Woodruff Key 8(12), 15-40 Splined Shafts	Splined Standard:	ANSI B92.1 CLASS 5
Highlight:	VP5F Vane Single Pumps , VP5F-A5-50S Vane Single Pumps , ANSON Vane Single Pumps

ANSON Variable Displacement VP5F Vane Single Pumps VP5F-A5-50S VP5F-A5-50 VP5F-A4-50S

Ordering Codes:

VP5F-A5-50S VP5F-A5-50 VP5F-A4-50S
VP5F-A4-50 VP5F-A3-50S VP5F-A3-50
VP5F-B5-50S VP5F-B5-50 VP5F-B4-50S
VP5F-B4-50 VP5F-B3-50S VP5F-B3-50

VP5F	-A		5		-51	S
Code	Outlet flow		Operating pressure range		Design	Shafts code
Frame size	(at 3.5bar,1800 r/min)		Operating pressure range
	A	B	Code	Pressure range
	Outlet Flow L/min	Outlet Flow L/min		(bar)
	(Geometric displacement cm3/rev)	(Geometric displacement cm3/rev)
VP5F	30 (16)	40 (22)	2	15~35	51	Omit:
						Woodruff key (VP5)
						Straight key (VP6~7)
VP6F	54 (30)	70 (39)	3	20~70
VP7F	120 (67)	-	4	50~105
F:	Factory setting Q max.		5	70~140		S:
Flange mounting	Factory setting Q max.		Factory setting P min.			Splined Shaft

ANSON Variable Displacement VP5F Vane Single Pumps VP5F-A5-50S VP5F-A5-50 VP5F-A4-50S
