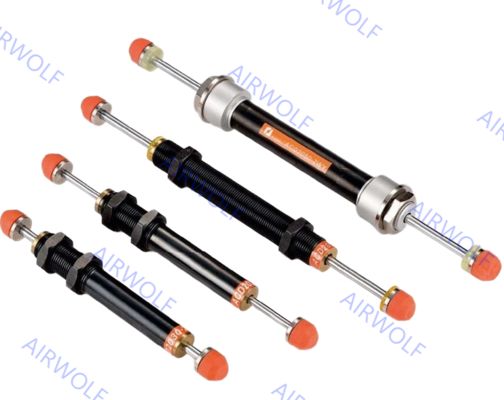

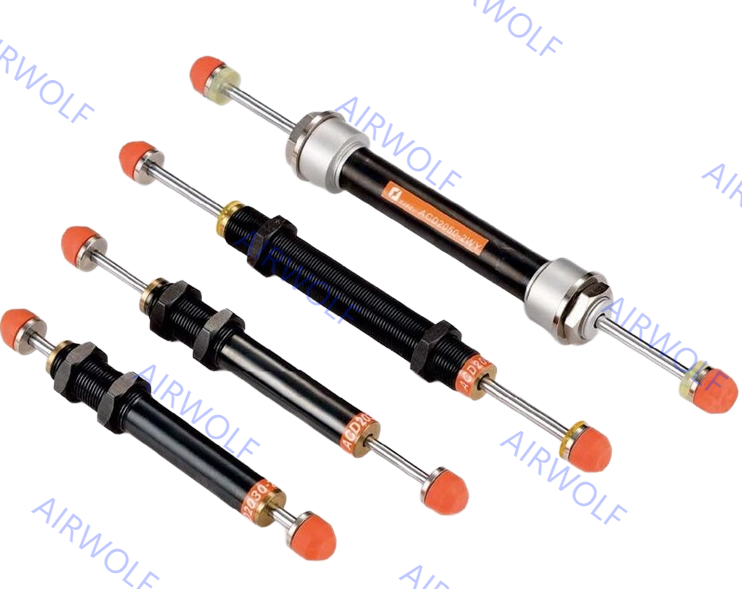

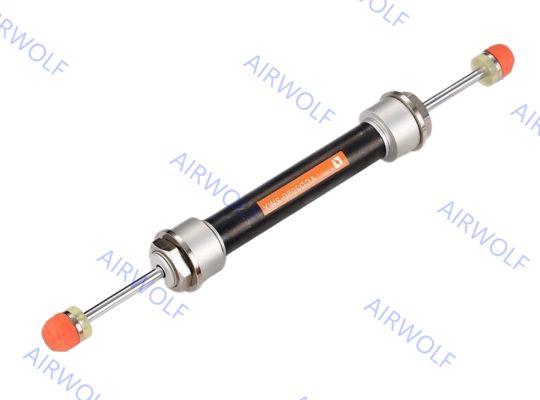

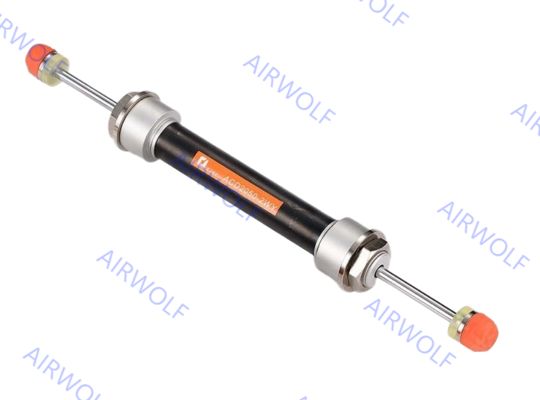

ACD2050-2(WY) CJAC ACD Series Two-way Damper Shock Absorber

ACD2050-2(WY) CJAC ACD Series Two-way Damper Shock Absorber

Product Details:
Place of Origin: Taiwan, China, China
Brand Name: CJAC, AIRWOLF or OEM
Model Number: ACD2050-2(WY)
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: 12-14USD
Packaging Details: Boxes, Cartons, Pallets, Plastic bags
Delivery Time: 1-7 work days
Payment Terms: T/T,Western Union,Paypal
Supply Ability: 1000 pcs per week
Contact Now
Detailed Product Description
Outer Pipe Material: AISI1215 And STKM11A Oxidized Black,nickel Plating Treatment Piston Rod Material: Hard Chromium Plating Treatment
Working Temperature Range: -10~+80℃ Function: Impact Protection, Shock Absorption
Working Medium: ​Hydraulic Oil​​ Speed Range: 1.0~3.5m/s
Highlight:

1.0~3.5m/s speed range Shock Absorber

,

-10~+80℃ working temperature range Damper

,

Two-way buffer structure Two-way Damper

ACD2050-2(WY) CJAC ACD Series Two-way Damper Shock Absorber

The ACD series adopt a two-way buffer structure, so they have different damping effects at both ends. They are suitable for high-speed places, and they are commonly used in mechanical arms to eliminate equipment noise and vibration, which can greatly improve the operating speed of the robotic arm.

Order Code:


ModelThreadStroke (mm)A (mm)B (mm)C (mm)D (mm)E1 (mm)E2 (mm)F (mm)H (mm)I (mm)M (mm)
AD2050-2(WY)M20x1.550313.8172.817.8620.520.512.526732

ACD2050-2(WY) CJAC ACD Series Two-way Damper Shock Absorber

Specification:


ModelStroke (mm)Maximum absorbed energy Nm(Er)Absorbed energy per hour Nm(Er)Maximum effective weight kg(Me)Highest impact speed m/s(v)Weight (g)
ACD2050-2(WY)507072,0005303.5470
Quality Standards:

The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections.

Samples:

You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.

After-sale service:

We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

Competitive Advantage:
Our product features:Our Services Guarantee:
1) Competitive price1) Prompt respond (Reply with 24 hours)
2) Good quality2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging3) 1 year warranty
4) Produce according to Customers’ instruction4) Photos/videos are available during production.
5) None delay shipment5) Loading inspection, and send loading photos before shipment.
