Name: AC2530-2, AC2540-2, AC2550-2, AC2580-2, AC3660-2 CJAC AC Series Shock Absorber
Brand: Airwolf Automation
SKU: AC2530-2, AC2540-2, AC2550-2, AC2580-2, AC3660-2
Price: 7.00 USD
Availability: InStock

Home Products Pneumatic Air Cylinders

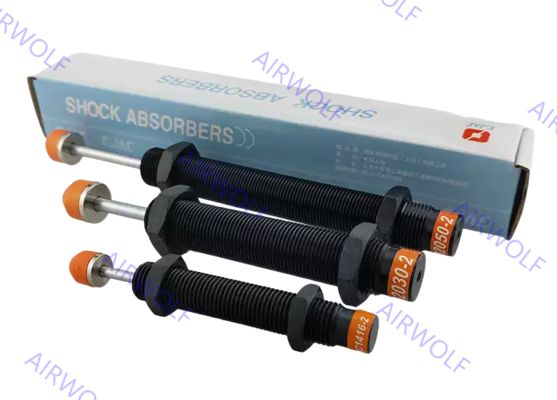

AC2530-2, AC2540-2, AC2550-2, AC2580-2, AC3660-2 CJAC AC Series Shock Absorber

Product Details:

Place of Origin:	Taiwan, China, China
Brand Name:	CJAC, AIRWOLF or OEM
Model Number:	AC2530-2, AC2540-2, AC2550-2, AC2580-2, AC3660-2

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	4-11USD
Packaging Details:	Boxes, Cartons, Pallets, Plastic bags
Delivery Time:	1-7 work days
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	1000 pcs per week

Contact Now

Detailed Product Description

Item Code:	AC2530-2, AC2540-2, AC2550-2, AC2580-2, AC3660-2	Outer Pipe Material:	AISI1215 And STKM11A Oxidized Black,nickel Plating Treatment
Piston Rod Material:	Hard Chromium Plating Treatment	Working Temperature Range:	-10~+80℃
Function:	Impact Protection, Shock Absorption	Speed Range:	1.0~2.5m/s
Highlight:	CJAC AC Series shock absorber , Pneumatic air cylinder shock absorber , AC Series shock absorber with warranty

AC2530-2, AC2540-2, AC2550-2, AC2580-2, AC3660-2 CJAC AC Series Shock Absorber

The CJAC AC Series is a line of industrial shock absorbers, or oil pressure buffers, engineered to provide automatic compensation for kinetic energy in machinery. Designed for fixed constructions, these devices utilize specialized oil holes and alignment to maintain linear deceleration across a wide range of applications, from high-speed light loads to low-speed heavy loads, without requiring manual adjustment. Key technical specifications include an operating temperature range of -10°C to +80°C and an effective impact speed range of 0.1 m/s to 5.0 m/s, depending on the model. They are constructed with durable materials such as an AISI1215 outer pipe with nitriding treatment for rust resistance and a hard chromium-plated piston rod for longevity, making them suitable for harsh industrial environments.

Order Code:

Item Code	A(mm)	B(mm)	D(mm)	F(mm)
AC2530-2	160	111	8	101
AC2540-2	214	127	8	117
AC2550-2	239.5	170.5	8	100
AC2580-2	336	237	8	100
AC3660-2	248	162	10	134

AC2530-2, AC2540-2, AC2550-2, AC2580-2, AC3660-2 CJAC AC Series Shock Absorber

Specifications:

Model	AC2530-2	AC2540-2	AC2550-2	AC2580-2	AC3660-2
Stroke(mm)	30	40	50	80	60
Maximum absorbed energy (Nm(Et))	92	120	135	150	250
Absorbed energy per hour (Nm(Etc))	62100	75000	90000	120000	120000
Maximum effective weight (Kg(Me))	900	1200	900	600	24000
Highest impact speed (m/s(v))	2.0	2.5	2.5	2.5	1.0
Thread	M25x1.5	M25x1.5 *M25x2.0	M25x1.5 *M25x2.0	M25x1.5 *M25x2.0	M36x1.5

Quality Standards:

The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections.

Samples:

You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.

After-sale service:

We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

Competitive Advantage:

Our product features:	Our Services Guarantee:
1) Competitive price	1) Prompt respond (Reply with 24 hours)
2) Good quality	2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging	3) 1 year warranty
4) Produce according to Customers’ instruction	4) Photos/videos are available during production.
5) None delay shipment	5) Loading inspection, and send loading photos before shipment.
