| Place of Origin: | Ningbo |
| Brand Name: | Airtac or OEM |
| Certification: | CE, ISO9001 |

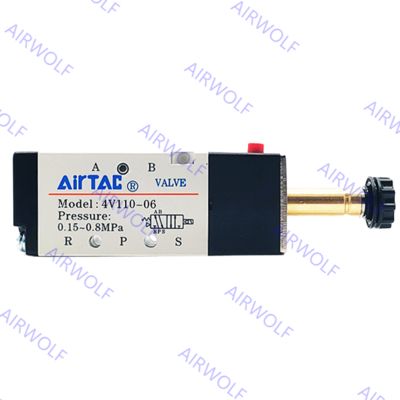

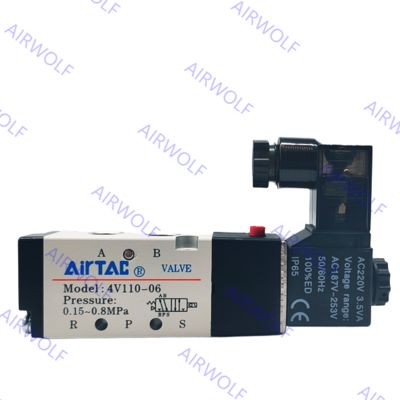

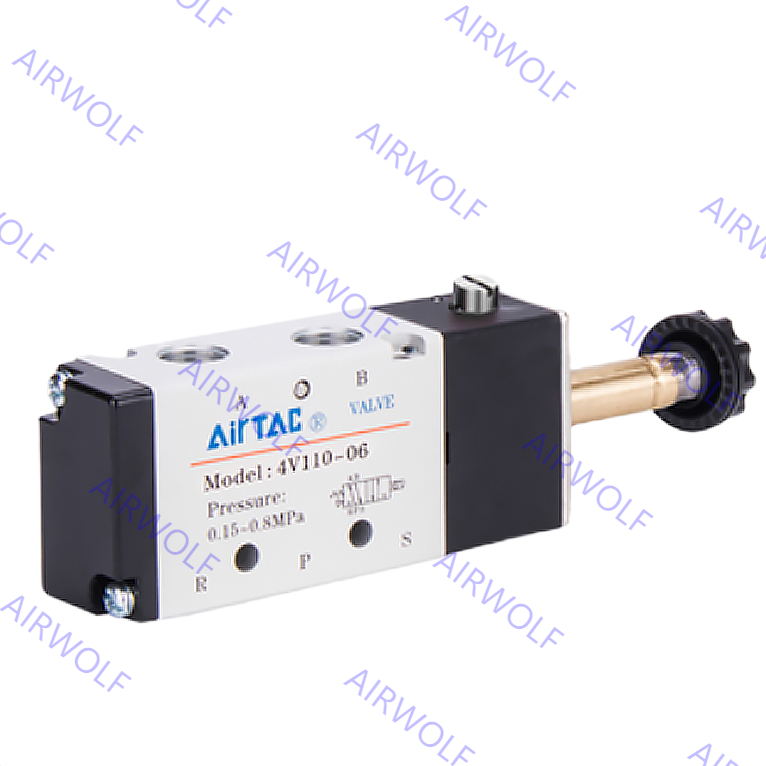

| Model Number: | 4V110-05 4V110-06 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD2.2-4 |
| Packaging Details: | box,carton,pallet or according to customers' requirement |
| Delivery Time: | 3 working days after receiving the customers' payment |
| Payment Terms: | T/T,Western Union,L/C,Paypal |
| Supply Ability: | 10000 pcs per month |
| High Light: | pulse solenoid valve,pneumatic diaphragm valves |
||
|---|---|---|---|
Features:
1.Pilot-oriented mode: optional for internal or external;
2.Structure in sliding column mode: good tightness and sensitive reaction;
3.Three position solenoid valves have three kinds of central function for your choice;
4.Double control solenoid valves have memory function;
5.Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life;
6.No need to add oil for lubrication;
7.It is available to form integrated valve group with the base to save installation space;
8.Affiliated manual devices are equipped to facilitate installation and debugging;
9. Several standard voltage grades are optional.
Specification:

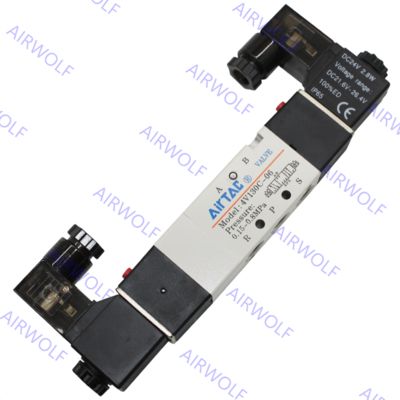

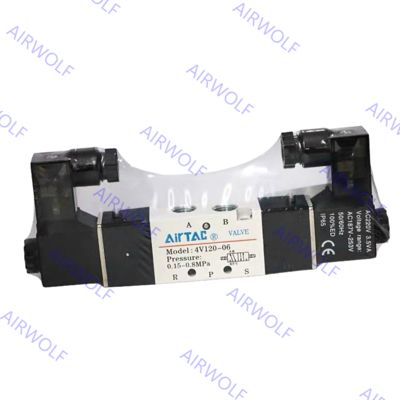

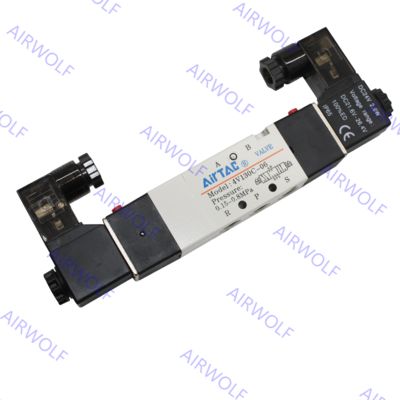

| Ordering Code | 4V110-M5 4V120-M5 | 4V130C-M5 | 4V110-06 4V120-06 | 4V130C-06 |
| 4V130E-M5 | 4V130E-06 | |||
| 4V130P-M5 | 4V130P-06 | |||
| Fluid | Air( to be filtered by 40μm filter element) | |||
| Acting type | Piloted | |||
| Port size | ln=Out=Exhaust=M5 | ln=Out=Exhaust=1/8" | ||
| Orifice size | 5.5mm2 | 5.0mm2 | 12.0mm2 | 9.0mm2 |
| (Cv=0.31) | (Cv=0.28) | (Cv=0.67) | (Cv=0.50) | |
| Valve type | 5 port 2 position | 5 port 3 position | 5 port 2 position | 5 port 3 position |
| Operating pressure | 0.15~0.8MPa(21~114Psi) | |||
| Proof pressure | 1.5MPa(215Psi) | |||
| Temperature ℃ | -20 - 70 | |||
| Material of body | Aluminum alloy | |||
| Lubrication | Not required | |||
| Max. frequency | 5 cycle/sec | 3 cycle/sec | 5 cycle/sec | 3 cycle/sec |
| Weight | 4V110-M5:120g 4V120-M5:175g | 200g | 4V110-06:120g 4V120-06:175g | 200g |
1. PT thread , NPT thread and G thread are available;
2. It can not stop in the midway of lubricating. Lubricants like ISO VG32 or equivalent are recommended.
3. The maximum actuation frequency is in the no-load state.
Inner Structure:
| NO. | Part Name | NO. | Part Name |
| 1 | Connector | 12 | Spool spring |
| 2 | Coil nut | 13 | Bottom cover gasket |
| 3 | Coil | 14 | Spool O-ring |
| 4 | Armature | 15 | Spool |
| 5 | Fixed plate | 16 | Piston O-ring |
| 6 | Piston | 17 | Override spring |
| 7 | Pilot kit | 18 | Manual override |
| 8 | Body | 19 | Spring holder |
| 9 | Wear ring | 20 | Return spring |
| 10 | Bottom cover | 21 | Side cover |
| 11 | Fixed screw | 22 | Spring holder |
Coils specification:
| Item | Specification |
| Standard voltage | AC220V, AC110V, AC24V. DC24V, DC 12V |
| Scope of voltage | AC: ±15% DC: ±10% |
| Power consumption | AC: 3.5VA DC : 3.0W |
| Protection | IP65 ( DIN40050 ) |
| Connector | DIN43650B |
| Temperature classification | B Class |
| Electrical entry | Terminal ,Grommet |
| Activating time | 0.05 sec and below |
Dimensions:
