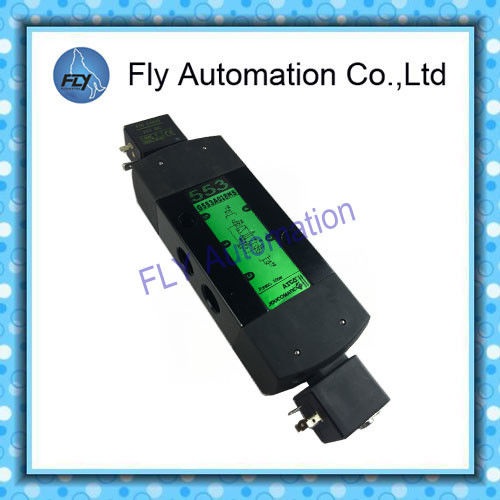

553A018MS Pneumatic Solenoid Valves G1/4 8553 SCG553 PV553 EF553

553A018MS Pneumatic Solenoid Valves G1/4 8553 SCG553 PV553 EF553

  •  553A018MS Pneumatic Solenoid Valves G1/4  8553 SCG553 PV553 EF553
  •  553A018MS Pneumatic Solenoid Valves G1/4  8553 SCG553 PV553 EF553
  •  553A018MS Pneumatic Solenoid Valves G1/4  8553 SCG553 PV553 EF553
  •  553A018MS Pneumatic Solenoid Valves G1/4  8553 SCG553 PV553 EF553
 553A018MS Pneumatic Solenoid Valves G1/4  8553 SCG553 PV553 EF553
Product Details:
Place of Origin: China
Certification: CE
Model Number: 553A018MS
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Delivery Time: within 1-30 working days after payment
Payment Terms: T/T , Western Union
Supply Ability: 1000 pcs
Contact Now
Detailed Product Description
Model Code: 553A018MS Working Press: 2-10 Bar
Working Temp.: -25 °C To +60 °C Port Size: 1/4“
Fluids: Air,Inert Gas Material: Epoxy Coated Explosion-proof Coil
Highlight:

pulse solenoid valve

,

pneumatic diaphragm valves

NAMUR Type NF/WSNF 551B401 MO Pneumatic Solenoid Valves Epoxy Coated Explosion-proof coil

Features
1.  NUMATCS solenoid valves satisfy all relevant EC Directives.
2. The monostable spool valves in conformity with IEC 61508 Standard (2010 route 2 H version) have TÜV (551 series) and EXIDA (551-553 series) certified with integrity levels: SIL 2 for HFT = 0 / SIL 3 for HFT = 1

3. The valves offer environmental protection against the ingress of liquids, dusts or any other foreign matter (environmental-protected construction).

4. Epoxy moulded coil for general service applications.
5. The same spool valve can be adapted for 3/2 NC or 5/2 functions for controlling double-acting and single-acting actuators
6. All the exhaust ports of this spool valve are pipable, providing better environmental protection, particularly recommended for sensitive areas such as clean rooms, and applications in the pharmaceutical and food processing sectors.




Materials

Body Aluminium, black anodized
End covers + interface plates Glass-filled polyamide
Internal parts Zamak, stainless steel, acetal (POM), aluminium
Sealing NBR + PUR
Core and core tube Stainless steel
Shading coil Copper



Electrical characteristics

Coil insulation class F
Connector specification DIN 43650, 11 mm, industry, standard B (type 01)
or ISO 4400 (type 02)
Connector Spade plug (cable Ø 6-8 mm or Ø 6-10 mm)
Electrical safety IEC 335
Standard voltages DC (=) : 24V
AC (~) : 24V - 115V - 230V / 50 Hz





Dimension drawings

 553A018MS Pneumatic Solenoid Valves G1/4  8553 SCG553 PV553 EF553 553A018MS Pneumatic Solenoid Valves G1/4  8553 SCG553 PV553 EF553

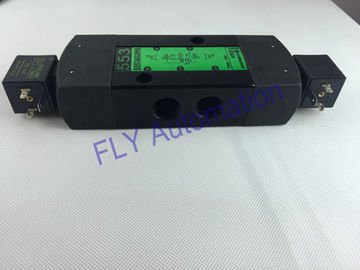

Pictures and details

 553A018MS Pneumatic Solenoid Valves G1/4  8553 SCG553 PV553 EF553 553A018MS Pneumatic Solenoid Valves G1/4  8553 SCG553 PV553 EF553



Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.

Competitive Advantage



Our product features Our Services Guarantee:
1) Competitive price 1) Prompt respond (Reply with 24 hours)
2) Good quality 2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging 3) Registration support.
4) Produce according to Customers’ instruction 4) Photos/videos are available during production.
5) None delay shipment 5) Loading inspection, and send loading photos before shipment.



After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.


Warranty
All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
