Place of Origin: | China |
Brand Name: | FLY/AIRWOLF |
Certification: | CE |

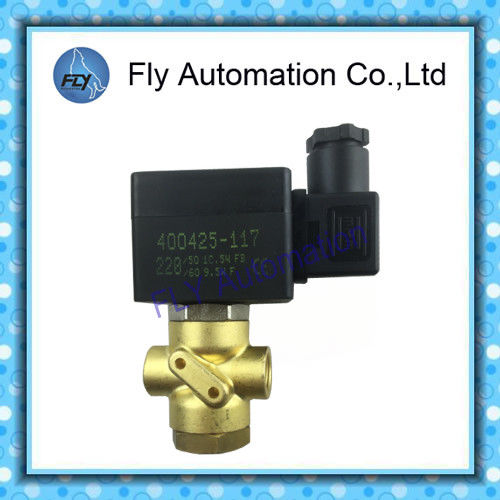

Model Number: | SCB320B174 |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | Negotiation |
Packaging Details: | Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement |
Delivery Time: | within 1-30 working days after payment |
Payment Terms: | T/T , Western Union |
Supply Ability: | 1000 pcs |
Model Code: | SCB320B174 | Working Press: | 2-10 Bar |
---|---|---|---|
Working Temp.: | -25 °C To +60 °C | Port Size: | 1/4" NPT |
High Light: | pulse solenoid valve,pneumatic diaphragm valves |
FEATURES
1. Compact three way solenoid valves with orifice and pipe connection in valve body
2. Valves are designed to handle relatively high pressure 3-way applications
3. Valves do not require a minimum operating pressure
4. The solenoid valves satisfy all relevant EU directives
GENERAL
Maximum viscosity 65 cSt (mm2/s)
Response time 5 - 25 ms
Body: Brass
Core tube: Stainless steel
Core and plugnut: Stainless steel
Springs: Stainless steel
Seat: Brass
Seals: NBR
Disc: NBR or UR
Disc holder & core guide: POM
Shading coil: Copper
ELECTRICAL CHARACTERISTICS
Coil insulation class: F
Connector: Spade plug (cable ? 6-10 mm)
Connector specification: ISO 4400 / EN 175301-803, form A
Electrical safety: IEC 335
Electrical enclosure protection: Moulded IP65 (EN 60529)
Standard voltages: DC (=) : 24V - 48V
Electrical characteristics
Coil insulation class | F |
Connector specification | DIN 43650, 11 mm, industry, standard B (type 01) or ISO 4400 (type 02) |
Connector | Spade plug (cable Ø 6-8 mm or Ø 6-10 mm) |
Electrical safety | IEC 335 |
Standard voltages | DC (=) : 24V AC (~) : 24V - 115V - 230V / 50 Hz |
Pictures and details
OPTIONS
1. Valves can also be supplied with FPM (fluoroelastomer), EPDM (ethylene-propylene), CR (chloroprene) and PTFE
seals and discs. Use the appropriate optional suffix letter for identification
2. Waterproof enclosure with embedded screw terminal coil according to protection class IP67, CEE-10
3. Explosionproof enclosures for use in zones 1/21-2/22, categories 2-3 to ATEX Directive 2014/34/EU (see
“Explosionproof solenoids” section)
4. Electrical enclosures according to “NEMA” standards are available
5. Compliance with “UL”, “CSA” and other local approvals available on request
6. Mounting brackets for brass body valves, suffix MB
7. Other pipe connections are available on request
8. Plug with visual indication and peak voltage suppression or with cable length of 2 m (see Solenoids, Coils & Accessories section)
INSTALLATION
1. The solenoid valves can be mounted in any position without affecting operation
2. Brass valves have 2 mounting holes in body
3. Stainless steel valves are standard supplied with mounting brackets
4. Pipe connection identifier is B = NPT (ANSI 1.20.3)
5. Installation/maintenance instructions are included with each valve
Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.
Competitive Advantage
Our product features | Our Services Guarantee: |
1) Competitive price | 1) Prompt respond (Reply with 24 hours) |
2) Good quality | 2) Free Samples (Customer pay for the delivery cost) |
3) Professional Packaging | 3) Registration support. |
4) Produce according to Customers’ instruction | 4) Photos/videos are available during production. |
5) None delay shipment | 5) Loading inspection, and send loading photos before shipment. |
After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
Warranty
All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
