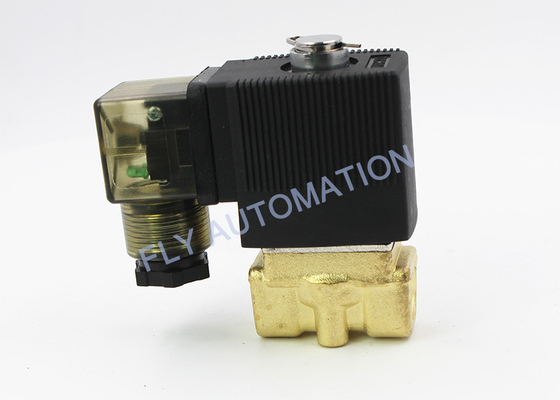

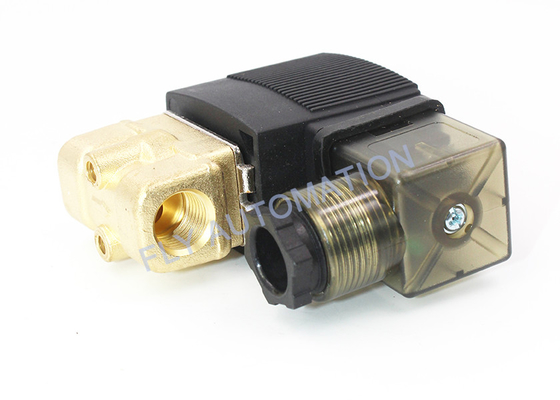

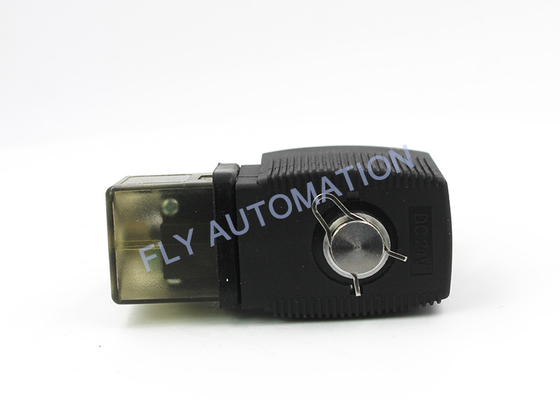

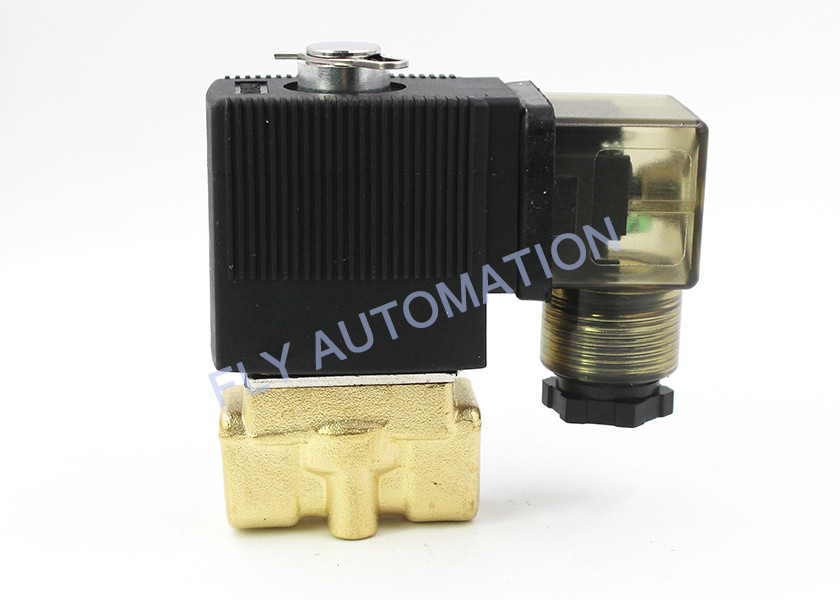

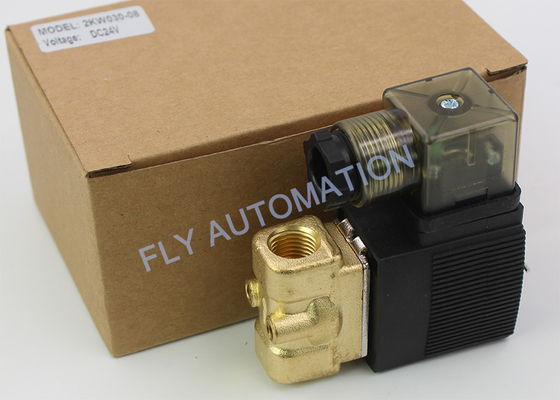

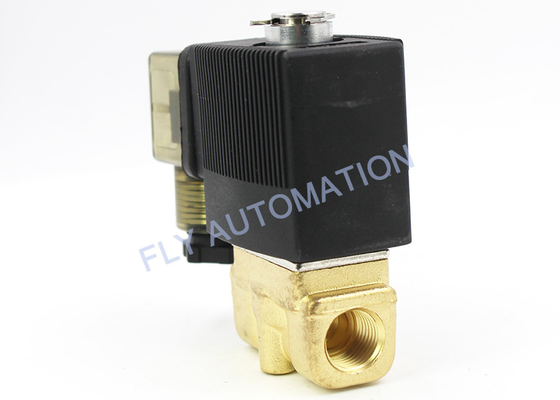

2KW030-08 G1/4 Fluid Control Valve 2/2 Way Direct Acting And Normally Opened Series

2KW030-08 G1/4 Fluid Control Valve 2/2 Way Direct Acting And Normally Opened Series

  • 2KW030-08 G1/4 Fluid Control Valve 2/2 Way Direct Acting And Normally Opened Series
  • 2KW030-08 G1/4 Fluid Control Valve 2/2 Way Direct Acting And Normally Opened Series
  • 2KW030-08 G1/4 Fluid Control Valve 2/2 Way Direct Acting And Normally Opened Series
  • 2KW030-08 G1/4 Fluid Control Valve 2/2 Way Direct Acting And Normally Opened Series
  • 2KW030-08 G1/4 Fluid Control Valve 2/2 Way Direct Acting And Normally Opened Series
  • 2KW030-08 G1/4 Fluid Control Valve 2/2 Way Direct Acting And Normally Opened Series
2KW030-08 G1/4 Fluid Control Valve 2/2 Way Direct Acting And Normally Opened Series
Product Details:
Place of Origin: China
Brand Name: AIRTAC
Certification: ISO Standand
Model Number: 2KW030-08
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiation
Packaging Details: Plastic bags, boxes, cartons, Pallets or As customer's requirement
Delivery Time: 7 working Days
Payment Terms: T/T, Western Union, MoneyGram Paypal
Supply Ability: 50 PCS Per Week
Contact Now
Detailed Product Description
Port Size: 1/4'' Type\ltem: 2KW030-08
Orifice Size (mm): 1.5 CV: 0.10
Valid Area Or Section(mm'): 1.8 Weight: 305g
High Light:

2KW030-08

,

2KW030-08 Fluid Control Valve

,

G1/4 Fluid Control Valve

2KW030-08 G1/4 Fluid Control Valve 2/2 Way Direct-Acting And Normally Opened Series Valve

Fluid control valve

Direct-acting and normally opened

2KW SERIES

We have various models. No matter what model you need, please feel free to contact me.

If you have any questions about the price, you can contact me at any time.

2KWX:Extra high pressure

2KWH:High pressure

2KW:Standard

2KWL:Large volume

Typeltem Port
size(1 )
Orifice size
(mm)
CV Valid area or
section (mm)
Weight
(g)
Max. operating pressure differentia Proof pressure
              MPa psi MPa psi
2KWX030 -6 1/8" 1.5 0.10 1.8 315 2.0 300 3.0 450
-8 1/4" 305
2KWH030 -6 1/8" 2.0 0.18 3.0 315 1.5 220
-8 1/4" 305
2KW030 -6 1/8" 3.0 0.33 6.0 315 0.7 100
-8 1/4" 305
2KWL030 -6 1/8" 4.0 0.55 10.0 315 0.4 60
-8 1/4" 305
2KWX050 -10 3/8" 3.0 0.34 6.1 635 2.0 300
-15 1/2" 615
2KWH050 -1 3/8" 4.0 0.55 10.0 635 1.5 220
-15 1/2" 615
2KW050 -10 3/8" 5.0 0.83 15.0 635 0.7 100
-15 1/2” 615
2KWL050 -10 3/8" 7.0 1.40 25.0 635 0.4 60
-15 1/2" 615

We have various models. No matter what model you need, please feel free to contact me.

If you have any questions about the price, you can contact me at any time.



2KW030-08 G1/4 Fluid Control Valve 2/2 Way Direct Acting And Normally Opened Series2KW030-08 G1/4 Fluid Control Valve 2/2 Way Direct Acting And Normally Opened Series2KW030-08 G1/4 Fluid Control Valve 2/2 Way Direct Acting And Normally Opened Series2KW030-08 G1/4 Fluid Control Valve 2/2 Way Direct Acting And Normally Opened Series2KW030-08 G1/4 Fluid Control Valve 2/2 Way Direct Acting And Normally Opened Series2KW030-08 G1/4 Fluid Control Valve 2/2 Way Direct Acting And Normally Opened Series2KW030-08 G1/4 Fluid Control Valve 2/2 Way Direct Acting And Normally Opened Series2KW030-08 G1/4 Fluid Control Valve 2/2 Way Direct Acting And Normally Opened Series2KW030-08 G1/4 Fluid Control Valve 2/2 Way Direct Acting And Normally Opened Series



FAQ:



Q: Where is your factory ? Can we visit your factory?

A:Our factory is located in Ningbo City, Zhejiang Province,China, 17kms away from Ningbo Airport. We sincerely welcome customers to visit our company and factory.

Q: Could you add our logo on your products?

A: Yes,if your quantity more than 50pcs. we could add your logo on the products.


Q: How long is your delivery time?

A: Generally it is 1-2 days if the goods are in stock. or it will be 3-5 weeks if the goods are not in stock, it is according to quantity.





1.Direct acting and normally opened type 2/2 way solenoid valve.
lts high sensibility allows itto change direction quickly;
2. lt has wide pressure range, including extra high pressure (X),
High pressure (H), standardand large volume(L) to choose from;
3.lt is compact, small size and light weight. lt is easy to install and dismantle.
4.The valve body is made of brass . lts coil has a Heat resistance classification of Class B.
The standard seal material is FPM-F.Please contact us if other material are required.
5.The protection class of the coil is IP65 and there is a choice for grommet or terminalelectrical entry .


1. Before installing, be sure the valve hasn't been damaged via transportation.
2. The coil must be pure vertical, the inlet and outlet on body must be horizontal. it's suggested to use the medium lubricated by 40μm filter element. Be aware of the flow direction and port size.
3. Please notice whether the installation condition accords with technical requirements (such as "voltage, actuation frequency", "working pressure" and "scope of application temperature" ), then the equipment can be installed and used.
4. Take measure to avoid vibration and frozen.
5. Before using the ftings and tubes make sure they are clean. When connecting tittings,be sure the PTFE Thread Seal Tape is used correctly.
6. To keep the dust away, Default paragraph font;,Never forget to install dirt-proof boot in air intake and outlet during dismounting.

PT thread, G thread and NPT thread are available.
The weight in the table is the terminal valve's weight, 2KW030 series grommet valve's
weight is 10g less than terminal's. 2KW050series grommet valve's weight is 20g less
than terminal's.



Ningbo Fly Automation Co., Ltd with its headquarter located in Ningbo and established in 2010, is a wellknown supplier manufacture of pneumatic equipments in the world market.
Fly Automation is specialized in producing pneumatic cylinders, pneumatic valves,air preparation units, pulse jet valves, pneumatic fittings, etc.
which are widely used in the lighting and textile, automotive, machinery manufacturing, metallurgy, electronics,environmental protection ceramics, medical equipments,food and packaging automatic industrial fields.

A Caution
Use caution for the anti-corrosiveness of finger guide section.
Martensitic stainless steel is used for the finger. However, be aware that its anti-corrosion performance is inferior to austenitic stainlesssteel. ln particular, the finger might be rusted in an environment where water droplets are adhered to it due to dew condensation.
