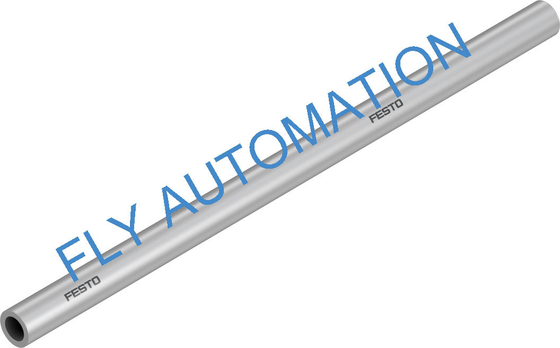

12mm Pneumatic Air Hose Plastic Tubing PUN-H-12X2-SI 558282 GTIN4052568054298

Product Details:

Place of Origin:	China
Brand Name:	FESTO
Model Number:	PUN-H-12X2-SI

Payment & Shipping Terms:

Minimum Order Quantity:	50m
Price:	EXW USD1-1.5/m
Packaging Details:	Carton，OPP bag
Delivery Time:	7-10 working days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	6000m per month

Contact Now

Detailed Product Description

Part No.:	558282	Type:	PUN-H-12X2-SI
Brand:	FESTO	Outside Diameter:	12 Mm
Instructions On Use:	TPE-U Ether Based	Fire Test Material:	UL94 HB
High Light:	Pneumatic Air Hose Plastic Tubing , PUN-H-12X2-SI Plastic Tubing , 12mm Pneumatic Air Hose

FESTO Plastic tubing PUN-H-12X2-SI 558282 GTIN4052568054298 Pneumatic Air Hose

Name: 12mm Pneumatic Air Hose Plastic Tubing PUN-H-12X2-SI 558282 GTIN4052568054298
Brand: FESTO
SKU: PUN-H-12X2-SI
Price: 1 USD
Availability: InStock
Rating: 5 (133 reviews)

Feature

1.Reliable air supply pipe.

2.Wide range of applications.

3.Quick installation, plug and play.

4.Transparent model, improving security.

About product

1.PUN-H not only has excellent torsion resistance and is easy to install, but also has good hydrolysis resistance and microbial resistance, making it very suitable for the food industry. In addition, the black version is UV resistant, so it can be used outdoors.

2.Combined with Festo's high-quality quick connector QS series and NPQE series, PUN-H air pipe can be quickly inserted and released, greatly improving the installation efficiency.

3.The PUN-H transparent air tube makes it easier to detect particles, moisture and oil in the air tube, which also greatly improves the potential risk of the pipeline system, and is simpler and more efficient for detecting the pipeline system.

Technical Data

Outside diameter	12 mm
Flow-relevant bending radius	62 mm
Inside diameter	8 mm
Min. bending radius	33 mm
Instructions on use	TPE-U Ether based
Tubing characteristics	Suitable for energy chains
Approval	German Technical Control Board (TÜV)
Certificate issuing authority	B 013277 0506 00
Operating medium	Compressed air to ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com
Fire test material	UL94 HB
LABS (PWIS) conformity	VDMA24364-B2-L
Suitability for the production of Li-ion batteries	Metals with more than 1% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils
Cleanroom class	Element installed statically, no meaningful evaluation possible according to ISO 14644-1
Suitable for use with food	See supplementary material information
Product weight according to length	0.0729 kg/m
Pneumatic connection	For push-in connector outside diameter of 12 mm
Colour	Silver
Shore hardness	D 52 +/-3
Note on materials	RoHS-compliant
Material tubing	TPE-U(PU)

Other color as follow

Part no.	Type	Colour	Weight
197380	PUN-H-12x2-NT	Natural	0.0729kg/m
197387	PUN-H-12x2-BL	Blue	0.0729kg/m
8048711	PUN-H-12x2-TBL	Translucent blue	0.0729kg/m
197394	PUN-H-12x2-SW	Black	0.0729kg/m
8048713	PUN-H-12x2-TSW	Translucent black	0.0729kg/m
558282	PUN-H-12x2-SI	Silver	0.0729kg/m
