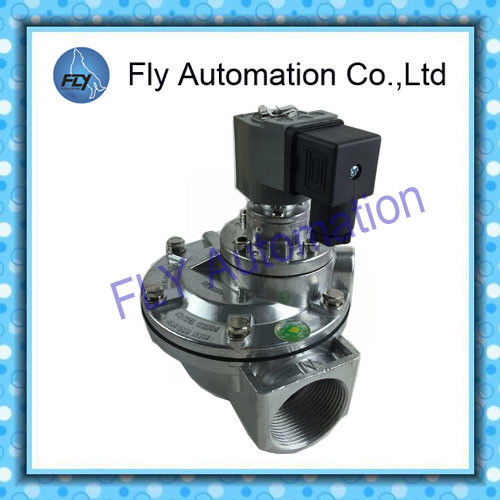

GOYEN CA-45T010-305 RCA-45T DN40 1.5Inch 90 Degree Solenoid Valves DC24V

GOYEN CA-45T010-305 RCA-45T DN40 1.5Inch 90 Degree Solenoid Valves DC24V

    • GOYEN CA-45T010-305 RCA-45T DN40 1.5Inch 90 Degree Solenoid Valves DC24V
    • GOYEN CA-45T010-305 RCA-45T DN40 1.5Inch 90 Degree Solenoid Valves DC24V
    • GOYEN CA-45T010-305 RCA-45T DN40 1.5Inch 90 Degree Solenoid Valves DC24V
    • GOYEN CA-45T010-305 RCA-45T DN40 1.5Inch 90 Degree Solenoid Valves DC24V
  • GOYEN CA-45T010-305 RCA-45T DN40 1.5Inch 90 Degree Solenoid Valves DC24V

    Product Details:

    Place of Origin: China
    Brand Name: Goyen or OEM
    Certification: ISO 9001,CE
    Model Number: CA-45T,RCA-45T

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: EXW USD30-40
    Packaging Details: carton
    Delivery Time: 5 working days
    Payment Terms: T/T
    Supply Ability: 2000 pcs/month
    Contact Now
    Detailed Product Description
    Model: CA45T010-300 CA45T010-305 Port Size: G1-1/2"
    Material: Aluminium&stainless Steel Voltage: AC220V DC24V
    High Light:

    pneumatic operated valves

    ,

    pneumatic diaphragm valves

    GOYEN CA-45T010-305 RCA-45T DN40 1.5Inch 90 Degree Pulse Jet Valves DC24V



    Description:

    High performance diaphragm valve with threaded ports. Available with integral pilot or as remotely piloted
    valve. Outlet at 90° to inlet.



    Odering Code:

    Ordering Code Port Size Orifice Flow Value
     G Threaded mm Kv Cv
    CA20T/RCA20T 3/4" 20 12 14
    CA25T/RCA25T 1" 25 20 23
    CA35T/RCA35T 1 1/4" 40 36 42
    CA45T/RCA45T 1 1/2" 40 44 51
    CA50T/RCA50T 2" 50 76 88
    CA62T/RCA62T 2 1/2" 62 91 106
    CA76T/RCA76T 3" 76 144 167



    More Detailed Description:



    Construction

    Body              Aluminum (Diecast)
    Washer SS 304
    Armature SS 430FR
    Core and Plugnut  Stainless steel
    Core Spring       SS 304
    Sealing & disc    NBR(nitrile/buna-n)
    Screws SS302
    Diaphragm         PA-6(Standard), Viton
    Shading coil      Copper
    Connector          DIN43650A
    Voltage            DC: 24V, AC: 24V, 48V, 110V, 230V
    Working Temperature  -20 to +85℃  Nitrile seals                 -29 to +232℃ Viton seals
    Protection Class     IP65
    Coil Insulation Class  F
    Working Pressure     0.35-0.85Mpa
    Recommended on time range 50-500ms
    Recommended time between pulses 1 minute or Less



    Technical Parameter



    Model:CA45T010-300 CA45T010-305 RCA45T
    Working-pressure: 0.35--0.85MPa
    Ambient Temperature: -5 ~55
    Relative Humidity: < 85 %
    Working Medium: Clean Air
    Voltage: AC220V DC24V
    Diaphragm Life: Over One Million cycles
    Connection Port: G1-1/2"





    Construction
    Body: Aluminium (diecast)
    Ferrule: 304 SS
    Armature: 430FR SS
    Seals: Nitrile or Viton (reinforced)
    Spring: 304 SS
    Screws: 302 SS
    Diaphragm Seat: PA-6 (standard), Viton
    coated mild steel or High Density PE



    Installation
    1. Prepare supply and blowtube pipes to suit valve specification. Avoid installing
    valves underneath the tank.
    2. Ensure tank and pipes are free from dirt, rust or other particulate.
    3. Ensure supply air is clean and dry.
    4, Mount valves to inlet pipes and blowtube to valves, ensuring no excess thread
    sealant can enter the valve itself.
    5. Make electrical connections to solenoid or connect RCA pilot port to pilot valve
    (RCA valves only).
    6. Apply moderate pressure to system and check for installation leaks.
    7. Fully pressurise system.
    8. Test fire and listen for proper actuation and crisp pulse noise.



    Dimension:

    GOYEN CA-45T010-305 RCA-45T DN40 1.5Inch 90 Degree Solenoid Valves DC24V 0



    Picture details:

    GOYEN CA-45T010-305 RCA-45T DN40 1.5Inch 90 Degree Solenoid Valves DC24V 1GOYEN CA-45T010-305 RCA-45T DN40 1.5Inch 90 Degree Solenoid Valves DC24V 2



    Competitive Advantage:



    Our product features: Our Services Guarantee:
    1) Competitive price 1) Prompt respond (Reply with 24 hours)
    2) Good quality 2) Free Samples (Customer pay for the delivery cost)
    3) Professional Packaging, 3) Registration support.
    4) Produce according to Customers’ instruction 4) Photos/videos are available during production.
    5) None delay shipment

    5) Loading inspection, and send loading photos before shipment.
