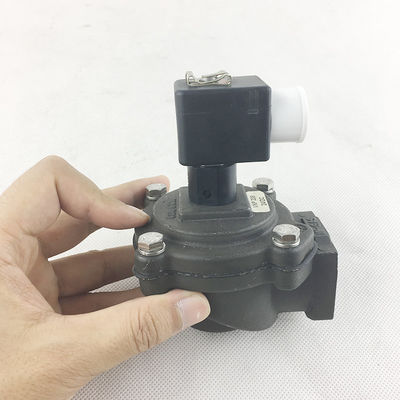

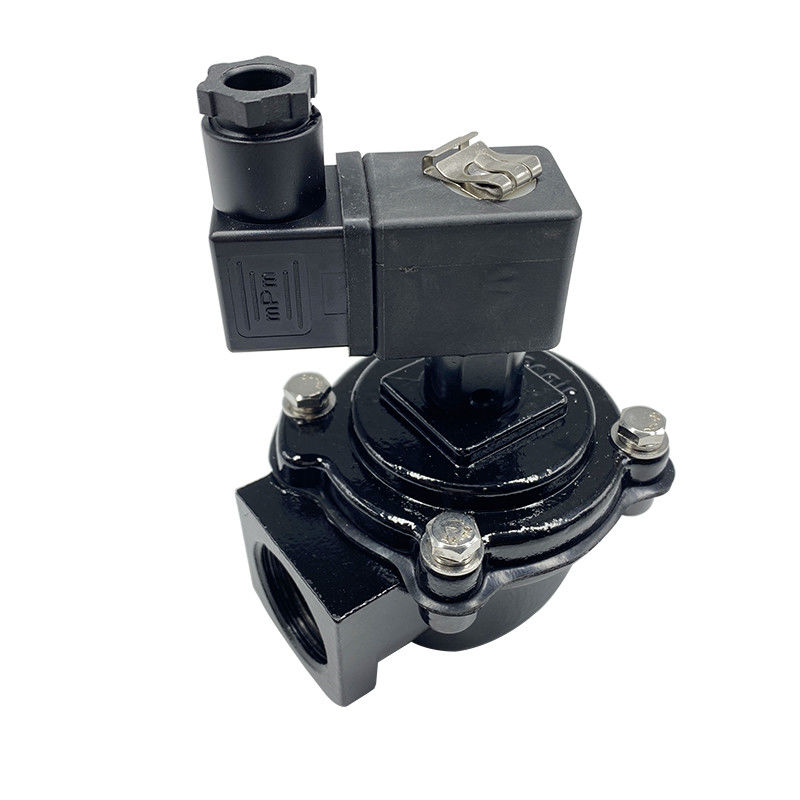

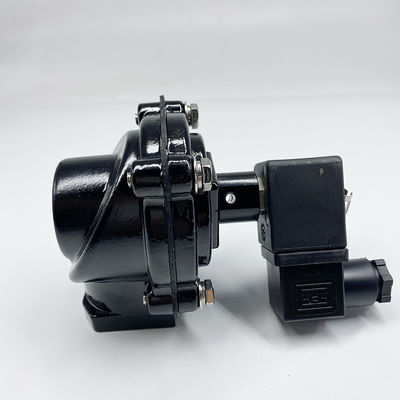

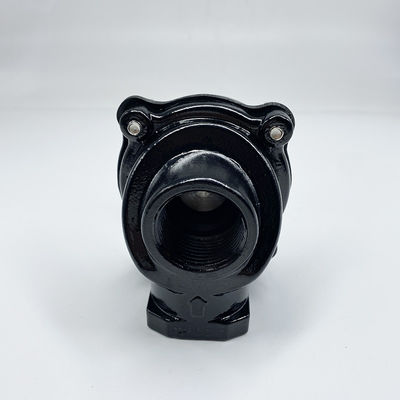

Aluminium Alloy Electronic Control Pulse Jet Diaphragm Valve

Aluminium Alloy Electronic Control Pulse Jet Diaphragm Valve

  • Aluminium Alloy Electronic Control Pulse Jet Diaphragm Valve
  • Aluminium Alloy Electronic Control Pulse Jet Diaphragm Valve
  • Aluminium Alloy Electronic Control Pulse Jet Diaphragm Valve
  • Aluminium Alloy Electronic Control Pulse Jet Diaphragm Valve
Aluminium Alloy Electronic Control Pulse Jet Diaphragm Valve
Product Details:
Place of Origin: China
Brand Name: FLY/AIRWOLF
Certification: CE
Model Number: VNP208
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: price negotiable
Packaging Details: Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Delivery Time: within 1-30 working days after payment
Payment Terms: T/T in advance,Western Union,Paypal,Credit card
Supply Ability: 2000 pcs
Contact Now
Detailed Product Description
Material: Aluminium Working Temperature: -20 To 100 C
Working Pressure: 7.5 Bar Diaphragm: NBR
Valve Port Size: G3/4"
High Light:

FLY/AIRWOLF Pulse Jet Diaphragm Valve

,

Electronic Control Pulse Jet Diaphragm Valve

,

Electronic Control Pulse Jet Valves



Black Aluminium Alloy Electronic Control Diaphragm Valve VNP208 DB18 Pulse Jet Valve

Features

The 200 series is a range of diaphragm valve suitable for dust collector applications, in particular for reverse pulse jet filter cleaning of filter bags, cartridges, envelope filter, ceramic filters and sintered metal fibre filters, The 200 series valve has the inlet port at 90° to the outlet port. The 200 series range comprises 7 models, from 3/4" to 3", all with threaded femal gas connections. The 1 1/2" model is available in the single ans double diaphragm versions, while the 2", 2 1/2" and 3" are all double diaphragm valves. The special design assures an extremely fast opening time, high flow rates and easy installations. The valves are constructed in die-cast aluminium and have an anodised pretection treatment which protect them from corrosive and environmental agents, Bolts and screws are in stainless steel. The 200 series is available in the following versions:
Aluminium Alloy Electronic Control Pulse Jet Diaphragm ValveVNP, with integrated pilot
Aluminium Alloy Electronic Control Pulse Jet Diaphragm ValveVEM, with remote pneumatic connection



Specification

Fluids Filtered
Diaphragm NBR: -20~120 ℃
fluororubber: -30~180 ℃
Nitrile: -40~120 ℃
Pressure range From 0.5 to 7.5 bar
Cover Die-cast aluminium
Body Die-cast aluminium
Pilot Base Brass (Chromed)
Pilot Stainless Steel
Diaphragm NBR
Bolts and screws Stainless Steel
Diaphragm Backing disk Stainless Steel
Diaphragm spring Stainless Steel



Aluminium Alloy Electronic Control Pulse Jet Diaphragm ValveAluminium Alloy Electronic Control Pulse Jet Diaphragm Valve

Structure

2. VNP208

Aluminium Alloy Electronic Control Pulse Jet Diaphragm Valve

Aluminium Alloy Electronic Control Pulse Jet Diaphragm Valve



Product Show

Aluminium Alloy Electronic Control Pulse Jet Diaphragm ValveAluminium Alloy Electronic Control Pulse Jet Diaphragm Valve







Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.

Competitive Advantage

Our product features Our Services Guarantee:
1) Competitive price 1) Prompt respond (Reply with 24 hours)
2) Good quality 2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging 3) Registration support.
4) Produce according to Customers’ instruction 4) Photos/videos are available during production.
5) None delay shipment 5) Loading inspection, and send loading photos before shipment.



Introduction
Electromagnetic pulse valve refers to the gas through the valve in instantaneous once a electrical signal received. Just like pulse phenomena, it has the change of the short fluctuation. Therefore it is calls the pulse valve. The Industry standard definition of electromagnetic pulse valve for electromagnetic pilot valve and pulse valve together, diaphragm valve controlled by electrical signals.



Working principle
Electrical pulse controller send input signals so that the electromagnetic armature attracts the moving bar. Unclose the balancing hole to release the pressure gas in the back cavity of diaphragm quickly; the pressure gas in the front cavity holds up the diaphragm to open the passage and the valve starts cleaning.
The pulse signal disappears and the spring of the armature works immediately to resume the moving bar so as to close the balancing hole. The pressure gas in the back cavity of the diaphragm and the spring work together to close the passage the valve stops cleaning.
The damping hole in the diaphragm functions to damp the airflow when the moving bar of armature holds up for balancing and to transit the air to the back cavity as soon as the balancing hole is shut to close the passage and stop cleaning.
