DC24V Pulse Jet Valves SCXE353.060 Type C113928 3 Inch Explosion Proof Diaphragm

DC24V Pulse Jet Valves SCXE353.060 Type C113928 3 Inch Explosion Proof Diaphragm

    • DC24V Pulse Jet Valves SCXE353.060 Type C113928 3 Inch Explosion Proof Diaphragm
    • DC24V Pulse Jet Valves SCXE353.060 Type C113928 3 Inch Explosion Proof Diaphragm
    • DC24V Pulse Jet Valves SCXE353.060 Type C113928 3 Inch Explosion Proof Diaphragm
    • DC24V Pulse Jet Valves SCXE353.060 Type C113928 3 Inch Explosion Proof Diaphragm
  • DC24V Pulse Jet Valves SCXE353.060 Type C113928 3 Inch Explosion Proof Diaphragm

    Product Details:

    Place of Origin: China
    Brand Name: Airwolf
    Certification: CE
    Model Number: SCXE353.060 Explosion Proof

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Negotiation
    Packaging Details: Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
    Delivery Time: within 1-30 working days after payment
    Payment Terms: T/T , Western Union
    Supply Ability: 1000 pcs
    Contact Now
    Detailed Product Description
    Model Code: SCXE353.060 Explosion Proof Diaphragm Kit: C113928
    Voltage: 220VAC 24VDC Body Material: Aluminum
    Size: 2.5 Inch Weight: 4.8kg

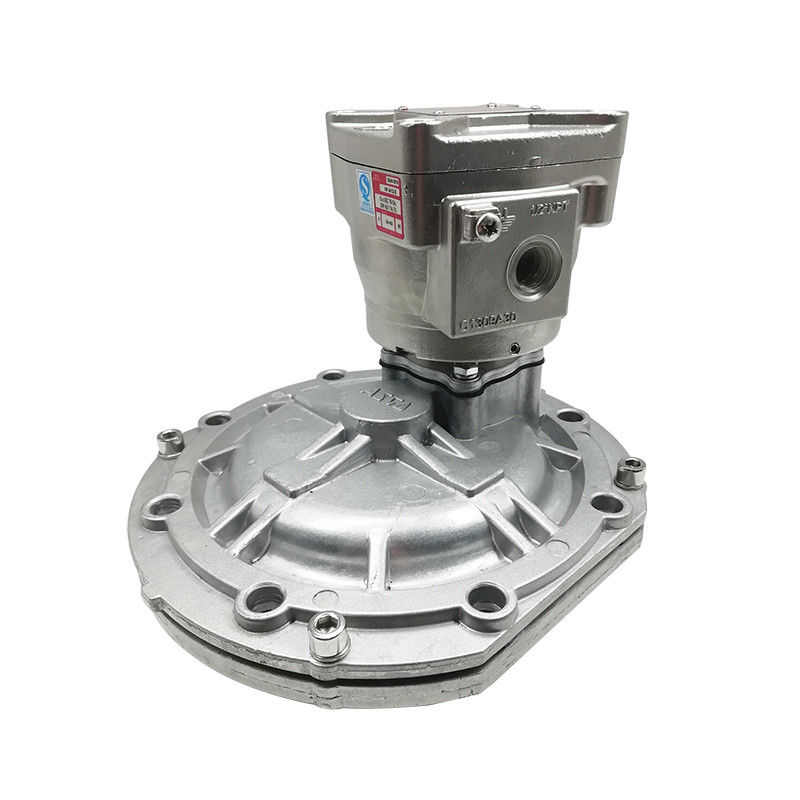

    SCXE353.060 Type C113928 3 Inch Explosion Proof Diaphragm DC24V Pulse Valve



    1. Specially designed for reverse jet-type dust collector systems.

    2. Size: 3 inch

    3. High cycle life.

    4. High flow Cv's to 140 for effective bag cleaning.

    5. With explosion-proof coil.


    Model code
    SCXE353.060 Type C113928
    Material
    stainless steel,Aluminum
    Port size
    3inch
    Weight
    5kgs
    Voltage
    220VAC;110VAC
    24VDC; 48VDC
    Used
    Dust collector industry machinery



    Working Pressure 0.3~0.85Mpa
    Working Medium Clear air
    Spring material stainless steel
    Body material die-cast aluminium

    DC24V Pulse Jet Valves SCXE353.060 Type C113928 3 Inch Explosion Proof Diaphragm
    DC24V Pulse Jet Valves SCXE353.060 Type C113928 3 Inch Explosion Proof DiaphragmDC24V Pulse Jet Valves SCXE353.060 Type C113928 3 Inch Explosion Proof Diaphragm
    Competitive Advantage
    Our product features Our Services Guarantee:
    1) Competitive price 1) Prompt respond (Reply with 24 hours)
    2) Good quality 2) Free Samples (Customer pay for the delivery cost)
    3) Professional Packaging 3) Registration support.
    4) Produce according to Customers’ instruction 4) Photos/videos are available during production.
    5) None delay shipment 5) Loading inspection, and send loading photos before shipment.


    After-sale service
    We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

    Samples
    You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.




    Quality Standards
    The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount, but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance, according to the original quality standards, during warranty with product problems, need confirmation testing by the manufacturer, the supplier to be solved, the demand side due to storage, use, poor maintenance caused by lower-quality product, and not raise objections.



    Delivery
    1. If the products we have in store, we will send it out ASAP after payment.
    2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
    3. We have a variety of ways to deliver goods, usually DHL, Fedex, TNT will be normal ways, If you require use of a courier, we can do it.
    4. Also we can send by your delivery acount if you want.
