High Precision Air Preparation Units 1 Micron Filter Element 20m3 / Min Flow Rate

High Precision Air Preparation Units 1 Micron Filter Element 20m3 / Min Flow Rate

  • High Precision Air Preparation Units 1 Micron Filter Element 20m3 / Min Flow Rate
  • High Precision Air Preparation Units 1 Micron Filter Element 20m3 / Min Flow Rate
  • High Precision Air Preparation Units 1 Micron Filter Element 20m3 / Min Flow Rate
  • High Precision Air Preparation Units 1 Micron Filter Element 20m3 / Min Flow Rate
High Precision Air Preparation Units 1 Micron Filter Element 20m3 / Min Flow Rate
Product Details:
Place of Origin: China
Brand Name: Airwolf
Certification: CE
Model Number: K330
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Delivery Time: within 1-30 working days after payment
Payment Terms: T/T , Western Union
Supply Ability: 1000 pcs
Contact Now
Detailed Product Description
Model Code: K330 Operating Temperature: ≤65℃
Name: Filter Repair Kit Working Medium: Air
Grade: PF, AO, AA, AX, ACS, AR, AAR Flow Rate: 20m3/min
High Light:

air preparation unit

,

compressed air air preparation unit

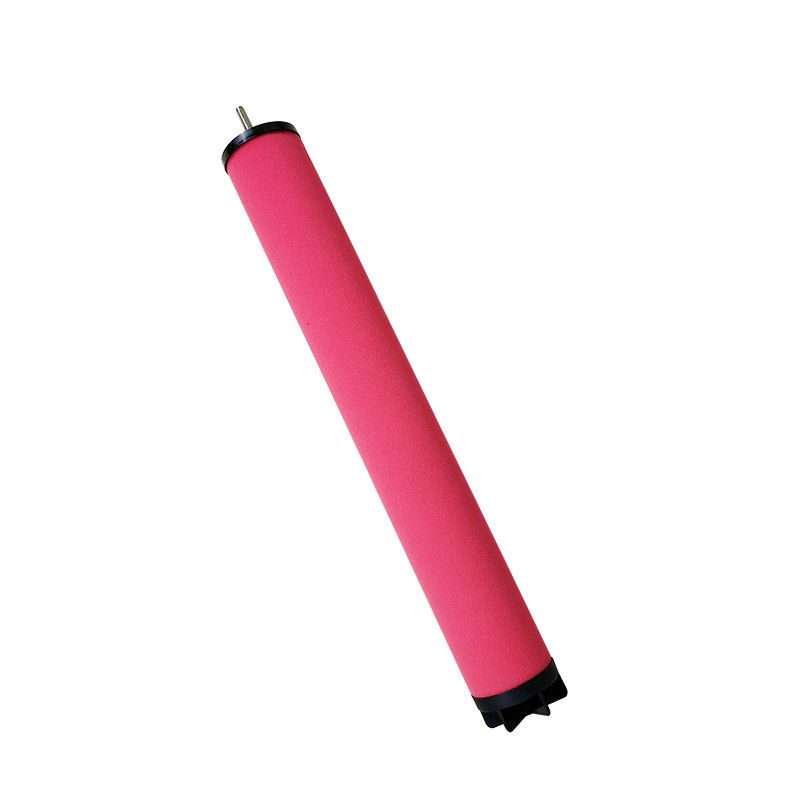

Red High Precision Domnick Hunter K330 Filter Replacement 1 Micron Filter Element


Product Introduction:
Domnick Filter use the different structures of the stainless steel frame, corrosion resistance, structural performance, excellent; welding high strength, low resistance to airflow. Different precision levels with different structural type filter, a new "hybrid fiber matrix" to make contact with the medium size area, improved filtration rate, and improve the filtering effect.

Domnick Hnuter Filter have several different leves:
PF-level: 25 (micron), AO level:(1 micron),AR grade (1micron),AA grade (0.01 micron),AX level (0.01 micron), AC / ACS grade (> 0.01 micron).


Model K017, K030, K058, K080, K125, K145, K205, K220, K330
Grade PF, AO, AA, AX, ACS, AR, AAR
Flow rate 1.0~20Nm3/min.
Construction inserted type
Operating temperature 65℃
Operating pressure 16 bar
Filtration rating 0.01, 1, 25 micron
Residual oil content 0.001, 0.01, 1, 5 ppm
Color white, customized
Material needled felt, stainless steel screen
Filter media glassfibers, imported
Function high efficient coalescing filter
Application remove liquid, particles, oil in the compressed air
Quality class ISO 8573.1

Model No. Flow Rate (NM3/Min.)
K017 1.0
K030 2.0
K058 3.6
K080 4.8
K125 7.2
K145 8.7
K205 12.0
K220 13.2
K330 20.0



Grade Filtration Rating (micron) Residual Oil Content (ppm)
PF 25 5
AO 1 1
AA 0.01 0.01
AX 0.01 0.001
ACS (activated carbon) 0.01 0.001
AR (dust removal) 1 /
AAR (dust removal) 0.01 /

High Precision Air Preparation Units 1 Micron Filter Element 20m3 / Min Flow Rate


High Precision Air Preparation Units 1 Micron Filter Element 20m3 / Min Flow Rate



High Precision Air Preparation Units 1 Micron Filter Element 20m3 / Min Flow Rate






Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. We have a variety of ways to deliver goods, usually DHL, Fedex, TNT will be normal ways, If you require use of a courier, we can do it.
4. Also we can send by your delivery acount if you want.

High Precision Air Preparation Units 1 Micron Filter Element 20m3 / Min Flow Rate


After-sale service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

Samples
You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.
