|Xikou,Fenghua,Zhejiang Province, Chinafirstname.lastname@example.org|
|Place of Origin:||China|
|Minimum Order Quantity:||1 piece|
|Packaging Details:||Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement|
|Delivery Time:||within 1-30 working days after payment|
|Payment Terms:||T/T , Western Union|
|Supply Ability:||1000 pcs|
|Model Code:||TAC2-31P||Body Material:||Aluminum Alloy|
foot pedal valve,
pneumatic mechanical valve

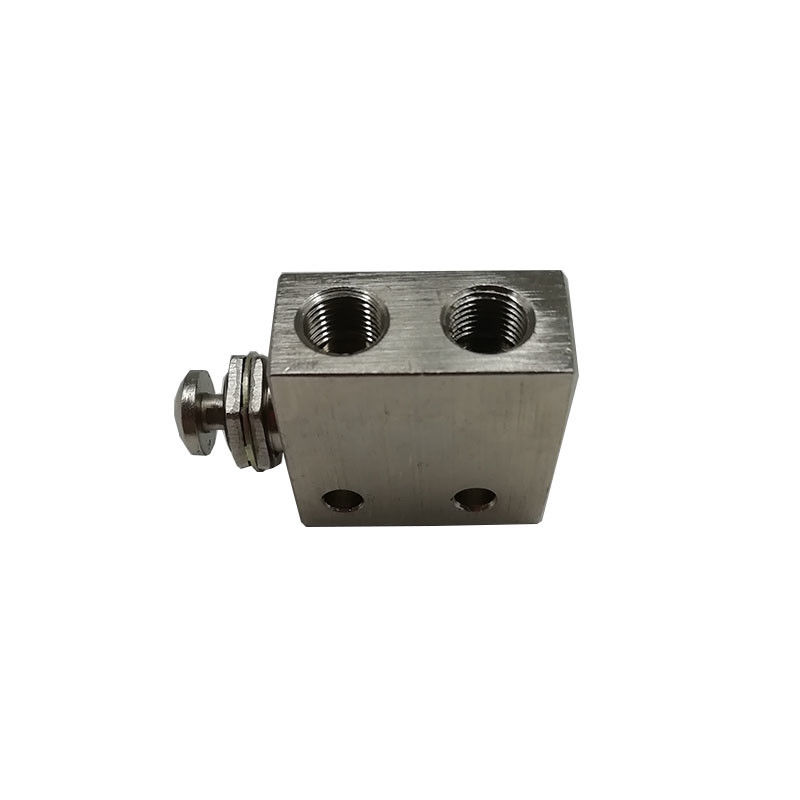

pilot controlled TAC2-31P 3/2 way Nickel Brass 1/8 inch Actuator
The pressure relief valve of compressed air filter adopts rolling diaphragm. When the pressure at the input end fluctuates, the diaphragm of the pressure relief valve automatically adjusts to make the pressure output stable and ensure the pressure stability.
The combined filter pressure relief valve can select high precision pressure relief valve according to the requirement of output pressure precision. In the process of using, the compressed air can be removed oil, water, dust and other impurities in the compressed air through two-stage and three-stage filters, which greatly improves the service life of the valve diaphragm and the precision of regulating pressure. The service life of the filter element is longer, and the filter element and the decompression element can be repaired separately in maintenance, without the need for overall replacement, which greatly saves the cost.
Rotate the adjusting screw clockwise, adjust the spring force and press the diaphragm downward, and move the connecting spool and chassis downward. At this time, a path is formed above the spool chassis, and the air pressure is exported through the outlet.
When the outlet pressure rises to the set pressure, it is transmitted to the bottom of the diaphragm through the outlet pressure sensing hole, and the spring pressure is balanced, and the set pressure is maintained.
When the outlet pressure is greater than the set pressure, it is transmitted to the bottom of the diaphragm through the outlet pressure induction hole, and the hole between the diaphragm and the chassis opens. The outlet pressure is transmitted to the spring chamber through the hole and discharged to the atmosphere to maintain the set pressure.
1. It enhances the safety of mechanical operation.
2. It avoids the mechanical damage due to any impact shock.
3. It reduces the repaircost, prolongs the service life of the machine.
1. Export pressure additional balancing lifting valve provides fast response
2. It has precise pressure regulation and is suitable for optimum pressure control.
3. Holistic control piston, lip seal, long service life.
4. Full flow pressure gauge air port.
5. Press-lock adjusting knob with protective cover.
6. Compact structure, easy maintenance
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. We have a variety of ways to deliver goods, usually DHL, Fedex, TNL will be normal ways, If you require use of a courier, we can do it.
4. Also we can send by your delivery acount if you want.
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
