Liandong-U-Gu 17-2#, Shengyuan Road 1#, Jiangkou Street, Fenghua District, Ningbo City, Zhejiang Province, China | airwolf@flyautomatic.com |
Place of Origin: | China |
Brand Name: | Airwolf |
Certification: | CE |
Model Number: | K145 K205 |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | Negotiation |
Packaging Details: | Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement |
Delivery Time: | within 1-30 working days after payment |
Payment Terms: | T/T , Western Union |
Supply Ability: | 1000 pcs |
Model Code: | K145 K205 | Name: | Filter Cartridge |
---|---|---|---|
Color: | Red, Customized | Working Medium: | Air |
Grade: | PF, AO, AA, AX, ACS, AR, AAR | Flow Rate: | 8.7~12 M3/min |
High Light: | air preparation unit,compressed air air preparation unit |

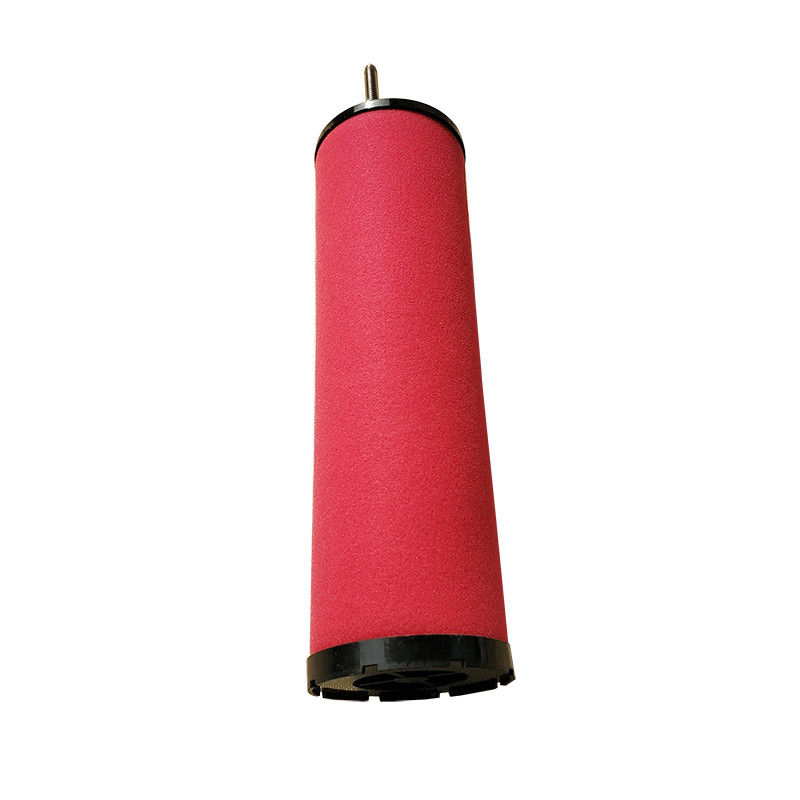

Compressed Air Replacement K145 K205 Domnick Hunter High Precision Air Filter Element
Application:
Removing liquid, particles in compressed air
Product Introduction:
Domnick Filter use the different structures of the stainless steel frame, corrosion resistance, structural performance, excellent; welding high strength, low resistance to airflow. Different precision levels with different structural type filter, a new "hybrid fiber matrix" to make contact with the medium size area, improved filtration rate, and improve the filtering effect.
Model | K017, K030, K058, K080, K125, K145, K205, K220, K330 |
Grade | PF, AO, AA, AX, ACS, AR, AAR |
Flow rate | 1.0~20Nm3/min. |
Construction | inserted type |
Operating temperature | 65℃ |
Operating pressure | 16 bar |
Filtration rating | 0.01, 1, 25 micron |
Residual oil content | 0.001, 0.01, 1, 5 ppm |
Color | white, customized |
Material | needled felt, stainless steel screen |
Filter media | glassfibers, imported |
Function | high efficient coalescing filter |
Application | remove liquid, particles, oil in the compressed air |
Quality class | ISO 8573.1 |
Model No. | Flow Rate (NM3/Min.) |
K017 | 1.0 |
K030 | 2.0 |
K058 | 3.6 |
K080 | 4.8 |
K125 | 7.2 |
K145 | 8.7 |
K205 | 12.0 |
K220 | 13.2 |
K330 | 20.0 |
Grade | Filtration Rating (micron) | Residual Oil Content (ppm) |
PF | 25 | 5 |
AO | 1 | 1 |
AA | 0.01 | 0.01 |
AX | 0.01 | 0.001 |
ACS (activated carbon) | 0.01 | 0.001 |
AR (dust removal) | 1 | / |
AAR (dust removal) | 0.01 | / |
Competitive Advantage
Our product features | Our Services Guarantee: |
1) Competitive price | 1) Prompt respond (Reply with 24 hours) |
2) Good quality | 2) Free Samples (Customer pay for the delivery cost) |
3) Professional Packaging | 3) Registration support. |
4) Produce according to Customers’ instruction | 4) Photos/videos are available during production. |
5) None delay shipment | 5) Loading inspection, and send loading photos before shipment. |
Packing Details : Standard Carton,and other special packing according to customer's requirement
Delivery Details : Ready to ship,1-5 days after payment
After-sale service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
Samples
You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.
Packaging shipping
1. If order is not big enough, we will provide Door To Door service, we cooperate with UPS,DHL,FEDEX,TNT all year round,we gurantee that the shipping price that we offer to you is the most favorable price among so many suppliers in China.
2. By Air or By Sea through your forwarder is acceptable, if you have no forwarder in China, we also could find you cost-effective forwarder for your reference.
