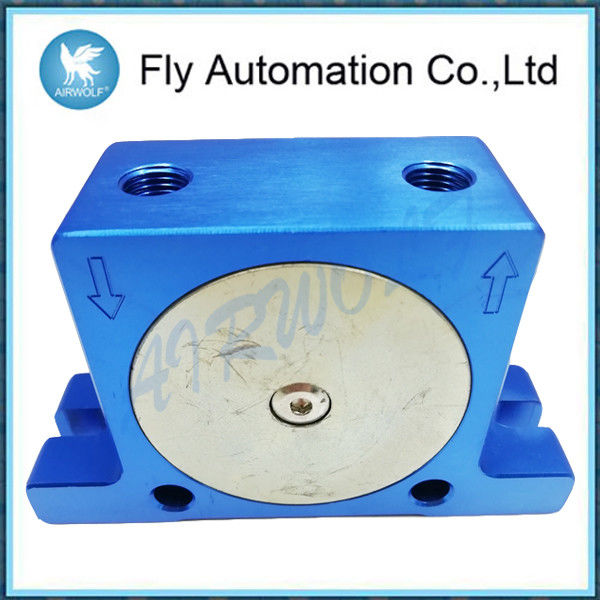

2 Bar - 6 Bar Working Pressure Pneumatic Vibrator Quick Coupling High Performance

2 Bar - 6 Bar Working Pressure Pneumatic Vibrator Quick Coupling High Performance

  • 2 Bar - 6 Bar Working Pressure Pneumatic Vibrator Quick Coupling High Performance
  • 2 Bar - 6 Bar Working Pressure Pneumatic Vibrator Quick Coupling High Performance
  • 2 Bar - 6 Bar Working Pressure Pneumatic Vibrator Quick Coupling High Performance
  • 2 Bar - 6 Bar Working Pressure Pneumatic Vibrator Quick Coupling High Performance
2 Bar - 6 Bar Working Pressure Pneumatic Vibrator Quick Coupling High Performance
Product Details:
Place of Origin: China
Certification: CE
Model Number: S25
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Delivery Time: within 1-30 working days after payment
Payment Terms: T/T , Western Union
Supply Ability: 1000 pcs
Contact Now
Detailed Product Description
Model Code: S25 Applies To: Animal Feed Milling
DUTY CYCLE: Continuous WORKING PRESSURE: 2 Bar To 6 Bar
PNEUMATIC CIRCUIT: Filter + Flow Control Valve + Lubrification + 3/2 Ways Valve AIR SUPPLY QUALITY: Class 5.4.4.
WORKING TEMPERATURE: -20 °C To 200 °C TECHNOLOGY: Rotary Vibration - High Frequency
High Light:

2 Bar Pneumatic Vibrator

,

6 Bar Pneumatic Vibrator

,

Quick Coupling Pneumatic Vibrator

1. Product name: S25 Sreies S pneumatic quick coupler Oli Pneumatic Roller Vibrator Plastics Processing



2. S - ROTARY PNEUMATIC VIBRATORS - BALL

APPLICATION: Hopper and silo - screen - vibrating table - chute

POWDER: Dry and granular

PROBLEM SOLVING: Friction reduction - separation



3. Drawing

Drawing

DIMENSIONAL SPECIFICATIONS
MODEL A B C D E F IN-OUT WEIGHT
mm in mm in mm in mm in mm in mm in kg lb
S8 50 2 86 3.4 68 2.7 12 0.5 20 0.8 7 0.3 1/8" BSPP 0.13 0.29
S10 50 2 86 3.4 68 2.7 12 0.5 20 0.8 7 0.3 1/8" BSPP 0.13 0.9
S13 65 2.6 113 4.5 90 3.5 16 0.6 25 1 9 0.4 1/4" BSPP 0.26 0.57
S16 65 2.6 113 4.5 90 3.5 16 0.6 28 1.1 9 0.4 1/4" BSPP 0.3 0.66
S20 80 3.2 128 5.1 104 4.1 16 0.6 33 1.3 9 0.4 1/4" BSPP 0.53 1.17
S25 80 3.2 128 5.1 104 4.1 16 0.6 38 1.5 9 0.4 1/4" BSPP 0.63 1.39
S30 100 3.9 160 6.3 130 5.1 20 0.8 45 1.8 11 0.4 3/8" BSPP 1.13 2.49
S36 100 3.9 160 6.3 130 5.1 20 0.8 50 2 11 0.4 3/8" BSPP 1.34 2.95



4. Data

MODEL VIBRATION F.C. MAX AIR CONSUMPTION
Vpm 2 bar (29 psi) 4 bar (58psi) 6 bar (87 psi) 2 bar (29 psi) 4 bar (58psi) 6 bar (87 psi)
2 bar
(29 psi)
4 bar
(58psi)
6 bar
(87 psi)
KG LB KG LB KG LB l/min CF/min l/min CF/min l/min CF/min
S8 25500 31000 35000 13 29 26 57 36 79 83 2.9 145 5.1 195 6.9
S10 22500 28000 34000 25 55 47 103 71 156 92 3.2 150 5.3 200 7.1
S13 15000 18500 22500 32 70 55 121 87 191 94 3.3 158 5.6 225 7.9
S16 13000 17000 19500 45 99 80 176 110 242 122 4.3 200 7.1 280 9.9
S20 10500 14500 16500 72 158 122 268 172 378 130 4.6 230 8.1 340 12
S25 9200 12200 14000 93 205 157 345 205 451 160 5.7 290 10.2 425 15
S30 7800 9700 12500 151 332 247 543 321 706 215 7.6 375 13.2 570 20.1
S36 7300 9000 10000 206 453 315 693 405 891 260 9.2 475 16.8 675 23.8



5. Samples
You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.



6. Features

DUTY CYCLE: Continuous

WORKING PRESSURE: From 2 bar to 6 bar (from 29 psi to 87 psi)

PNEUMATIC CIRCUIT: Filter + flow control valve + lubrification + 3/2 ways valve

AIR SUPPLY QUALITY: Class 5.4.4.

WORKING TEMPERATURE: From -20 °C to 200 °C (from -4 °F to 392 °F)

MAX NOISE LEVEL: 90 dB(a)

TECHNOLOGY: Rotary vibration - high frequency

ATEX: II 2D C TX, II 2G C TX

MATERIAL: Aluminium body and zinc plate cover



7. Suit for

PRODUCT SERIES APPLICATIONS POWDERS FEATURES BENEFITS
S Silos Dry powders Filter sleeve cleaning Economical
Hoppers Granules Suitable for outdoor use Low air consumption
Piping Plastics Resistant to oxidation High frequency vibration
Chutes Sand Atex II2G c Tx
Compacting Ashes Atex II2D c Tx
  Cement
  Lime



8. Applies to

1. Animal Feed Milling

2. Flour Milling

3. Paint & Varnish Processing

4. Plastics Processing



9. Product show

2 Bar - 6 Bar Working Pressure Pneumatic Vibrator Quick Coupling High Performance
