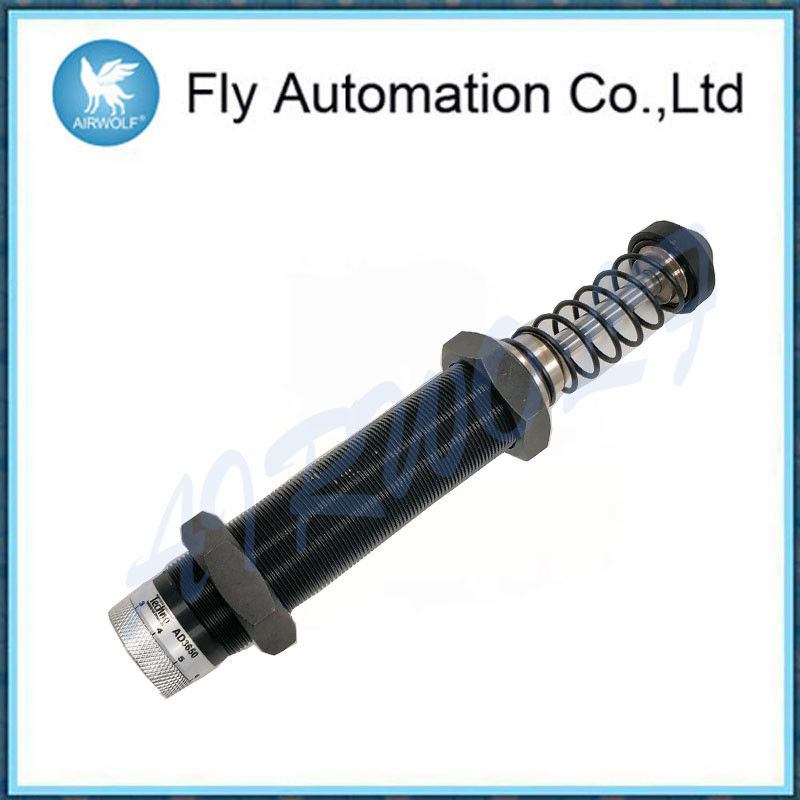

3.2m/S Pneumatic Air Cylinders Carbon Steel Shock Absorber Buffering Airtac Type

3.2m/S Pneumatic Air Cylinders Carbon Steel Shock Absorber Buffering Airtac Type

  • 3.2m/S Pneumatic Air Cylinders Carbon Steel Shock Absorber Buffering Airtac Type
  • 3.2m/S Pneumatic Air Cylinders Carbon Steel Shock Absorber Buffering Airtac Type
  • 3.2m/S Pneumatic Air Cylinders Carbon Steel Shock Absorber Buffering Airtac Type
  • 3.2m/S Pneumatic Air Cylinders Carbon Steel Shock Absorber Buffering Airtac Type
3.2m/S Pneumatic Air Cylinders Carbon Steel Shock Absorber Buffering Airtac Type
Product Details:
Place of Origin: China
Brand Name: Techno
Certification: CE
Model Number: AD3650
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Delivery Time: within 1-30 working days after payment
Payment Terms: T/T , Western Union
Supply Ability: 1000 pcs
Contact Now
Detailed Product Description
Material: Carbon Steel Stroke: 50 Mm
Working Temperature: -10 ~+85 ℃ Max.impact Speed (m/s): 3.2
High Light:

pneumatic actuator cylinder

,

smc pneumatic cylinder

AD3625 Carbon steel Hydraulic Shock Absorber Buffering Length 208.8 mm


Advantage

1.Adopt import oil seal:Automatically improve sealing performance with increasing pressure to prevent pistons from suffocating each other
2.The outer tube is made of medium carbon steel:Medium carbon steel material hardness than ordinary aluminum alloy, impact resistance is stronger, better wear resistance, quality and durability
3.High precision speed control knob:AD series adjustable pressure, through the bottom knob to achieve continuous and stable braking, pressure regulation precision, long life
4.Precise uniform motion:The precision of machining can be improved by time continuous stability control


Application range of Hydraulic Bumper
1.Mechanical arm, take-out arm, feeding equipment, screen printer, pad printer, conveyor, carrying machinery,electronic machinery.
2.Car and locomotive manufacture industry, carpentry, construction machinery, aviation and traffic machinery.
3.Civil defense military, medical treatment equipment, medi-care sanitation and hygiene equipment, environmentprotection equipment.
4.Laboratory, teaching equipment, machine tool, food packaging machinery, rubber and plastic machinery.





Function of Hydraulic Shock Absorber
1.It enhances the productivity: As shock absorber can smoothly stop the impaction, therefore it greatly enhancesthe production efficiency of the machine and equipment in HF and high speed operation.
2.It prolongs the mechanical life: As the buffer absorbs the impaction energy, it greatly reduces the impact and shockof kinetic object to the machine. It avoids the mechanical damage due to any impact I shock. It reduces the repaircost, prolongs the service life of the machine, brings about less after sale services.
3. It enhances the product quality: As the buffer removes the shocking noise and destructive impact by the impaction,it brings about the smooth machine I equipment operation. Therefore it naturally enhances the product quality.



Attention

1.It is strictly prohibited to knock or collide the shaft, which may easily lead to bending of the shaft. The surface of the shaft should not be covered with sewage or dirty oil, and the shaft must operate in a clean environment.Otherwise, it will increase the probability of product leakage and reduce the service life of the product.

2.It is strictly prohibited to spray paint on the pipe teeth and axis, otherwise it will affect the heat dissipation effect and oil leakage.

3.Do not burn: because the product is hydraulic oil, put into the fire will lead to fire or cause accidents.

4.It is strictly prohibited to use in vacuum and high pressure environment, otherwise it will damage the machine



Specification

Model Stroke(mm) Every time Max.absorbing energy E (Nm) Hour Max. absorbing energy Ec (Nm/hr) Max.impact speed (m/s) Working temperature(℃) Weight/Kg
AD1412 12 20 24000 3.2 -10 ~+85 0.09
AD1416 16 22 26400 3.2 -10 ~+85 0.09
AD2020 20 39 30000 3.6 -10 ~+85 0.23
AD2030 30 40 35000 3.6 -10 ~+85 0.245
AD2525 25 85 51000 3.6 -10 ~+85 0.35
AD2540 40 100 84000 3.6 -10 ~+85 0.455
AD3625 25 150 90000 3.2 -10 ~+85 0.955
AD3650 50 300 108000 3.2 -10 ~+85 1.1



Structure

3.2m/S Pneumatic Air Cylinders Carbon Steel Shock Absorber Buffering Airtac Type

3.2m/S Pneumatic Air Cylinders Carbon Steel Shock Absorber Buffering Airtac Type



After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
