Stroke 16 Mm Airtac Pneumatic Rotary Cylinder AD1416 Black Color

Stroke 16 Mm Airtac Pneumatic Rotary Cylinder AD1416 Black Color

    • Stroke 16 Mm Airtac Pneumatic Rotary Cylinder AD1416  Black Color
    • Stroke 16 Mm Airtac Pneumatic Rotary Cylinder AD1416  Black Color
    • Stroke 16 Mm Airtac Pneumatic Rotary Cylinder AD1416  Black Color
    • Stroke 16 Mm Airtac Pneumatic Rotary Cylinder AD1416  Black Color
  • Stroke 16 Mm Airtac Pneumatic Rotary Cylinder AD1416  Black Color

    Product Details:

    Place of Origin: China
    Brand Name: Techno
    Certification: CE
    Model Number: AD1416

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Negotiation
    Packaging Details: Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
    Delivery Time: within 1-30 working days after payment
    Payment Terms: T/T , Western Union
    Supply Ability: 1000 pcs
    Contact Now
    Detailed Product Description
    Material: Carbon Steel Color: Black
    Head Of The Buffer: Nylon Slide Number: 300 W
    Working Temperature: -10 ~+85 ℃

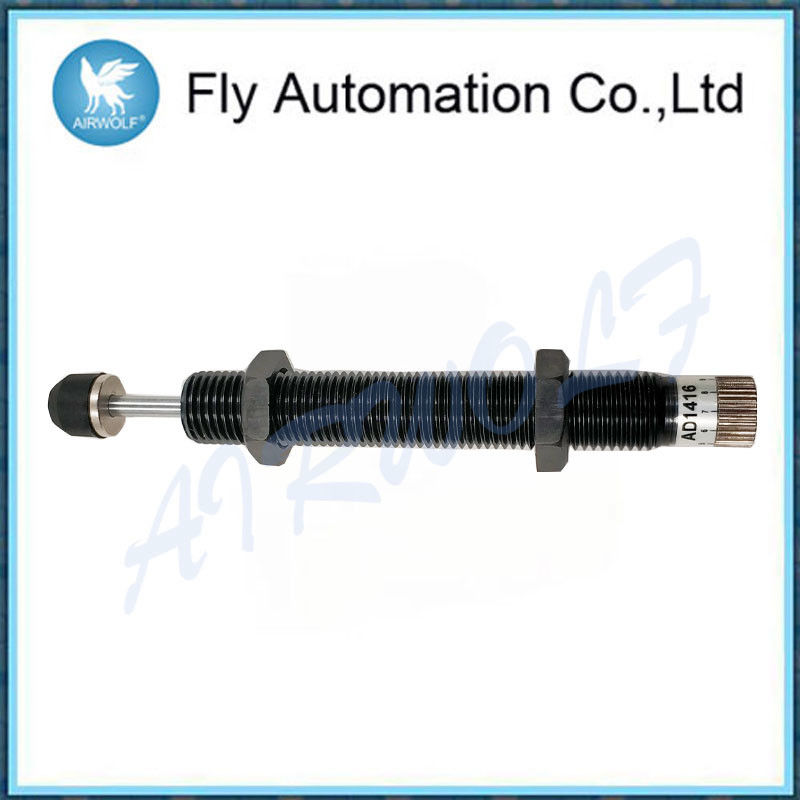

    Airtac AD1416 pneumatic rotary cylinder Black Carbon steel stroke 16 mm

    Features

    1.Adopt import oil seal:Automatically improve sealing performance with increasing pressure to prevent pistons from suffocating each other.

    2.The outer tube is made of medium carbon steel:Medium carbon steel material hardness than ordinary aluminum alloy, impact resistance is stronger, better wear resistance, quality and durability.

    3.High precision speed control knob:AD series adjustable pressure, through the bottom knob to achieve continuous and stable braking, pressure regulation precision, long life.



    Hydraulic Shock Absorber Buffering Effect
    All moving objects have kinetic energy, which depends on the weight and speed of the moving object.To stop a moving object, a device must be installed that ACTS directly on the object: springs, rubber, air registers, or dampers, all of which are cheap but have the fatal disadvantage of bouncing when struck by an external force.The hydraulic buffer adopts the hydraulic principle. The hydraulic oil is extruded through a specially designed orifice to produce heat, which is transferred and distributed to the air through the metal to realize the conversion of kinetic energy into heat energy



    Specification

    Model Stroke(mm) Every time Max.absorbing energy E (Nm) Hour Max. absorbing energy Ec (Nm/hr) Max.impact speed (m/s) Working temperature(℃) Weight/Kg
    AD1412 12 20 24000 3.2 -10 ~+85 0.09
    AD1416 16 22 26400 3.2 -10 ~+85 0.09
    AD2020 20 39 30000 3.6 -10 ~+85 0.23
    AD2030 30 40 35000 3.6 -10 ~+85 0.245
    AD2525 25 85 51000 3.6 -10 ~+85 0.35
    AD2540 40 100 84000 3.6 -10 ~+85 0.455
    AD3625 25 150 90000 3.2 -10 ~+85 0.955
    AD3650 50 300 108000 3.2 -10 ~+85 1.1



    Structure

    Stroke 16 Mm Airtac Pneumatic Rotary Cylinder AD1416  Black Color

    Stroke 16 Mm Airtac Pneumatic Rotary Cylinder AD1416  Black Color



    Attention

    1.It is strictly prohibited to knock or collide the shaft, which may easily lead to bending of the shaft. The surface of the shaft should not be covered with sewage or dirty oil, and the shaft must operate in a clean environment.Otherwise, it will increase the probability of product leakage and reduce the service life of the product.

    2.It is strictly prohibited to spray paint on the pipe teeth and axis, otherwise it will affect the heat dissipation effect and oil leakage.

    3.Do not burn: because the product is hydraulic oil, put into the fire will lead to fire or cause accidents.

    4.It is strictly prohibited to use in vacuum and high pressure environment, otherwise it will damage the machine



    After-sale Service
    We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.


    Warranty
    All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
    If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
