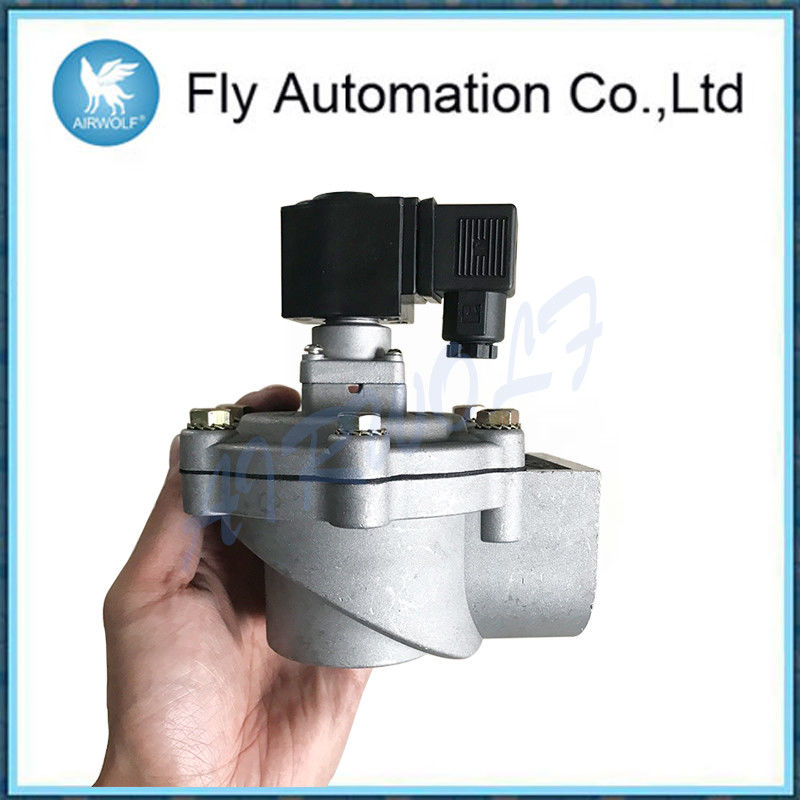

Outdoor Single Type Normally Closed Solenoid Valve JISI40 1-1/2 Inch

Outdoor Single Type Normally Closed Solenoid Valve JISI40 1-1/2 Inch

    • Outdoor Single Type Normally Closed Solenoid Valve JISI40 1-1/2 Inch
    • Outdoor Single Type Normally Closed Solenoid Valve JISI40 1-1/2 Inch
    • Outdoor Single Type Normally Closed Solenoid Valve JISI40 1-1/2 Inch
    • Outdoor Single Type Normally Closed Solenoid Valve JISI40 1-1/2 Inch
  • Outdoor Single Type Normally Closed Solenoid Valve JISI40 1-1/2 Inch

    Product Details:

    Place of Origin: China
    Brand Name: JOIL
    Certification: CE
    Model Number: JISI40

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Negotiation
    Packaging Details: Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
    Delivery Time: within 1-30 working days after payment
    Payment Terms: T/T , Western Union
    Supply Ability: 1000 pcs
    Contact Now
    Detailed Product Description
    Model: JISI40 Material: Aluminium Alloy
    Size: 1-1/2" Color: Silvery
    Material Of Oil Seal: NBR/VITON

    JISI40 Screw Integrated Type Valve Silvery Aluminium Alloy 1-1/2 Inch Single Type Pulse Valve

    Description

    It's a normal closed double diaphragm dust removal pulse valve. These valves, used for cleaning filter elements in air filtration systems, are specifically designed for flat surfaces like square header tanks and flanged tank. Like traditional model, with threaded and coupling connection, activating divided into two types:
    Integrated: Electronic control type
    Remote: Air control type
    A full range of accessory items are available including pilots, coils, diaphragm, spring.


    Specification

    For outdoor use, use aluminum die-casting material body.
    Diaphragm is manufactured with special nylon and synthetic rubber, so it is excellent even in any temperature and environment.



    MODEL C.V
    FACTOR
    OPERATING PRESSURE ORIFICE
    A
    B C D E F G H I Diaphragm
    QTY
    Weight
    (kg)
    MIN MAX
    JISI 20 14.3 0.5 8 3/4" 19 82 50 117 64 14 35 70 1 0.5
    JISI 25 24.4 0.5 8 1" 23 102 61.5 127.4 80 16 35 70 1 0.75
    JISI 32 47 0.5 8 1-1/4" 29.5 130 76 144 121 18 35 70 1 1.15
    JISI 40(S) 58.4 0.5 8 1-1/2" 31.5 130 76 150 121 20 35 70 1 1.2
    JISI 40(D) 60.9 0.5 8 1-1/2" 31.5 130 76 186 121 20 35 70 2 1.4
    JISI 50 97.6 0.5 8 2" 40 185 111 207.7 167 28 35 70 2 2.5
    JISI 65 145.4 0.5 8 2-1/2" 48.5 210 125 223.7 190 28 35 70 2 3.6
    JISI 80 230.3 0.5 8 3" 57.5 220 118 252.6 214 28 35 70 2 4.36



    Outdoor Single Type Normally Closed Solenoid Valve JISI40 1-1/2 Inch

    Outdoor Single Type Normally Closed Solenoid Valve JISI40 1-1/2 InchOutdoor Single Type Normally Closed Solenoid Valve JISI40 1-1/2 Inch





    Quality Standards
    The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount, but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance, according to the original quality standards, during warranty with product problems, need confirmation testing by the manufacturer, the supplier to be solved, the demand side due to storage, use, poor maintenance caused by lower-quality product, and not raise objections.


    Warranty
    All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
    If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
