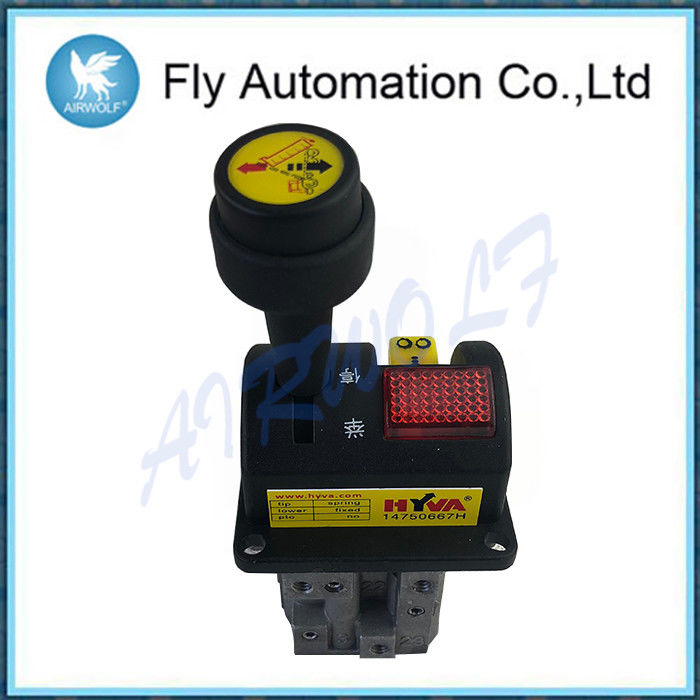

CE Approval Dump Truck Controls With Spring Return BKQF34-A HYVA 14750667H

CE Approval Dump Truck Controls With Spring Return BKQF34-A HYVA 14750667H

    • CE Approval Dump Truck Controls With Spring Return BKQF34-A HYVA 14750667H
    • CE Approval Dump Truck Controls With Spring Return BKQF34-A HYVA 14750667H
    • CE Approval Dump Truck Controls With Spring Return BKQF34-A HYVA 14750667H
    • CE Approval Dump Truck Controls With Spring Return BKQF34-A HYVA 14750667H
  • CE Approval Dump Truck Controls With Spring Return BKQF34-A HYVA 14750667H

    Product Details:

    Place of Origin: China
    Brand Name: OEM
    Certification: CE
    Model Number: BKQF34-A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Negotiation
    Packaging Details: Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
    Delivery Time: within 1-30 working days after payment
    Payment Terms: T/T , Western Union
    Supply Ability: 1000 pcs
    Contact Now
    Detailed Product Description
    Model Code: BKQF34-A Color: Silvery
    Body Material: Aluminum Name: Control Valve

    BKQF34-A HYVA 14750667H Dump Truck Valve Control Valve



          part no.             description
    147 50 665 H      control pneumatic - 1 - TF/LF
    147 50 667 H      control pneumatic - 1 - TS/LF

    Explanation of codes:
      1 = control has 1 section
    TF = lever is fixed in tipping end position
    TS = lever has a spring return in tip position
    LF = lever is fixed in lowering end position



    Dimension

    CE Approval Dump Truck Controls With Spring Return BKQF34-A HYVA 14750667H



    specifications
    Max. pressure 12 bar
    Min. pressure 5 bar
    Max. temperature +80℃
    Min temperature - 40℃
    Connections 1, 21, 22 G1/8”
    Connection 3 M5
    Mounting holes M6



    Attention

    Use always rubber grommets to protect air tubes and to prevent that dust and water enters the cabin.
    For trouble free life of the entire pneumatic system the air system must be free from water.
    The air control should be mounted in such a way that:
    1 it is easy to reach by the operator.
    2 it is no obstacle when entering or leaving the cabin.
    3 it is clear from any moving parts such as drivers seat and closed door.
    The air exhaust connection must be brought outside the cabin to prevent air entering the cabin, which gives the following disadvantages:
    1 noise
    2 blown up sand and dust
    3 when alcohol is used to prevent the pneumatic system against frost the alcohol vapour will enter the cabin
    Make sure that air tubes:
    1 are not too close to sharp objects.
    2 are clear from moving parts.
    3 are clear from exhaust and compressor lines.
    4 can not get kinked.
    5 are not too long.



    Product show



    CE Approval Dump Truck Controls With Spring Return BKQF34-A HYVA 14750667H

    Quality Standards :
    The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections



    Samples
    You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.



    After-sale service
    We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
