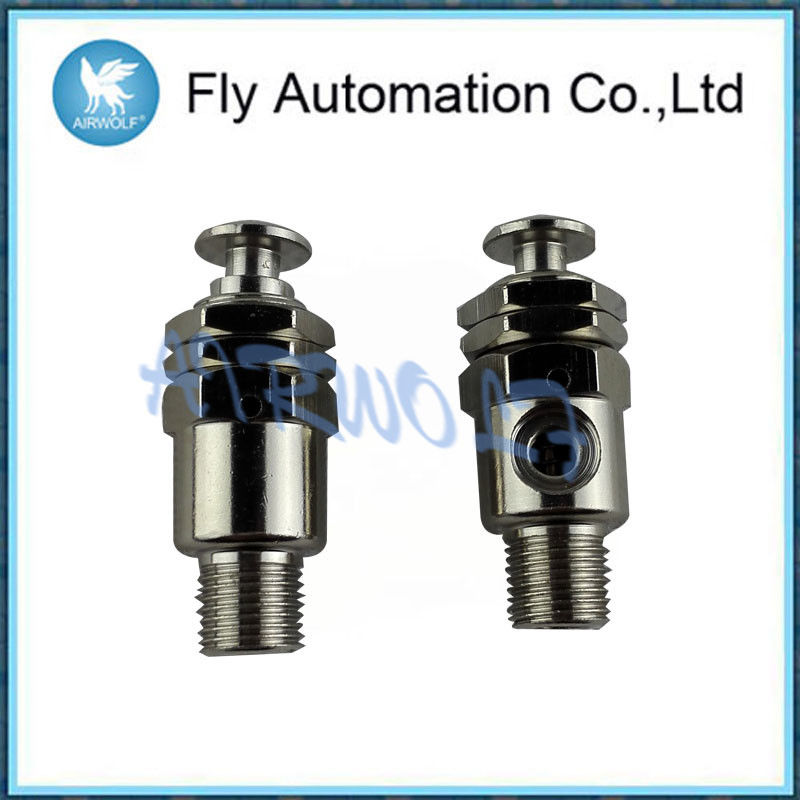

Push Button Type aluminium alloy Pneumatic Manual Valve TAC-2P TAC-3P TAC-4P TAC-4PP Nickel Plated

Push Button Type aluminium alloy Pneumatic Manual Valve TAC-2P TAC-3P TAC-4P TAC-4PP Nickel Plated

    • Push Button Type aluminium alloy  Pneumatic Manual Valve TAC-2P TAC-3P TAC-4P TAC-4PP Nickel Plated
    • Push Button Type aluminium alloy  Pneumatic Manual Valve TAC-2P TAC-3P TAC-4P TAC-4PP Nickel Plated
    • Push Button Type aluminium alloy  Pneumatic Manual Valve TAC-2P TAC-3P TAC-4P TAC-4PP Nickel Plated
    • Push Button Type aluminium alloy  Pneumatic Manual Valve TAC-2P TAC-3P TAC-4P TAC-4PP Nickel Plated
    • Push Button Type aluminium alloy  Pneumatic Manual Valve TAC-2P TAC-3P TAC-4P TAC-4PP Nickel Plated
    • Push Button Type aluminium alloy  Pneumatic Manual Valve TAC-2P TAC-3P TAC-4P TAC-4PP Nickel Plated
  • Push Button Type aluminium alloy  Pneumatic Manual Valve TAC-2P TAC-3P TAC-4P TAC-4PP Nickel Plated

    Product Details:

    Place of Origin: China
    Brand Name: Techno
    Certification: CE
    Model Number: TAC-2P TAC-3P TAC-4P TAC-4PP

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Negotiation
    Packaging Details: Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
    Delivery Time: within 1-30 working days after payment
    Payment Terms: T/T , Western Union
    Supply Ability: 1000 pcs
    Contact Now
    Detailed Product Description
    Model Code: TAC-2P TAC-3P TAC-4P TAC-4PP Body Material: Nickel Plated
    Name: Mechanical Valve Fluid Temperature: -10~60 C
    Color: Yellow

    KOGANGEI nickel plated TAC-2P TAC-3P TAC-4P TAC-4PP TAC AIR VALVES Push Button Type Valves


     Material
    Body . . . . . . . . . . . . . . . . . . . . Brass (nickel plated)
    Stem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Stainless steel
    O-ring. . . . . . . . . . . . . . . . . . . . . . . . . Synthetic rubber



    Explanation of operation

    Actuation of valve A (3P) extends the rod of cylinder D, which then retracts and stops. It is often used for reliable reciprocating operation.
    1 Pressing valve A supplies air to the pilot operator (34A) on the right portion of valve B (4PP), which then switches valve B.
    2 As a result, the air previously filled in the rod side (left side) of the cylinder is exhausted from R2 of valve B. At the same time, air entering the
    cylinder head side (right side),extends the cylinder rod forward.
    3 At this time, when the air passes through the speed controller (SCOF) to enter the cylinder, it opens the check valve inside the SCO-F and
    quickly fills in. For exhaust,however, the air is choked and the cylinder rod extends while decelerating.


    Specifications



    ITEM 2P 3P 4P 4PP
    Operation type Push button spring return Double push
    button holding type
    Number of ports 2 3 5
    Port size M5×0.8
    Media Air
    Operating pressure range 0~0.9 {0~9.2} [0~131]
    Proof pressure 1.35 {13.8} [196]
    Operating temperature range 0~60 [32~140]
    Effective area 1.8 2.5
    Flow coefficient 0.08 0.12
    Mounting direction Any
    Maximum operating frequency Hz 5
    Valve stroke mm 2.4
    Lubrication Required {Turbine Oil Class 1 [ISO VG32] or equivalent}
    Mass 35 30 66 71

    Push Button Type aluminium alloy  Pneumatic Manual Valve TAC-2P TAC-3P TAC-4P TAC-4PP Nickel Plated

    Push Button Type aluminium alloy  Pneumatic Manual Valve TAC-2P TAC-3P TAC-4P TAC-4PP Nickel Plated
    Delivery
    1. If the products we have in store, we will send it out ASAP after payment.
    2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
    3. We have a variety of ways to deliver goods, usually DHL, Fedex, TNL will be normal ways, If you require use of a courier, we can do it.
    4. Also we can send by your delivery acount if you want.
