Black Aluminum Die Casting Lock Up Valve 0.7KG YT-400D YT-405 YT-430 YT-435 YT-430D

Black Aluminum Die Casting Lock Up Valve 0.7KG YT-400D YT-405 YT-430 YT-435 YT-430D

    • Black Aluminum Die Casting Lock Up Valve 0.7KG YT-400D YT-405 YT-430 YT-435 YT-430D
    • Black Aluminum Die Casting Lock Up Valve 0.7KG YT-400D YT-405 YT-430 YT-435 YT-430D
    • Black Aluminum Die Casting Lock Up Valve 0.7KG YT-400D YT-405 YT-430 YT-435 YT-430D
    • Black Aluminum Die Casting Lock Up Valve 0.7KG YT-400D YT-405 YT-430 YT-435 YT-430D
  • Black Aluminum Die Casting Lock Up Valve 0.7KG YT-400D YT-405 YT-430 YT-435 YT-430D

    Product Details:

    Place of Origin: China
    Brand Name: YTC
    Certification: CE
    Model Number: YT-400D

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Negotiation
    Packaging Details: Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
    Delivery Time: within 1-30 working days after payment
    Payment Terms: T/T , Western Union
    Supply Ability: 1000 pcs
    Contact Now
    Detailed Product Description
    Model Code: YT-400D Name: Lock Up Valve
    Size: 1/4" Ambient Temp.: -20~70℃

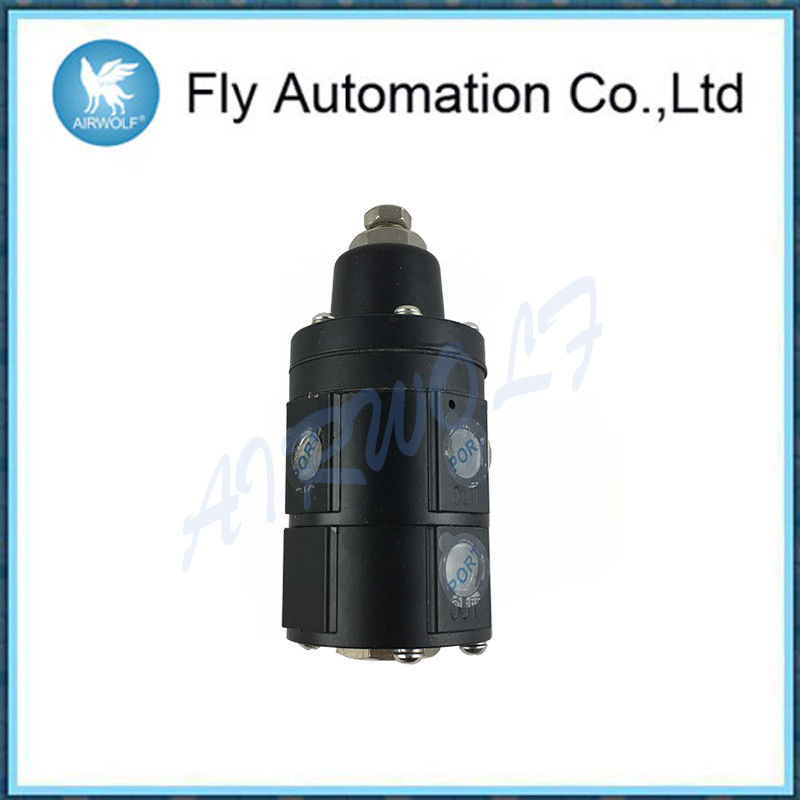

    Korea YTC 0.7KG YT-400D YT-405 YT-430 YT-435 YT-430D Black Aluminum Diecasting Lock Up Valve



    Lock-up valve YT-400 senses the main supply pressure and shuts down the air flow when the pressure is lower than setting.

    1. Compact size-NO bracket is required.
    2. Detects small variation of the pressure-below 0.01MPa.



    Item/Type YT-400 YT-405 YT-430 YT-435
    Signal Pressure 0.14~0.7MPa(1.4~7bar)
    Max Supply Pressure Max. 1MPa(10bar)
    Lock-up Pressure Max. 0.7MPa(7bar)
    Differential Pressure Below 0.01MPa(0.1bar)
    Ambient Temp. -20~70℃(-4~158℉)(Standard type)
    Flow Capacity(Cv) 0.9 1.8
    Air Connection PT(NPT)1/4 NPT 1/4 NPT 3/8
    Signal Connection PT(NPT)1/4 NPT 1/4 NPT 1/4
    Material Aluminum
    Diecasting
    Stainless
    Steel 316
    Aluminum
    Diecasting
    Stainless
    Steel 316
    Weight Single 0.45kg(1.0lb) 1.3kg(2.2lb) 1.3kg(2.2lb) 3.3kg(7.3lb)
    Double 0.7kg(1.5lb) 1.5kg(3.3lb) 2.3kg(5.1lb) 5.8kg(12.8lb)




    Black Aluminum Die Casting Lock Up Valve 0.7KG YT-400D YT-405 YT-430 YT-435 YT-430DBlack Aluminum Die Casting Lock Up Valve 0.7KG YT-400D YT-405 YT-430 YT-435 YT-430D
