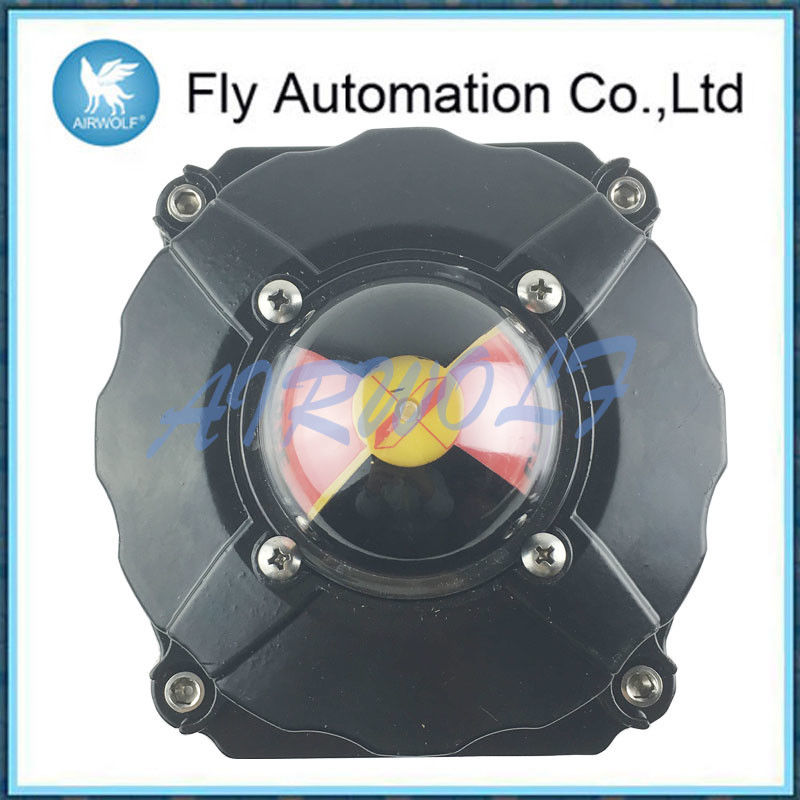

Explosion Proof Position Monitoring Switch ITS300 Series Black Color

Explosion Proof Position Monitoring Switch ITS300 Series Black Color

    • Explosion Proof Position Monitoring Switch ITS300 Series Black Color
    • Explosion Proof Position Monitoring Switch ITS300 Series Black Color
    • Explosion Proof Position Monitoring Switch ITS300 Series Black Color
    • Explosion Proof Position Monitoring Switch ITS300 Series Black Color
  • Explosion Proof Position Monitoring Switch ITS300 Series Black Color

    Product Details:

    Place of Origin: China
    Brand Name: HKC
    Certification: CE
    Model Number: ITS300

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Negotiation
    Packaging Details: Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
    Delivery Time: within 1-30 working days after payment
    Payment Terms: T/T , Western Union
    Supply Ability: 1000 pcs
    Contact Now
    Detailed Product Description
    Name: Explosion Proof Position Monitoring Switches Temperature: -20℃~ 80℃
    Model: ITS300 Color: Black

    Explosion Proof position monitoring switches ITS300 Series Black

    Description

    ITS 300 series are designed suitable for valve and actuatorsin hazardous area application, having compact but robustconstruction conforms to IEC60079-0:2007,
    IEC60079-1 :2007, EN60079-0:2006 and EN60079- 1:2007,also suitable in Zone 1 and 2, and ingress protection IP67,Standard aluminum housing provides reliable explosion proofperformance.



    Feature

    Rigid and compact design constructed from aluminumalloy die-casting capable of operating even in arduous conditions.



    Specification

    Specification Standard Option
    Enclosure Explosion proof Ex d IIC T6 Gb, IP67, O-ring sealed IP 68
    Outside coating Epoxy-Polyester outside against corrosion Nylon Coating
    Special color Coating
    Ambient temperature -20℃ ~+80℃
    (Explosion proof type: -20℃~+60℃)
    Higher(~100℃)
    and lower (-40℃) temperature
    Cable entries 2 - PF3/4, other standard threads (NPT3/4, M20x1.5, M25x1.5)
    Terminal block 8 nos of terminal strips
    (6 for switches, 2 for solenoid valve power)

    Position indicator Dome type 0°~90° Others(3 way L-port, T-port)
    Mounting bracket Stainless steel acc. to VDI/VDE3845
    NAMUR, SS1, SS2 as standard
    SS3, MT1 as option
    Switches(Sensors) 2-SPDT mechanical switch(Form C) DPDT Switches
    Proximity sensors(P & F, Autonics)
    Magnetic sensors
    Position transmitter
    (output 0~1Kohm, 4-20mA DC)



    Dimension

    Explosion Proof Position Monitoring Switch ITS300 Series Black Color



    Delivery
    1. If the products we have in store, we will send it out ASAP after payment.
    2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
    3. Also we can send by your delivery acount if you want.
    4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.

    Competitive Advantage

    Our product features Our Services Guarantee:
    1) Competitive price 1) Prompt respond (Reply with 24 hours)
    2) Good quality 2) Free Samples (Customer pay for the delivery cost)
    3) Professional Packaging 3) Registration support.
    4) Produce according to Customers’ instruction 4) Photos/videos are available during production.
    5) None delay shipment 5) Loading inspection, and send loading photos before shipment.



    After-sale Service
    We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.


    Warranty
    All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
    If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
