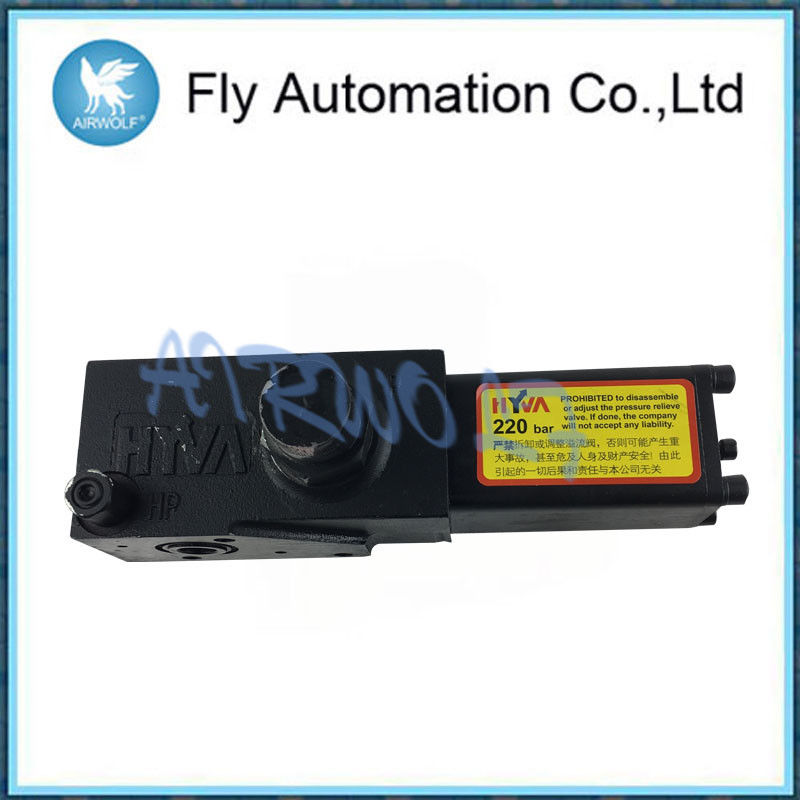

PT1220-220 Black Aluminum alloy stainless steel Single Pressure Dump Truck controls PT 1220 Valve Tipping valves

PT1220-220 Black Aluminum alloy stainless steel Single Pressure Dump Truck controls PT 1220 Valve Tipping valves

    • PT1220-220 Black Aluminum alloy stainless steel Single Pressure Dump Truck controls PT 1220 Valve Tipping valves
    • PT1220-220 Black Aluminum alloy stainless steel Single Pressure Dump Truck controls PT 1220 Valve Tipping valves
    • PT1220-220 Black Aluminum alloy stainless steel Single Pressure Dump Truck controls PT 1220 Valve Tipping valves
    • PT1220-220 Black Aluminum alloy stainless steel Single Pressure Dump Truck controls PT 1220 Valve Tipping valves
    • PT1220-220 Black Aluminum alloy stainless steel Single Pressure Dump Truck controls PT 1220 Valve Tipping valves
  • PT1220-220 Black Aluminum alloy stainless steel Single Pressure Dump Truck controls PT 1220 Valve Tipping valves

    Product Details:

    Place of Origin: China
    Brand Name: OEM
    Certification: CE
    Model Number: PT1220-220

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: EXW USD60-90
    Packaging Details: carton,pallet or according to customers' requirement
    Delivery Time: within 1-30 working days after payment
    Payment Terms: T/T , Western Union,paypal
    Supply Ability: 1000 pcs per month
    Contact Now
    Detailed Product Description
    Working Temperature: -40ºC-/+80ºC Working Medium: Hydraulic Oil
    Model Code: PT1220-220 Material: Aluminum Alloy And Stainless Steel
    Color: Black Work Pressure: 150Bar To 220Bar

    PT1220-220 Black Aluminum alloy stainless steel Single Pressure Dump Truck controls PT 1220 Valve Tipping valves





    The Hyva PT 1220 & 2220 tipping valves are constructed with a pilot operated pressure relief valve with fixed pressure setting (by means of cartridges), which protects both the cylinder and the pump for overpressure. This tipping valve is also designed to allow proportional lowering, which is of main importance when lowering (half) loaded bodies.



    This tipping valve can be directly fitted to the Hyva oil tank, which reduces the number of hoses and fittings and consequently the possibility of leakages.

    Additionally the Hyva PT 1220 & 2220 tipping valve is unique in the market as it has a peak pressure relief valve, to prevent serious damages in case of peak pressures.



    The Hyva PT-valves & DHM valves can be mounted in line or directly on the oil tank. The PT-valve and the DHM-valve can be mounted on the same block. The PT-valves are controlled with a Hyva air control or manually. The DHM-valves are controlled by a cable control or by a Hyva air control.



    Specification



    1) Power: Hydraulic

    2) Material: Aluminum

    3) Automatically locked in stop and fall position

    4) Working medium:Hydraulic oil

    5) Operating pressure(Bar): 150Bar to 220Bar

    6) Working temperature: -40ºC-/+80ºC

    7) Color: Black or Red

    8) Weight: 6.5kg





    Part no.  Description Max. press.
    (Bar)
    Ports Flow
    (L/min)
    Weight
    (kg)
    Kit no.
    147 67 315 Valve PT - 1220 - 150 150 G1" 220 6.4 EC150
    ED150
    147 67 317 Valve PT - 1220 - 170 170 G1" 220 6.4 EC170
    ED170
    147 67 319 Valve PT - 1220 - 190 190 G1" 220 6.4 EC190
    ED190
    148 67 322 Valve PT - 1220 - 220 220 G1" 220 6.4 EC220
    ED220
    148 67 325 Valve PT - 1220 - 250 250 G1" 220 6.4 EC250
    ED250
    148 67 328 Valve PT - 1220 - 280 280 G1" 220 6.4 EC280
    ED280
    149 67 335 Valve PT - 1220 - 350 350 G1" 220 6.4 EC350
    ED350





    Drawings:

    PT1220-220 Black Aluminum alloy stainless steel Single Pressure Dump Truck controls PT 1220 Valve Tipping valves






    1   : pump connection ( P )
    2A : return tank connection (T)
    2B : alternative return tank connection (T)
    3   : cylinder connection (C)
    4   : pneumatic connection of air control - tip
    5   : pneumatic connection of air control - lower
    6   : regulator for adjustment of lowering speed
    7   : pressure gauge point
    8   : cartridge

    Picture Details
    PT1220-220 Black Aluminum alloy stainless steel Single Pressure Dump Truck controls PT 1220 Valve Tipping valvesPT1220-220 Black Aluminum alloy stainless steel Single Pressure Dump Truck controls PT 1220 Valve Tipping valvesPT1220-220 Black Aluminum alloy stainless steel Single Pressure Dump Truck controls PT 1220 Valve Tipping valves




    Delivery
    1. If the products we have in store, we will send it out ASAP after payment.
    2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
    3. Also we can send by your delivery acount if you want.
    4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.



    Warranty
    All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
    If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
