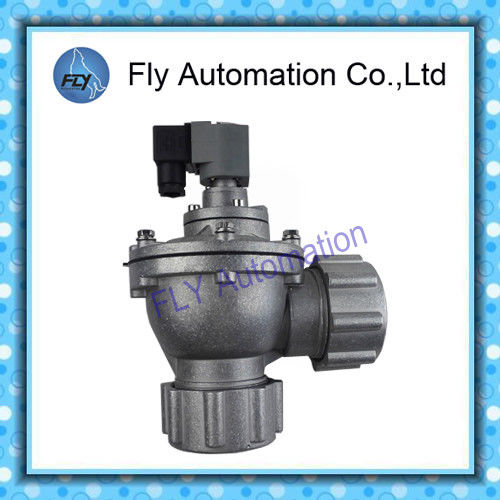

1-1/2 inch Australia Goyen DD series Pulse Jet Valves CA45DD010-300 CA45DD010-305

1-1/2 inch Australia Goyen DD series Pulse Jet Valves CA45DD010-300 CA45DD010-305

  • 1-1/2 inch Australia Goyen DD series Pulse Jet Valves CA45DD010-300 CA45DD010-305
  • 1-1/2 inch Australia Goyen DD series Pulse Jet Valves CA45DD010-300 CA45DD010-305
  • 1-1/2 inch Australia Goyen DD series Pulse Jet Valves CA45DD010-300 CA45DD010-305
  • 1-1/2 inch Australia Goyen DD series Pulse Jet Valves CA45DD010-300 CA45DD010-305
  • 1-1/2 inch Australia Goyen DD series Pulse Jet Valves CA45DD010-300 CA45DD010-305
1-1/2 inch Australia Goyen DD series Pulse Jet Valves CA45DD010-300 CA45DD010-305
Product Details:
Place of Origin: China
Brand Name: Goyen or OEM
Certification: ISO 9001,CE
Model Number: CA45DD
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: price negotiable
Packaging Details: carton
Delivery Time: 5 working days
Payment Terms: T/T in advance,Western Union,Paypal,Credit card
Supply Ability: 2000 pcs/month
Contact Now
Detailed Product Description
Material: Aluminium Pressure: 0.15~0.85 MPa
Temperature: 0-80 ℃ Diaphragm: Nitrile Or Viton
High Light:

pulse solenoid valve

,

pulse jet valve

CA45DD010-300 CA45DD010-305 1-1/2 inch Australia Goyen DD series Pulse Jet Valve



Description:

Very high performance diaphragm valve with flanged inlet port and slide seal outlet port for easy valve installation and removal.

Available with integral pilot or as remotely piloted valve.Outlet at 90°.



Operation

Recommeded time

between pulses:1 minute or greater

Recommended,

On time range:50-500ms



Installation:

1.Prepare inlet flange and blowtube pipes to suit valve specification.

Avoid installing valves underneath the tank.

2.Ensure tank and Pipes are free from dirt,rust or other particulate.

3.Ensure supply air is clean and dry.

4.Mount valves to inlet flange and blowtube to valves with all seals in place.

Tighten flange bolts to 10Nm(7.4ft-ibs) Ensure blowtube is oushed all the way into the valve outlet.

5.Tanks and pipes must be independently restrained from valve.

6.Make electrical connections to solenoid or connect RCA pilot port to pilot valve.(RCA valve only).

7.Apply moderate pressure to system and check for installation leaks.

8.Fully pressurise system.

9.Test fire and listen for proper actuation and crisp pulse noise.



Ordering Code Port Size Orifice Flow Value Weight (kg)
G Threaded mm Kv Cv CA RCA
CA25DD/RCA25DD 1" 25 20 23 1.25 1.01
CA45DD/RCA45DD 1 1/2" 40 44 51 2.30 2.15



Construction
Body Aluminum (Diecast)
Washer SS 304
Armature SS 430FR
Core and Plugnut Stainless steel
Core Spring SS 304
Sealing & disc NBR(nitrile/buna-n)
Screws SS302
Diaphragm PA-6(Standard), Viton
Shading coil Copper
Connector DIN43650A
Voltage DC: 24V, AC: 24V, 48V, 110V, 230V
Working Temperature -20 to +85℃ Nitrile seals -29 to +232℃ Viton seals
Protection Class IP65
Coil Insulation Class F
Working Pressure 0.35-0.85Mpa
Recommended on time range 50-500ms
Recommended time between pulses 1 minute or Less

1-1/2 inch Australia Goyen DD series Pulse Jet Valves CA45DD010-300 CA45DD010-305 0



Product show:

1-1/2 inch Australia Goyen DD series Pulse Jet Valves CA45DD010-300 CA45DD010-305 1



Quality Standards
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount, but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance, according to the original quality standards, during warranty with product problems, need confirmation testing by the manufacturer, the supplier to be solved, the demand side due to storage, use, poor maintenance caused by lower-quality product, and not raise objections.



Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. We have a variety of ways to deliver goods, usually DHL, Fedex, TNL will be normal ways, If you require use of a courier, we can do it.
4. Also we can send by your delivery acount if you want.



Serves time
0:00 - 23:59
From Monday to Sunday
