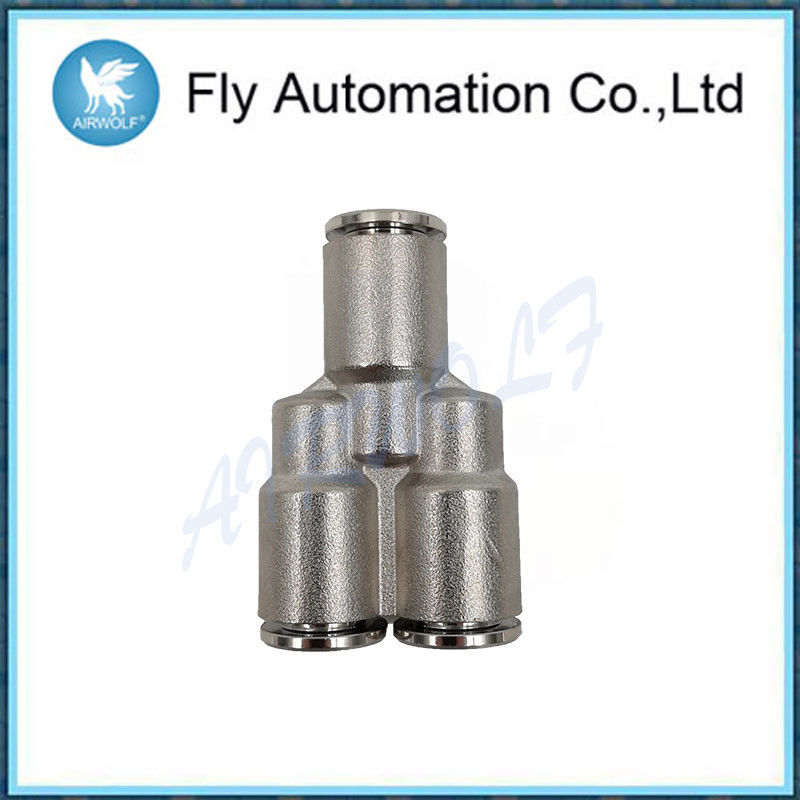

Y Union Pneumatic Connector 6560 Series , Nickel Plated Brass Pneumatic Fittings

Y Union Pneumatic Connector 6560 Series , Nickel Plated Brass Pneumatic Fittings

  • Y Union Pneumatic Connector 6560 Series , Nickel Plated Brass Pneumatic Fittings
  • Y Union Pneumatic Connector 6560 Series , Nickel Plated Brass Pneumatic Fittings
  • Y Union Pneumatic Connector 6560 Series , Nickel Plated Brass Pneumatic Fittings
Y Union Pneumatic Connector 6560 Series , Nickel Plated Brass Pneumatic Fittings
Product Details:
Place of Origin: CHINA
Brand Name: CAMOZZI
Certification: CE
Model Number: 6560 Series
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Delivery Time: within 1-10 working days after payment
Payment Terms: T/T , Western Union, PayPal
Supply Ability: 1000 pcs /day
Contact Now
Detailed Product Description
Model: 6560 Series Port Size: 6 Mm
Color: Silvery Temperature: -20°C ~ 80°C
Material: Nickel-plated Brass
High Light:

flexible tube fittings

,

pneumatic fittings and tubing

Y Union CAMOZZI Pneumatic Connectors 6560 Series NBR O-Ring Nickel-plated Brass



Fittings threads: metric (M3, M5, M6, M7), BSP (G1/8, G1/4, G3/8, G1/2, G3/4),

                           BSPT (R1/8, R1/4, R3/8, R1/2)



GENERAL DATA
Diameters ø 4 - 5 -6 - 8 - 10 - 12 - 14 - 16 mm
Micro models: ø 3 - 4 - 6 - 8 - 10 mm
Threads GAS conical ISO 7 (BSPT) GAS cylindrical ISO 228 (BSP); M5-M6 and other metric threads available on request; NPT on request
Micro models: M3 - M5 - M7 - G1/8 - G1/4
Pressure standard models: min -0,9 bar - max 16 bar (see tubing)
models with self-retaining device: 0 ÷ 16 bar
Tube to connect Rilsan, PA 6-11-12, Polyethylene, PU, Hytrel Polyester
Fluid compressed air (for other types of fluid, contact our engineers
Temperature -20°C ÷ 80°C (see the technical data of tubing used)
Micro models: -10°C ÷ 80°C (see the technical data of tubing used)
Materials standard models: body and collet in nickel-plated brass, O-Ring in NBR,
thread seals in PTFE - NBR - PA
models with self-retaining device: body and collet in nickel-plated brass,
poppet valve in brass, spring in stainless steel, O-Ring in NBR,
thread seals in PTFE





Y Union Pneumatic Connector 6560 Series , Nickel Plated Brass Pneumatic Fittings 0

DIMENSIONS
Mod. A C F L M Weight (g)
6560 4 4 5 18 33 9 19
6560 6 6 7 24.5 39 12.5 30
6560 8 8 9 28.5 44 14.5 42
6560 10 10 15.5 32 53.5 16 63

Y Union Pneumatic Connector 6560 Series , Nickel Plated Brass Pneumatic Fittings 1Y Union Pneumatic Connector 6560 Series , Nickel Plated Brass Pneumatic Fittings 2Y Union Pneumatic Connector 6560 Series , Nickel Plated Brass Pneumatic Fittings 3


Y Union Pneumatic Connector 6560 Series , Nickel Plated Brass Pneumatic Fittings 4
