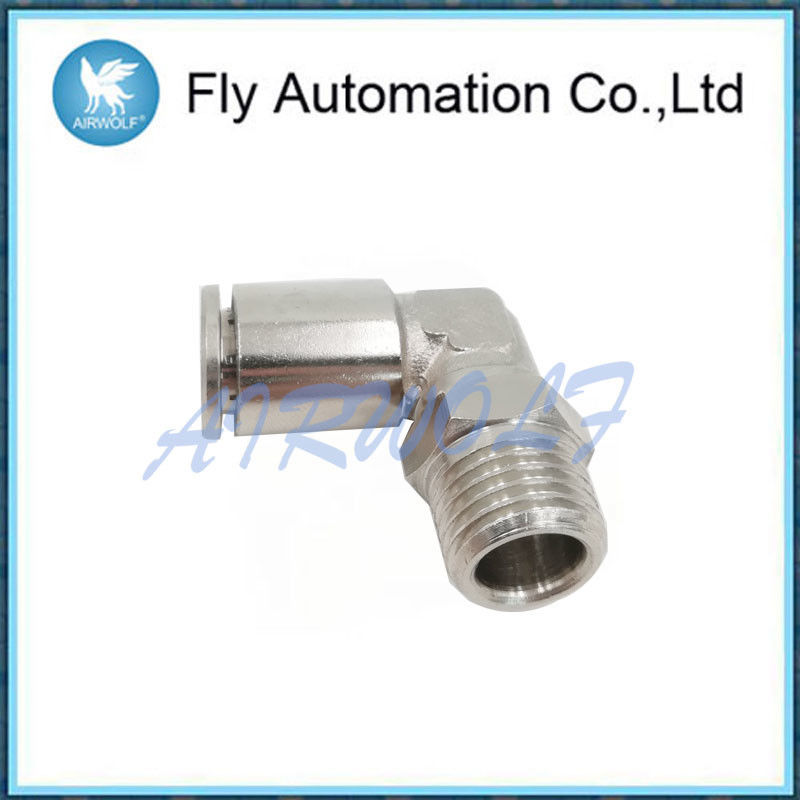

X6522 Pneumatic Tube Fittings Bsp Swivel Elbow Connector Right Angle Pose

X6522 Pneumatic Tube Fittings Bsp Swivel Elbow Connector Right Angle Pose

  • X6522 Pneumatic Tube Fittings Bsp Swivel Elbow Connector Right Angle Pose
  • X6522 Pneumatic Tube Fittings Bsp Swivel Elbow Connector Right Angle Pose
  • X6522 Pneumatic Tube Fittings Bsp Swivel Elbow Connector Right Angle Pose
X6522 Pneumatic Tube Fittings Bsp Swivel Elbow Connector Right Angle Pose
Product Details:
Place of Origin: CHINA
Brand Name: CAMOZZI
Certification: CE
Model Number: X6522
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Delivery Time: within 1-10 working days after payment
Payment Terms: T/T , Western Union
Supply Ability: 2000 pcs /day
Contact Now
Detailed Product Description
Model: X6522 Port Size: G1/8
Material: Stainless Steel Structure: Right Angle
High Light:

pneumatic fittings and tubing

,

brass tube fittings

X6522 BSP Swivel Elbow G1/8" KMF Alimentary Drinking water The right angle pose



Materials 1 = Body
2 = Seals
3 = Supporting ring
4 = Clamping gripper
5 = Locking bushing
6 = Release bushing
Stainless steel 316L
FKM Alimentary
Stainless steel 316L
Stainless steel 301
Stainless steel 316L
Stainless steel 316L
Threads GAS conical ISO 7 (BSPT)
GAS cylindrical ISO 228 (BSP)
Pressure max 18 bar (see tubing)
Tube to connect PA 6-12, Rilsan PA11, Polyethylene,
PU, Polyester Hytrel
Diameters 4 - 6 - 8 -10 - 12 mm
Fluid compressed air and drinking water
(for other fluids, please contact our technicians)
Temperature -15°C ÷ 150°C
NOTE: for a better use of the fitting we recommend
to check the tubing specifications.



1.Series X6000 fittings have been designed to offer versatility and ease of installation without any compromise in quality or performance.


X6522 Pneumatic Tube Fittings Bsp Swivel Elbow Connector Right Angle Pose 0X6522 Pneumatic Tube Fittings Bsp Swivel Elbow Connector Right Angle Pose 1
