| Place of Origin: | China |
| Brand Name: | FESTO |

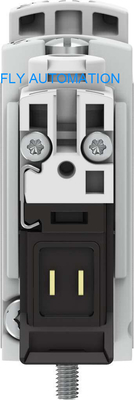

| Model Number: | VUVG-B14-T32U-AZT-F-1P3 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD60-80 |
| Packaging Details: | Plastic bag, Carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 100 pcs per month |
| Brand: | FESTO | Order No: | 566514 |
|---|---|---|---|
| Model: | VUVG-B14-T32U-AZT-F-1P3 | Valve Function: | 2x3/2-way, Open, Monostable |
| Product Weight: | 89 G | Ambient Temperature: | -5°C-60°C |
| High Light: | Open Pneumatic Solenoid Valves,566514 Pneumatic Solenoid Valves,Compact Festo Solenoid Valve |
||
About product
1.Compact universal valve.
2.Connection technology via electrical connection box (E-box).
3.High flow rate relative to its size.
Technical Data
| Valve function | 2x3/2-way, open, monostable |
| Type of actuation | Electric |
| Valve size | 14 mm |
| Standard nominal flow rate | 510 l/min ... 580 l/min |
| pneumatic working port | Flange |
| Operating voltage | 24V DC |
| Design | Piston gate valve |
| Type of reset | Pneumatic spring |
| Approval | RCM trademark c UL us - Recognized (OL) |
| Degree of protection | IP40 IP65 With plug socket |
| Nominal size | 4.6 mm |
| Exhaust-air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | optional |
| Manual override | Detenting Non-detenting Covered |
| Type of piloting | Pilot actuated |
| Pilot air supply | External |
| Symbol | 00992906 |
| lap | Positive overlap |
| Suitability for vacuum | no |
| Switching time off | 25 ms |
| Switching time on | 9 ms |
| Duty cycle | 100% |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Media temperature | -5°C-60°C |
| Pilot medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -5°C-60°C |
| Product weight | 89 g |
| Electrical connection | Via electrical sub-base |
| Type of mounting | On manifold rail |
| Note on materials | RoHS-compliant |
| Material seals | HNBR NBR |
| Material housing | Wrought aluminium alloy |
Another size
| Type | Order no | Price |
| VUVG-B14-T32C-AZT-F-1P3 | 566513 | 60-80 |
| VUVG-B14-T32U-AZT-F-1P3 | 566514 | 60-80 |
| VUVG-B14-T32H-AZT-F-1P3 | 566515 | 60-80 |
| VUVG-B14-T32C-MZT-F-1P3 | 574376 | 60-80 |
| VUVG-B14-T32U-MZT-F-1P3 | 574377 | 60-80 |
| VUVG-B14-T32H-MZT-F-1P3 | 574378 | 60-80 |
| VUVG-B14-M52-AZT-F-1P3 | 566516 | 60-80 |
| VUVG-B14-M52-MZT-F-1P3 | 574379 | 60-80 |
| VUVG-B14-B52-ZT-F-1P3 | 566517 | 60-80 |
| VUVG-B14-P53C-ZT-F-1P3 | 566518 | 60-80 |
| VUVG-B14-P53E-ZT-F-1P3 | 566519 | 60-80 |
| VUVG-B14-P53U-ZT-F-1P3 | 566520 | 60-80 |
There are so many products, welcome to enquire!
