Place of Origin: | China |
Brand Name: | FESTO |

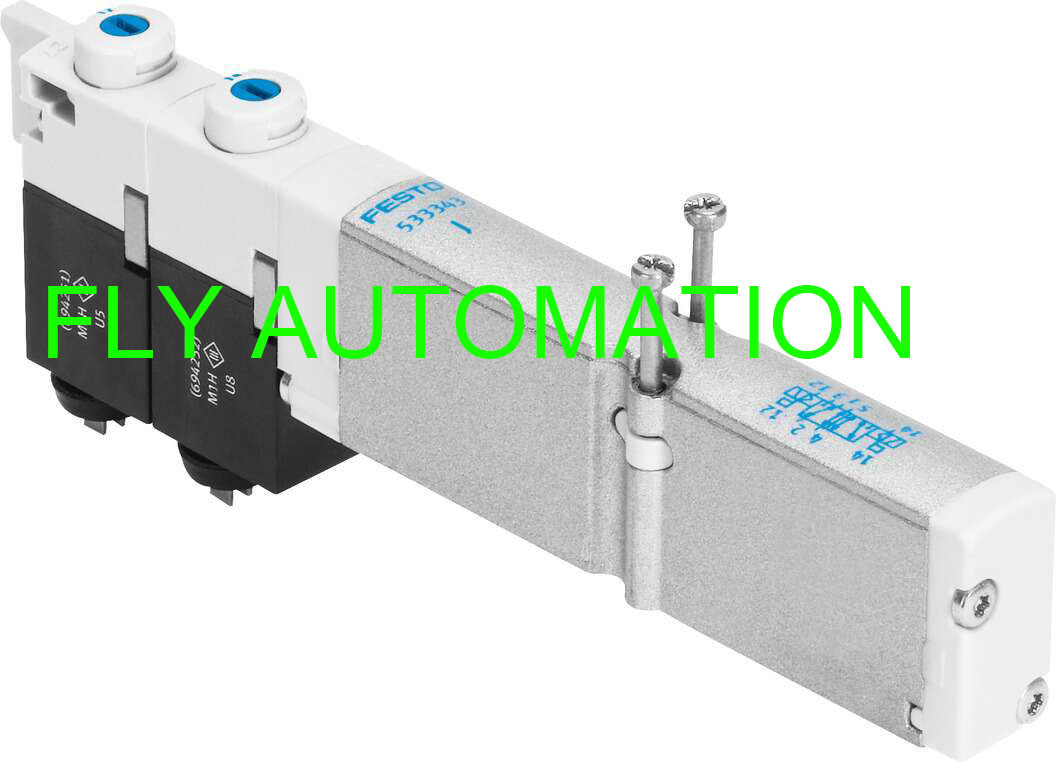

Model Number: | VMPA1-M1H-DS-PI |
Minimum Order Quantity: | 1pc |
---|---|
Price: | EXW USD60-80 |
Packaging Details: | Plastic bag, Carton |
Delivery Time: | 5-7 working days |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 200 pcs per month |
Order No: | 556841 | Model: | VMPA1-M1H-DS-PI |
---|---|---|---|
Brand: | FESTO | Symbol: | '00992877 |
Type Of Actuation: | Electric | Valve Function: | 2x2/2-way, Monostable, Closed |
High Light: | IP65 Electric Solenoid Air Valve,Pneumatic Solenoid Valves 556841,Die Cast Aluminium Festo Solenoid Valve |
About product
1.This simplifies planning, ordering and warehousing.
2.Easy to service thanks to replaceable valves and electronic modules.
3.Manual override either non-detenting, detenting or secured against unauthorised activation (concealed).
4.Secure wall mounting.
Technical Data
Valve function | 2x2/2-way, monostable, closed |
Type of actuation | Electric |
Valve size | 10 mm |
Standard nominal flow rate | 230 l/min |
Operating voltage | 24V DC |
Design | Piston gate valve |
Type of reset | Mechanical spring |
Approval | c UL us - Recognized (OL) |
Degree of protection | IP65 To IEC 60529 |
Sealing principle | Soft |
Mounting position | optional |
Manual override | Detenting Non-detenting |
Type of piloting | Pilot actuated |
Flow direction | Reversible |
Symbol | 00992877 |
lap | Positive overlap |
Signal status display | yes |
Suitability for vacuum | yes |
Standard nominal flow rate with QS-6 | 230 l/min |
Switching time off | 16 ms |
Switching time on | 14 ms |
Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
Corrosion resistance class CRC | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Storage temperature | -20°C-40°C |
Media temperature | -5°C-50°C |
Ambient temperature | -5°C-50°C |
Product weight | 56 g |
Type of mounting | With through-hole |
Note on materials | RoHS-compliant |
Material seals | NBR |
Material housing | Die-cast aluminium |
Another size as below
Type | Order no | Price |
VMPA1-M1H-D-PI | 533350 | USD60-80 |
VMPA14-M1H-D-PI | 573727 | USD60-80 |
VMPA2-M1H-D-PI | 537960 | USD60-80 |
VMPA1-M1H-DS-PI | 556841 | USD60-80 |
VMPA14-M1H-DS-PI | 575978 | USD60-80 |
VMPA2-M1H-DS-PI | 568657 | USD60-80 |
VMPA1-M1H-I-PI | 543605 | USD60-80 |
VMPA14-M1H-I-PI | 573728 | USD60-80 |
VMPA2-M1H-I-PI | 543703 | USD60-80 |
Design
There are so many products, welcome to enquire!
