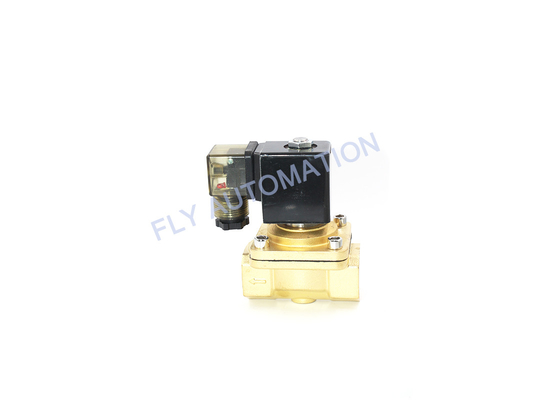

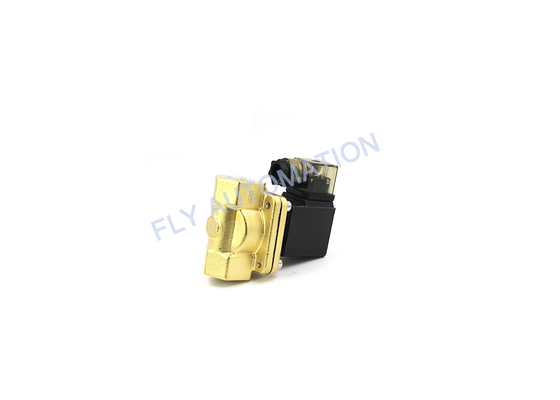

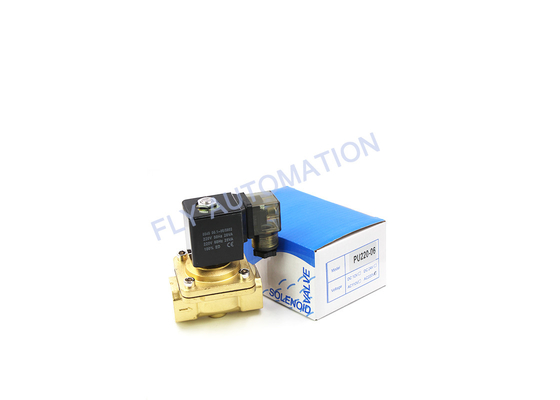

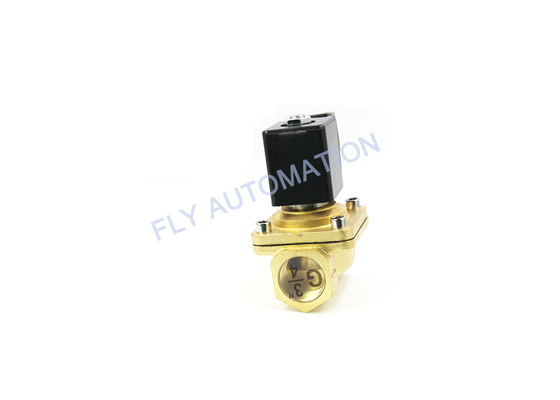

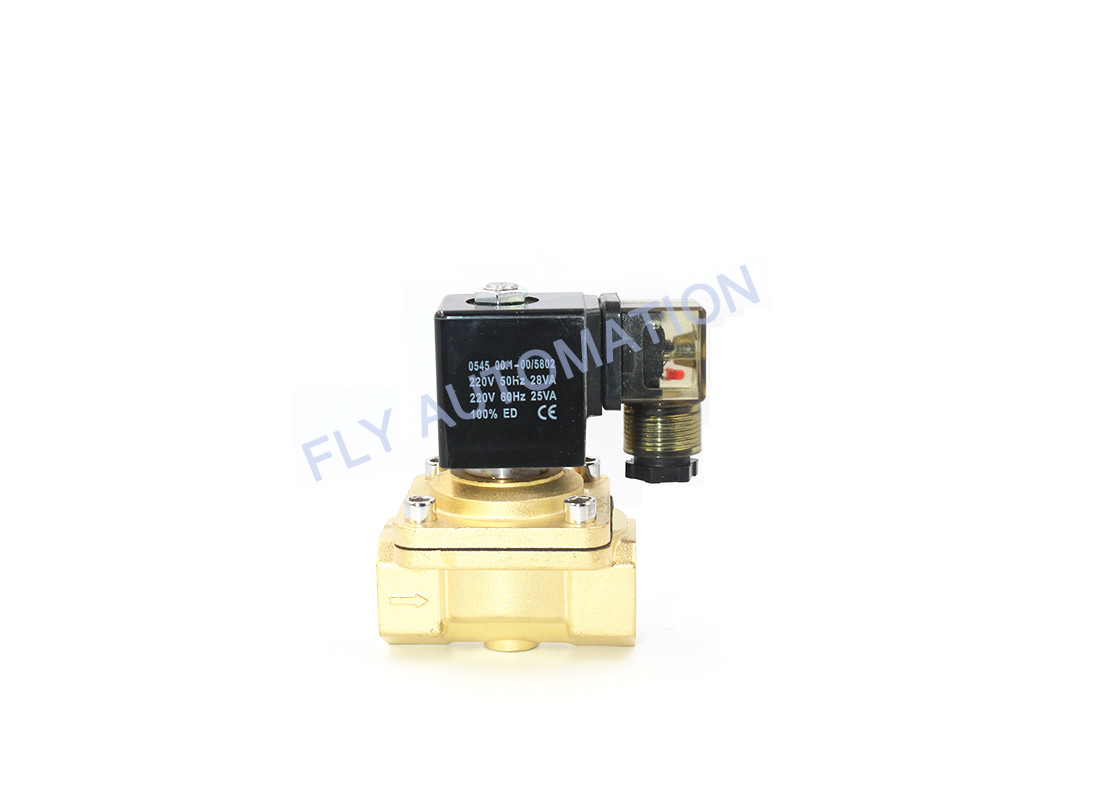

Trap 20mm Pu220-06 Water Solenoid Valves 6 Points Normally Closed Brass

Trap 20mm Pu220-06 Water Solenoid Valves 6 Points Normally Closed Brass

  • Trap 20mm Pu220-06 Water Solenoid Valves 6 Points Normally Closed Brass
  • Trap 20mm Pu220-06 Water Solenoid Valves 6 Points Normally Closed Brass
  • Trap 20mm Pu220-06 Water Solenoid Valves 6 Points Normally Closed Brass
  • Trap 20mm Pu220-06 Water Solenoid Valves 6 Points Normally Closed Brass
  • Trap 20mm Pu220-06 Water Solenoid Valves 6 Points Normally Closed Brass
  • Trap 20mm Pu220-06 Water Solenoid Valves 6 Points Normally Closed Brass
Trap 20mm Pu220-06 Water Solenoid Valves 6 Points Normally Closed Brass
Product Details:
Place of Origin: China
Brand Name: SHAKO
Certification: ISO Standand
Model Number: PU220-06
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiation
Packaging Details: Plastic bags, boxes, cartons, Pallets or As customer's requirement
Delivery Time: 7-10 working Days
Payment Terms: T/T, Western Union, MoneyGram Paypal
Supply Ability: 100 PCS Per Week
Contact Now
Detailed Product Description
Port Size: 3/4" Fluid: Compressed Air (light Oil, Water)
Orifice: 20mm Effective Area: 162mm
Operating Pressure Range DC: 0 ~5 Kgf/cm2 Fluid Temperature: -10℃ ~ 90℃
High Light:

6 points water solenoid valves

,

pu220-06 water solenoid valves

,

trap 20mm water solenoid valve

SHAKO Solenoid Valve Trap Valve PU220-06 6 Points Normally Closed Brass







Model PU220A-03 PU220A-04 PU220A-06 PU220A-08
Port size 3/8" 1/2" 3/4" 1"
Fluid Compressed air (light oil, water)
Orifice 13mm 13mm 20mm 25mm
Effective area 76mm2 76mm2 162mm2 220mm2
Acting Assisted lift
Construction Diaphragm
Operating pressure range AC 0~7kgf/cm2
Operating pressure range DC 0 ~6 kgf/cm2 0~5 kgf/cm2
Proof pressure 10 kgf/cm2
Body material / Flange material Forged Brass / Steel
Fluid temperature -10℃ ~ 90℃
Ambient temperature -10℃ ~ 60℃
Installation Horizontal
Duty cycle 100% ED
Coil type DIN
Protection class IP65 (DIN 40 050)
Insulation class F

Model PU220-02 PU220-04 PU220-06 PU220-08
Fluid Air, Water, Oil
Operation 220: Direct Drive Type 225: Guid Type
Type Normal close type
Aperture of fl ow rate(mm) 2.3 13 20 25
Cv value 0.18 4 8.6 11
Joint pipe bore G1/4″ G1/2'' G3/4'' G1''
Operation fl uid viscosity 50 CST Below
Operating pressure 0 ~ 0.7MPa
Max. Proof pressure 1.05MPa
Operating temperature -5 ~ +80C

Trap 20mm Pu220-06 Water Solenoid Valves 6 Points Normally Closed BrassTrap 20mm Pu220-06 Water Solenoid Valves 6 Points Normally Closed BrassTrap 20mm Pu220-06 Water Solenoid Valves 6 Points Normally Closed BrassTrap 20mm Pu220-06 Water Solenoid Valves 6 Points Normally Closed BrassTrap 20mm Pu220-06 Water Solenoid Valves 6 Points Normally Closed BrassTrap 20mm Pu220-06 Water Solenoid Valves 6 Points Normally Closed BrassTrap 20mm Pu220-06 Water Solenoid Valves 6 Points Normally Closed Brass

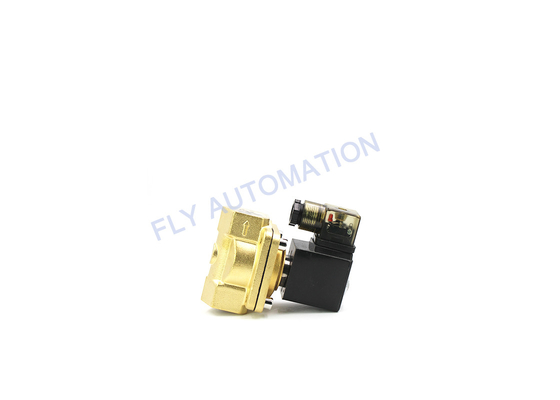

There is an arrow located on the valve body showing the direction of flow in which it blocks.

In order to prevent backflow when the valve is closed, a check valve must be installed.



FAQ
Q: Where is your factory ? Can we visit your factory?
A:Our factory is located in Ningbo City, Zhejiang Province,China, 17kms away from Ningbo Airport. We sincerely welcome customers to visit our company and factory.
Q: Could you add our logo on your products?
A: Yes,if your quantity more than 50pcs. we could add your logo on the products.
Q: How long is your delivery time?
A: Generally it is 1-2 days if the goods are in stock. or it will be 3-5 weeks if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ?
A: Yes, we could offer the sample for free charge, but do not pay the cost of express freight.
Q: What is your payment term and payment way?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment. Payment ways are : T/T, Western Union, Paypal, Alipay.
Q.What’s the shipping way?
A: For small packages, we will choose the door to door express, we cooperated with UPS,DHL,FEDEX,TNT more than 10 years,we gurantee the shipping cost that we offer to you will be the most favorable price among so many suppliers in China. We will send you the tracking number once we got it.
For big orders, By Air or By Sea through your shipping forwarder is acceptable, if you don't have forwarder in China, we will find the most cost-effective one for you.
If you have any other question, welcome contact us as below:
Whatsapp/Botim: 0086-15257858856 Skype: lovelyzlf@hotmail.com Email:airwolf@flyautomatic.com
Phone/Wechat: 0086-18957877902



After-sales clause:
One year quality guarantee Policy
We will check the goods quality before shipment. If there are some unexpected problems
happen, we hope to solve the problems with buyer through friendly in the following ways:
1, If it is quality problem, buyer can submit argue within 15days after receiving the goods,
buyer must provide photos or video and other evidence to seller for identify.
2, Man-made damaged, buyers take full responsibility.
3, Product quality processing program:
1) The buyer return the products for bad quality reasons for one year (not included those
damages coursed by shipping or Man-made damaged ). A 15% restocking fee is
assessed for any products returned in "used" condition. And then we will send a new
product to buyer and pay for the resend shipping cost.
2) If the goods (total price including shipping is less than 10USD) has quality problems, we
will resend a new product in buyer next order; if buyer don't plan to make a new order in
the near term, buyer can pay the resend shipping cost and ask to resend a new product. If
there is an issue with the products, please contact us– we will solve it as soon as we get
your email.
