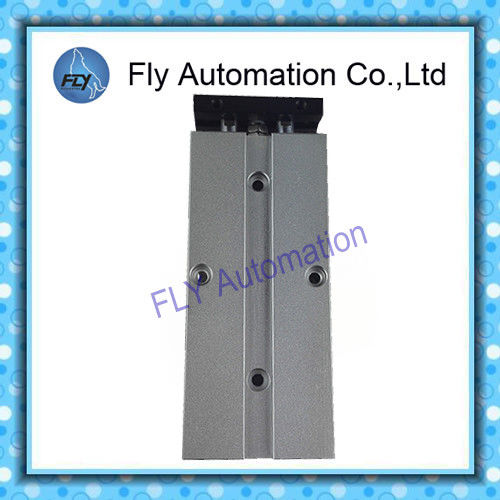

TN - 10x50S Pneumatic Double Acting Cylinder TR TN Series Rubber Bumper

TN - 10x50S Pneumatic Double Acting Cylinder TR TN Series Rubber Bumper

  • TN - 10x50S Pneumatic Double Acting Cylinder TR TN Series Rubber Bumper
  • TN - 10x50S Pneumatic Double Acting Cylinder TR TN Series Rubber Bumper
  • TN - 10x50S Pneumatic Double Acting Cylinder TR TN Series Rubber Bumper
  • TN - 10x50S Pneumatic Double Acting Cylinder TR TN Series Rubber Bumper
TN - 10x50S Pneumatic Double Acting Cylinder TR TN Series Rubber Bumper
Product Details:
Place of Origin: China
Brand Name: Airtac
Certification: CE
Model Number: TN-10x50S
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Delivery Time: within 1-7 working days after payment
Payment Terms: T/T , Western Union
Supply Ability: 1000 pcs
Contact Now
Detailed Product Description
Material: Aluminium Working Pressure: 0.1~0.7MPa
Working Temperature: -10 °C To +80 °C Proof Pressure: 1.5MPa
Cushion: Rubber Bumper Bore: 10mm
Stroke: 50mm
High Light:

pneumatic actuator cylinder

,

smc pneumatic cylinder

TN - 10x50S Pneumatic Double Acting Cylinder TR TN Series Rubber Bumper

Ordering Code: TN-10x50S, Any other types please contact freely.

Order code
TN - 10x50S Pneumatic Double Acting Cylinder TR TN Series Rubber Bumper 0

Note:
1) TN series are alll with magnet
2) When the thread is standard, the code is blank


Specifications

Bore size(mm) 10 16 20 25 32
Acting type Double acting
Fluid Air (to be filtered by 40 um filter element)
Operating pressure 0.1~1.0MPa(15~145psi)(1.0~10.0bar)
Proof pressure 1.5MPa(215psi)(15bar)
Temperature  °c -20~70
Speed range mm/s 30~500
Adjustable stroke mm  -10~0
Cushion type Bumper
Non-rotating tolerance ±0.4° ±0.3°
Port size M5x0.8 1/8"



Product Features
1.Enterprises standard is implemented.
2.Embeded installation and fixation mode saves the installation space.
3.It is good resistance to bending and twisting moments.
4. Mounting holes on three sides facilitates multi-position mounting.
5.Bumper in front of the barrel can adjust the stroke of cylinder and relieve impact.
6.Standard configuration of this series has magnet and the type without magnet is not available.



Material of the major parts

TN - 10x50S Pneumatic Double Acting Cylinder TR TN Series Rubber Bumper 1


Structures
TN - 10x50S Pneumatic Double Acting Cylinder TR TN Series Rubber Bumper 2TN - 10x50S Pneumatic Double Acting Cylinder TR TN Series Rubber Bumper 3TN - 10x50S Pneumatic Double Acting Cylinder TR TN Series Rubber Bumper 4


Installation Usage
1.When load changes in the work, the cylinder with abundant output capacity shall be ed.
2.Relative cylinder with high temperature resistance or corrosion resistance shall be chosen under the condition of high temperature or corrosion.
3.Necessary protection measure shall be taken in the environment with higher humidity, much dust or water drops,     oil dust and welding dregs.
4.Dirty substances in the pipe must be eliminated before cylinder is connected with pipeline to prevent the entrance of particles into the cylinder.
5.The medium used by cylinder shall be filtered to 40μm or below.
6.As both the front cover and piston are short, too large stroke can not be ed.
7.Anti-freezing measure shall be adopted under low temperature environment to prevent moisture freezing.
8.The cylinder shall avoid redial load in operation to maintain the normal and extend service life.
9.If the cylinder is dismantled and stored for a long time, please conduct anti-rust treatment to the surface. Anti-dust cap shall be ed into the inlet and outlet ports. As the precision of the manufacture and guide is high, Please do not dismantle the fixed block or cylinder cover .


Product show
TN - 10x50S Pneumatic Double Acting Cylinder TR TN Series Rubber Bumper 5TN - 10x50S Pneumatic Double Acting Cylinder TR TN Series Rubber Bumper 6TN - 10x50S Pneumatic Double Acting Cylinder TR TN Series Rubber Bumper 7TN - 10x50S Pneumatic Double Acting Cylinder TR TN Series Rubber Bumper 8

Quality Standards
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount, but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance, according to the original quality standards, during warranty with product problems, need confirmation testing by the manufacturer, the supplier to be solved, the demand side due to storage, use, poor maintenance caused by lower-quality product, and not raise objections.

Samples
You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.

After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

Products Shopping Guide
For example: you want to purchase a batch of cylinders but you don't know which type you are really want, so you can tell me all your requirement and I'll recommend to you.

Competitive Advantage

Our product features Our Services Guarantee:
1) Competitive price 1) Prompt respond (Reply with 24 hours)
2) Good quality 2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging 3) Registration support.
4) Produce according to Customers’ instruction 4) Photos/videos are available during production.
5) None delay shipment 5) Loading inspection, and send loading photos before shipment.


Warranty
All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
