SMC AS420 Standard Type One Way Air Flow Valve Large Flow In Line Speed Controller

SMC AS420 Standard Type One Way Air Flow Valve Large Flow In Line Speed Controller

  • SMC AS420 Standard Type One Way Air Flow Valve Large Flow In Line Speed Controller
  • SMC AS420 Standard Type One Way Air Flow Valve Large Flow In Line Speed Controller
  • SMC AS420 Standard Type One Way Air Flow Valve Large Flow In Line Speed Controller
SMC AS420 Standard Type One Way Air Flow Valve Large Flow In Line Speed Controller
Product Details:
Place of Origin: China
Brand Name: FLY or OEM
Certification: CE
Model Number: AS420-02 AS420-03 AS420-04
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: Negotiation
Packaging Details: Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Delivery Time: within 1-30 working days after payment
Payment Terms: T/T , Western Union
Supply Ability: 1000 pcs
Contact Now
Detailed Product Description
Order Code: AS420 Fluld: Air
Proof Pressure: 1.5Mpa Max. Operating Pressure: 1 Mapa
Min.operating Pressure: 0.05 Mpa Amblent And Fluld Temperature: -5 To 60℃
High Light:

one way air flow valve

,

air flow control valve

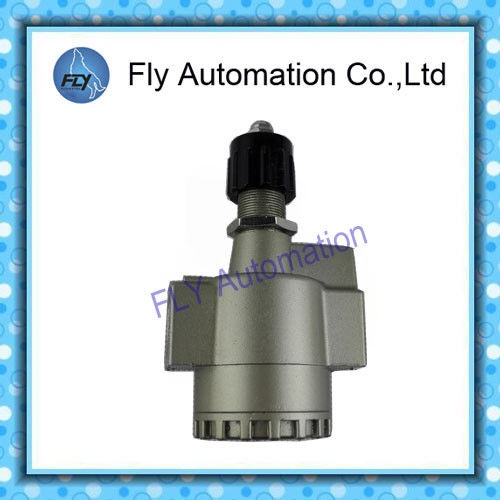

SMC AS420 Standard Type One Way Air Flow Valve Large Flow In Line Speed Controller

SMC series AS420 large flow air control valves.Able to control and set a constant speed easily.Speed may be accurately controlled even at low speed. Retainer prevents accidental loss of needle.



Quick Detail:


1.AS Series flow control throttle Check valve
2.Flow direction one way type

3.Directly pipe joint mounting,easy and convenient.

4.Body Material Aluminum Alloy
5.Port Size G1/4”,G3/8,G1/2”
6.Compact design,small volume,light weight
7.Easy operation,sensitive of Respond
8.High regulating accuracy
9.Large controll flow rate up to 1670L/Min
10.Long serive life



Model:

Model Port size

Free

flow

Controlled

flow

weight
(kgs)
Flow rate
(L/min)

Sonic
condu

ctance

s bar

Critical
press

ure ratio

Flow

rate
(L/min)

Sonic
cond

uctance

s bar

Critical
pressure ratio
AS420-02 1/4 2,500 6.9 0.25 3,600 10 0.45 0.34
AS420-03 3/8 5,000 13.9 4,800 13.3 0.42
AS420-04 1/2 6,600 18.3 6,700 18.6 0.65

SMC AS420 Standard Type One Way Air Flow Valve Large Flow In Line Speed Controller 0SMC AS420 Standard Type One Way Air Flow Valve Large Flow In Line Speed Controller 1SMC AS420 Standard Type One Way Air Flow Valve Large Flow In Line Speed Controller 2SMC AS420 Standard Type One Way Air Flow Valve Large Flow In Line Speed Controller 3SMC AS420 Standard Type One Way Air Flow Valve Large Flow In Line Speed Controller 4


Applications:

AS Series flow control Non-return valve widely use in the pneumatic system to adjust the working flow rate to meet with the functional requirement of pneumatic system.
AS series flow throttle valve use for control cylinder speed,system time delay,Lubricator low oil Volume,air cushion capacity of cylinder etc.





Competitive Advantage:



Our product features: Our Services Guarantee:
1) Competitive price 1) Prompt respond (Reply with 24 hours)
2) Good quality 2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging, 3) Registration support.
4) Produce according to Customers’ instruction 4) Photos/videos are available during production.
5) None delay shipment

5) Loading inspection, and send loading photos before shipment.





Quality Standards :



The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections



Warranty:



All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
