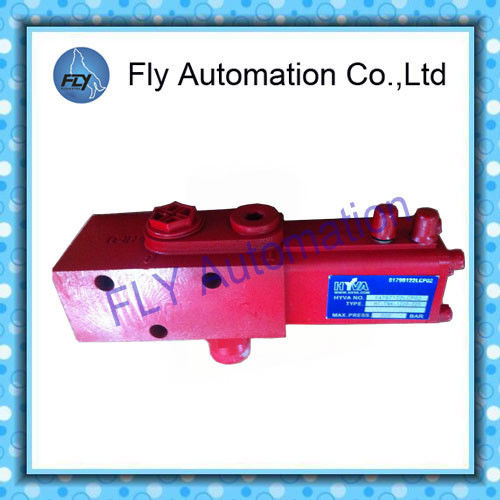

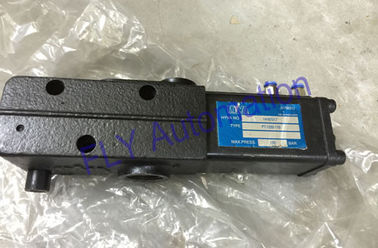

Single Pressure Dump Truck controls PT 1220 Valve Tipping valves

Single Pressure Dump Truck controls PT 1220 Valve Tipping valves

  • Single Pressure Dump Truck controls PT 1220 Valve Tipping valves
  • Single Pressure Dump Truck controls PT 1220 Valve Tipping valves
  • Single Pressure Dump Truck controls PT 1220 Valve Tipping valves
Single Pressure Dump Truck controls PT 1220 Valve Tipping valves
Product Details:
Place of Origin: China
Brand Name: Hyva
Certification: CE
Model Number: 14767315 14767317 14767319 14767322
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: EXW USD60-90
Packaging Details: carton,pallet or according to customers' requirement
Delivery Time: within 1-30 working days after payment
Payment Terms: T/T , Western Union,paypal
Supply Ability: 1000 pcs per month
Contact Now
Detailed Product Description
Working Temperature: -40ºC-/+80ºC Working Medium: Hydraulic Oil
Model Code: 14767315 14767317 14767319 14767322 Material: Aluminum Alloy And Stainless Steel
Color: Black Or Red Work Pressure: 150Bar To 220Bar
High Light:

automatic control valve

,

manual valve actuator



Single Pressure Dump Truck controls PT 1220 Valve / Tipping valves





The Hyva PT 1220 & 2220 tipping valves are constructed with a pilot operated pressure relief valve with fixed pressure setting (by means of cartridges), which protects both the cylinder and the pump for overpressure. This tipping valve is also designed to allow proportional lowering, which is of main importance when lowering (half) loaded bodies.



This tipping valve can be directly fitted to the Hyva oil tank, which reduces the number of hoses and fittings and consequently the possibility of leakages.

Additionally the Hyva PT 1220 & 2220 tipping valve is unique in the market as it has a peak pressure relief valve, to prevent serious damages in case of peak pressures.



The Hyva PT-valves & DHM valves can be mounted in line or directly on the oil tank. The PT-valve and the DHM-valve can be mounted on the same block. The PT-valves are controlled with a Hyva air control or manually. The DHM-valves are controlled by a cable control or by a Hyva air control.



Specification



1) Power: Hydraulic

2) Material: Aluminum

3) Automatically locked in stop and fall position

4) Working medium:Hydraulic oil

5) Operating pressure(Bar): 150Bar to 220Bar

6) Working temperature: -40ºC-/+80ºC

7) Color: Black or Red

8) Weight: 6.5kg





Part no.  Description Max. press.
(Bar)
Ports Flow
(L/min)
Weight
(kg)
Kit no.
147 67 315 Valve PT - 1220 - 150 150 G1" 220 6.4 EC150
ED150
147 67 317 Valve PT - 1220 - 170 170 G1" 220 6.4 EC170
ED170
147 67 319 Valve PT - 1220 - 190 190 G1" 220 6.4 EC190
ED190
148 67 322 Valve PT - 1220 - 220 220 G1" 220 6.4 EC220
ED220
148 67 325 Valve PT - 1220 - 250 250 G1" 220 6.4 EC250
ED250
148 67 328 Valve PT - 1220 - 280 280 G1" 220 6.4 EC280
ED280
149 67 335 Valve PT - 1220 - 350 350 G1" 220 6.4 EC350
ED350





Drawings:

Single Pressure Dump Truck controls PT 1220 Valve Tipping valves 0






1   : pump connection ( P )
2A : return tank connection (T)
2B : alternative return tank connection (T)
3   : cylinder connection (C)
4   : pneumatic connection of air control - tip
5   : pneumatic connection of air control - lower
6   : regulator for adjustment of lowering speed
7   : pressure gauge point
8   : cartridge
