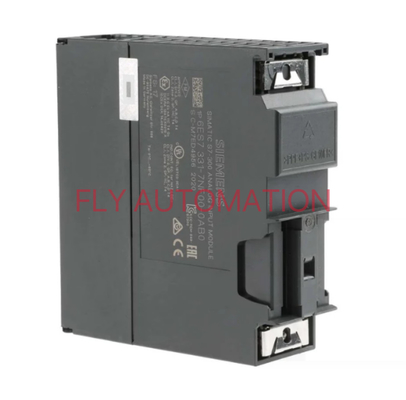

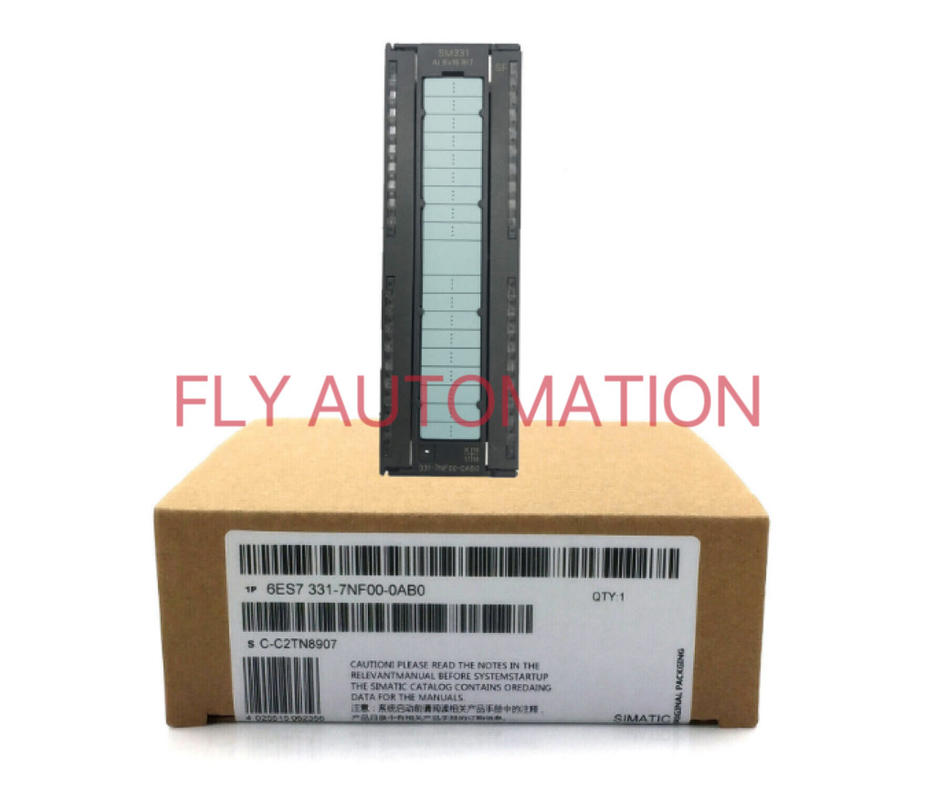

SIEMENS 6ES7331-7NF00-0AB0 Analog Input Module For Use With S7-300 Series

Product Details:

Place of Origin:	CHINA
Brand Name:	SIEMENS
Model Number:	6ES7331-7NF00-0AB0

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	EXW USD540-600
Packaging Details:	carton
Delivery Time:	8-15 work days
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	100PCS Every month

Contact Now

Detailed Product Description

Accessory Type:

Analogue Module

For Use With:

S7-300 Series

Dimensions:

13.10 X 15.10 X 5.10

Weight:

0.4 Kg

High Light:

6ES7331-7NF00-0AB0

Automation Control Analog Input Module

S7-300 Analog Input Module

SIEMENS 6ES7331-7NF00-0AB0 Analog Input Module for use with S7-300 Series

Name: SIEMENS 6ES7331-7NF00-0AB0 Analog Input Module For Use With S7-300 Series
Brand: SIEMENS
SKU: 6ES7331-7NF00-0AB0
Price: 540 USD
Availability: InStock
Rating: 4.9 (196 reviews)

SIEMENS 6ES7331-7NF00-0AB0 Analog Input Module For Use With S7-300 Series

6ES73317NF000AB0 Siemens SIMATIC S7-300, Analog input SM 331, isolated, 8 AI; +/-5/10V, 1-5 V, +/-20 mA, 0/4 to 20 mA, 16 bit (55ms), Single rooting (50 V COM.), 1x 40-pole 6ES7331-7NF00-0AB0

SKU: 6ES73317NF000AB0 Categories: Programmable Logic Controller (PLC), SIEMENS PLC Systems Tags: 6ES7331-7NF00-0AB0, 6ES73317NF000AB0

Input current
from backplane bus 5 V DC, max.	130 mA
Power loss
Power loss, typ.	0.6 W
Analog inputs
Number of analog inputs	8
permissible input voltage for voltage input (destructionlimit), max.	50 V; Permanent
permissible input current for current input (destructionlimit), max.	32 mA
Analog value generation for the inputs
Integration and conversion time/resolution per channel
● Resolution with overrange (bit including sign), max.	16 bit; Unipolar: 15/15/15/15 bit; bipolar: 15 bit + sign/15 bit + sign/15 bit + sign/15 bit + sign
● Integration time, parameterizable	Yes; 10/ 16.67/ 20/ 100 ms
● Interference voltage suppression for interference frequency f1 in Hz	400 / 60 / 50 / 10 Hz
Encoder
Connection of signal encoders
● for voltage measurement	Yes
● for current measurement as 2-wire transducer	Yes; with external transmitter; possible with separate supply for transmitter
● for current measurement as 4-wire transducer	Yes
Errors/accuracies
Operational error limit in overall temperature range
● Voltage, relative to input range, (+/-)	0.1 %; At Ucm = 0 V or ±0.7 % at Ucm = 50 V
● Current, relative to input range, (+/-)	0.3 %; At Ucm = 0 V or ±0.9 % at Ucm = 50 V
Basic error limit (operational limit at 25 °C)
● Voltage, relative to input range, (+/-)	0.05%
● Current, relative to input range, (+/-)	0.05%
Interrupts/diagnostics/status information
Diagnostics function	Yes; Parameterizable
Alarms
● Diagnostic alarm	Yes; Parameterizable
● Limit value alarm	Yes; Parameterizable, channels 0 and 2
Diagnoses
● Diagnostic information readable	Yes
Diagnostics indication LED
● Group error SF (red)	Yes
Isolation
Isolation tested with	500 V DC
connection method / header
required front connector	40-pin
Dimensions
Width	40 mm
Height	125 mm
Depth	117 mm
Weights
Weight, approx.	272 g
