| Place of Origin: | CHINA |
| Brand Name: | SIEMENS |
| Model Number: | 3RV2011-1KA10 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | EXW USD129-150 |
| Packaging Details: | carton |
| Delivery Time: | 8-15 work days |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 100PCS Every month |
| Product Type Designation: | 3RV2 | Ambient Temperature: | -20 ... +60 °C |
|---|---|---|---|
| Net Weight (kg): | 0.35KG | Packaging Dimension: | 49x 102 X 102MM |
| High Light: | 12A Motor Control Circuit Breaker,3RV2011-1KA10 Circuit Breaker,Industrial Siemens Breakers |
||
Description

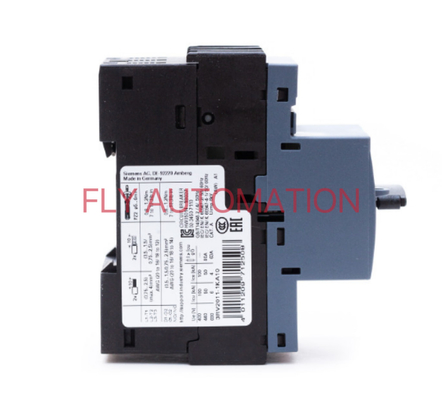

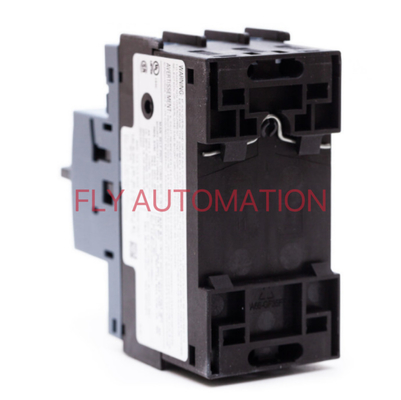

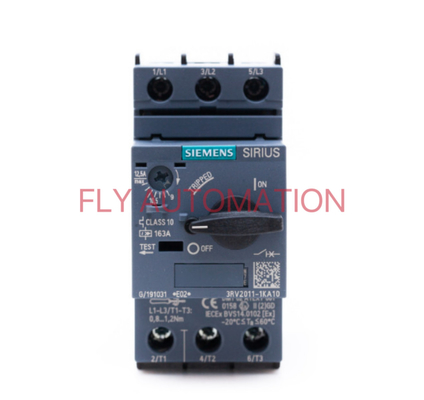

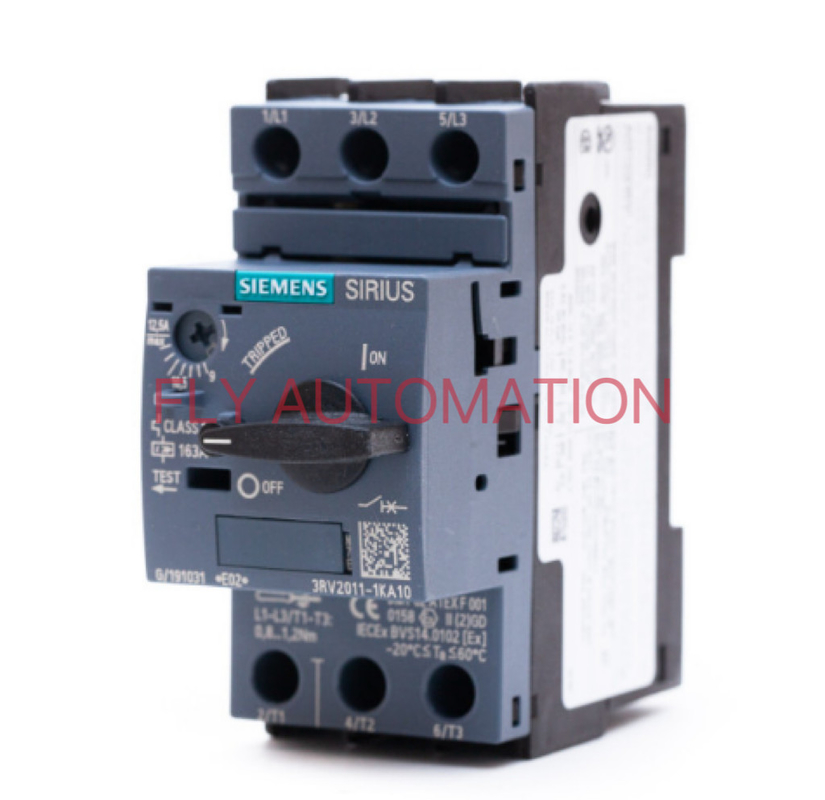

Siemens SIRIUS 3RV2011-1KA10 industrial circuit breaker for motor control with adjustable overload setting of 9A - 12.5A.
| Adjustable pick-up value current of the current dependent overload release | 9A to 12.5A |
| Maximum rated operating voltage | 690V |
| Number of poles for main circuit | 3 |
| Operating frequency rated value | 50Hz - 60Hz |
| Operating current rated value | 12.5A |
| Number of NC auxiliary contacts | 0 |
| Number of NO auxiliary contacts | 0 |
| Ground fault detection | No |
| Phase failure detection | Yes |
| Design of the short-circuit trip | Magnetic |
| Design of the overload release | Thermal |
| Mounting type | Can be DIN rail mounted or screw mounted |
| Size | S00 |
| Size: | S00 |
| IP Rating: | IP20 |
| Poles: | 3 |
| Setting Range: | 9A - 12.5A |
| Rated Current: | 12.5A |
| Voltage: | 690V |
| Frequency: | 50Hz |
| Frequency: | 60Hz |
| Mounting Type: | DIN Rail Mounted |
| Mounting Type: | Screw Mounted |
