| Place of Origin: | CHINA |
| Brand Name: | SIEMENS |

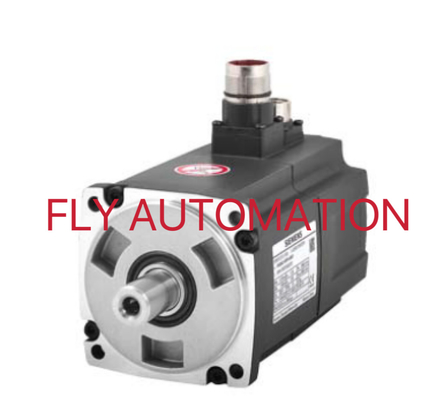

| Model Number: | 1FL6044-1AF61-2AA1 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | EXW USD492-521 |
| Packaging Details: | carton |
| Delivery Time: | 8-15 work days |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 100PCS Every month |
| Product Family: | 1FL6 Servomotors For SINAMICS V90 | Product Lifecycle (PLM): | PM300:Active Product |
|---|---|---|---|
| Net Weight (kg): | 5.2KG | Packaging Dimension: | 222 X 382 X 250mm |
| High Light: | SIEMENS 1FL6 Servo Motors,SINAMICS V90 Servo Motors,High Inertia Permanent Magnet Synchronous Motor |
||
Product Description:
| Engineering data: | |
| Rated speed | 3000 rpm |
| Rated torque (100 K) | 2.39 Nm |
| Rated current | 2.1 A |
| Rated power | 0.75 kW / 1.02 hp |
| Max. speed | 4000 rpm |
| Maximum torque | 7.20 Nm |
| Max. current | 6.3 A |
| Static torque | 3.50 Nm |
| Moment of inertia | 5.200 kgcm² |
| Mechanical data: | |
| Motor type | High Inertia |
| Motor type | Permanent-magnet synchronous motor |
| Shaft height | 45 |
| Encoder system | Incremental encoder TTL, 2500 S/R (13 bit) |
| Cooling | Natural cooling |
| Shaft end | Feather key |
| Radial runout tolerance | Class N |
| Vibration severity grade | Grade A |
| Degree of protection | IP65 |
| Design acc. to Code I | IM B5 (IM V1, IM V3) |
| Connection type | Angular connector (rotatable) |
| Physical constants: | |
| Torque constant | 1.20 Nm/A |
| Thermal class | B (130 °C) |
| Net weight | 5.20 kg |
| Ambient conditions: | |
| Ambient temperature | |
| Ambient temperature | 0 ... 40 °C |
| Relative humidity | |
| Max. operation | 90 % RH maximum (no condensation at 30 °C) |
| Standards: | |
| Compliance with standards | CE, EAC |
