Place of Origin: | CHINA |
Brand Name: | SIEMENS |
Model Number: | 6AV2124-0QC02-0AX1 |
Minimum Order Quantity: | 1PC |
---|---|
Price: | EXW USD6246-6250 |
Packaging Details: | carton |
Delivery Time: | 15-30 work days |
Payment Terms: | T/T, Western Union,Paypal |
Supply Ability: | 100PCS Every month |
Product Type Designation: | TP1500 Comfort | Design Of Display: | TFT |
---|---|---|---|
Screen Diagonal: | 15.4 In | Rated Value (DC): | 24 V |
High Light: | TP1500 Comfort Panel Touch Screen,6AV2124-0QC02-0AX1,SIMATIC HMI Comfort Panel Touch Screen |
Description:

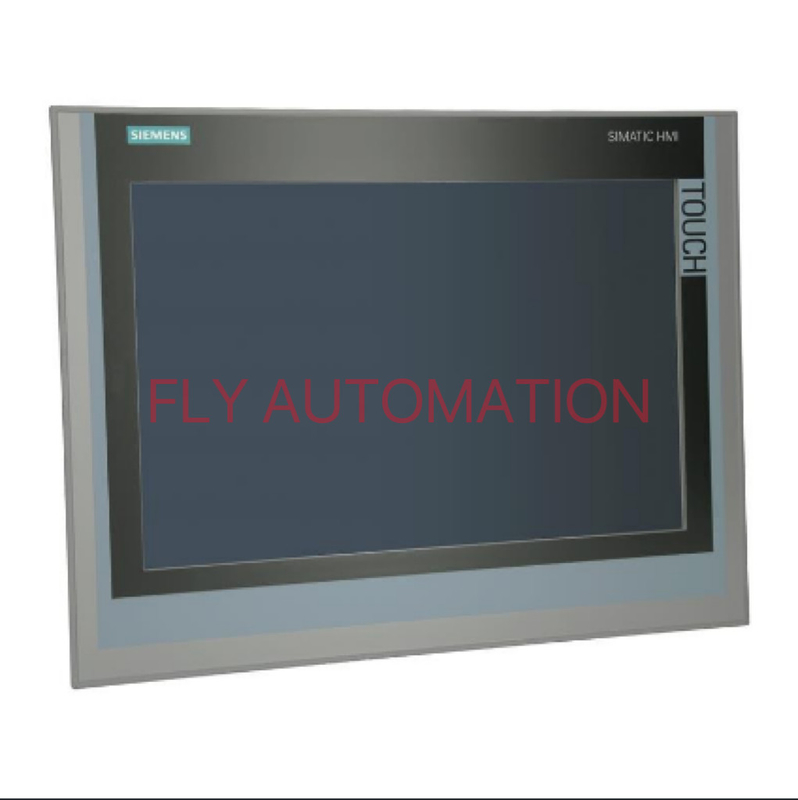

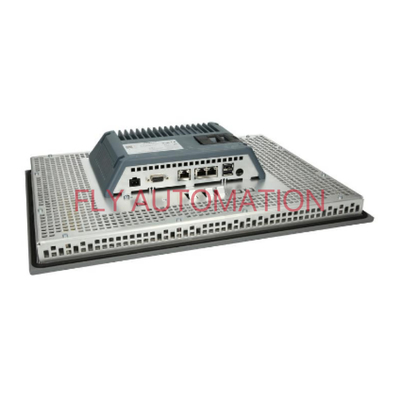

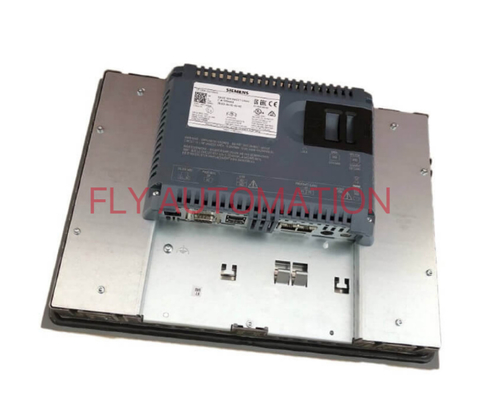

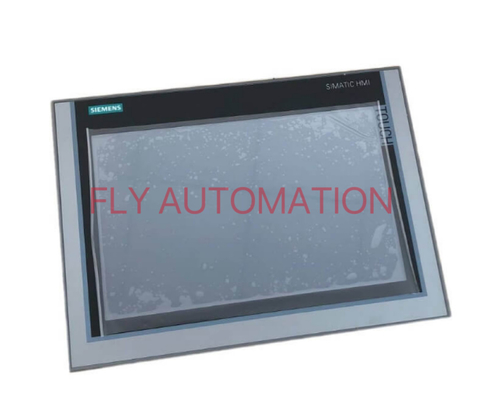

SIMATIC HMI TP1500 Comfort, Comfort Panel, Touch operation, 15" widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 24 MB configuration memory, WEC 2013, configurable from WinCC Comfort V14 SP1 with HSP.
General information | |
Product type designation | TP1500 Comfort |
Display | |
Design of display | TFT |
Screen diagonal | 15.4 in |
Display width | 331.2 mm |
Display height | 207 mm |
Number of colors | 16 777 216 |
Resolution (pixels) | |
● Horizontal image resolution | 1 280 pixel |
● Vertical image resolution | 800 pixel |
Backlighting | |
● MTBF backlighting (at 25 °C) | 80 000 h |
● Backlight dimmable | Yes; 0-100 % |
Supply voltage | |
Type of supply voltage | DC |
Rated value (DC) | 24 V |
permissible range, lower limit (DC) | 19.2 V |
permissible range, upper limit (DC) | 28.8 V |
Dimensions | |
Width of the housing front | 415 mm |
Height of housing front | 310 mm |
Mounting cutout, width | 396 mm |
Mounting cutout, height | 291 mm |
Overall depth | 75 mm |
Weights | |
Weight (without packaging) | 4.4 kg |
