SCG551A002MS 1/4" NAMUR Style Monostable Double Coil Spring Return Numatics Solenoid Valve

SCG551A002MS 1/4" NAMUR Style Monostable Double Coil Spring Return Numatics Solenoid Valve

  • SCG551A002MS 1/4" NAMUR Style Monostable Double Coil Spring Return Numatics Solenoid Valve
  • SCG551A002MS 1/4" NAMUR Style Monostable Double Coil Spring Return Numatics Solenoid Valve
  • SCG551A002MS 1/4" NAMUR Style Monostable Double Coil Spring Return Numatics Solenoid Valve
  • SCG551A002MS 1/4" NAMUR Style Monostable Double Coil Spring Return Numatics Solenoid Valve
  • SCG551A002MS 1/4" NAMUR Style Monostable Double Coil Spring Return Numatics Solenoid Valve
SCG551A002MS 1/4" NAMUR Style Monostable Double Coil Spring Return Numatics Solenoid Valve
Product Details:
Place of Origin: China
Brand Name: ASCO
Certification: CE
Model Number: SCG551A002MS
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Delivery Time: within 1-30 working days after payment
Payment Terms: T/T , Western Union
Supply Ability: 1000 pcs
Contact Now
Detailed Product Description
Model Code: SCG551A002MS Working Press: 2-10 Bar
Working Temp.: -25 °C To +60 °C Port Size: 1/4"
High Light:

pulse solenoid valve

,

pneumatic diaphragm valves

ASCO numatics SCG551A002MS 1/4" NAMUR style monostable double coil spring return solenoid valve

FEATURES

1. The monostable spool valves have TüV-EXIDA certified IEC 61508 Functional Safety data and can be used up to SIL 4 (551/TüV)-SIL 3 (552-553/EXIDA)
2. The spool valves have threaded port connections and "NAMUR" style interface
3. The same spool valve can be adapted for 3/2 NC or 5/2 function for controlling double-acting and single-acting actuators
4. All the exhaust ports of this spool valve are connectable, providing better environmental protection, particularly recommended for sensitive areas such as clean rooms, and applications in the pharmaceutical and food processing sectors
5. The valve offers environmental protection against the ingress of liquids, dusts or any other foreign matter (environmentally-protected construction)
6. Epoxy moulded coil for general service applications
7. The solenoid valves satisfy all relevant EC Directives



GENERAL

Differential pressure: 2 - 10 bar [1 bar = 100 kPa]
Flow (Qv at 6 bar): 1/4 = 700 l/min (ANR)
                               3/8 - 1/2 = 3000 l/min (5/2, 5/3)



MATERIALS IN CONTACT WITH FLUID

Body: Aluminium, black anodized
End covers + interface plates: Glass-filled PA
Internal parts: Zamak, stainless steel, (POM), aluminium
Seals: NBR + PUR
Core and plugnut: Stainless steel
Shading coil: Copper


Electrical characteristics

Coil insulation class F
Connector specification DIN 43650, 11 mm, industry, standard B (type 01)
or ISO 4400 (type 02)
Connector Spade plug (cable Ø 6-8 mm or Ø 6-10 mm)
Electrical safety IEC 335
Standard voltages DC (=) : 24V
AC (~) : 24V - 115V - 230V / 50 Hz


Pictures and details

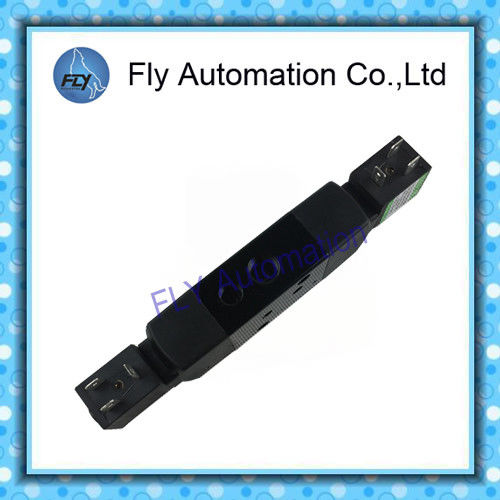

SCG551A002MS 1/4" NAMUR Style Monostable Double Coil Spring Return Numatics Solenoid Valve 0



OPTIONS

1. Other pipe threads are available on request
2. Coil type CM25 with connector size 30 ISO 4400 (Pg 11P) (series 551)
3. Polyamide coil
4. Ex mb/mD (prefix "PV") solenoid can be supplied with various cable lengths
5. Compliance with "UL" standard is available on request (552-553 ranges)
6. Set of stainless steel mounting screws, catalogue number 97802212 (series 551)
7. Set of two exhaust reducers, G1/8, catalogue number 88100344 (series 551)
8. Dustproof ATEX (SCDU) with a coil and spade plug connector with lead (2 m lead), TPL 20651



INSTALLATION

1. Installation/maintenance instructions are included with each valve
2. The valves can be mounted in any position without affecting operation
3. 3/2 NC-5/2 spool valve supplied with two interface plates with NAMUR mating surfaces. Depending on function (3/2 NC or 5/2), position one of the two plates on the spool valve body before installing on actuator
4. IEC 61508 Functional Safety (Suffix SL), allowable temperature range: -25°C to +60°C. Probability of failure on demand, contact us
5. Spool valve supplied with two interface plates with NAMUR mating surfaces. Depending on function (NC 3/2 or 5/2), position one of the two plates on the spool valve body before installing on actuator 6. It is necessary to connect pipes or fittings to the exhaust ports to protect the internal parts of the spool valve and its pneumatic operator if used outside or in harsh environments (dusts, liquids etc.)
7. Dowel pin (if necessary), bolts and gaskets are standard supplied
8. Threaded pipe connection identifier is: 8 = NPT (ANSI 1.20.3); G = G (ISO 228/1)



Delivery

1. Installation/maintenance instructions are included with each valve
2. The solenoid valves can be mounted in any position without affecting operation
3. Spool valve supplied with two interface plates with NAMUR mating surfaces. Depending on function (NC 3/2 or 5/2), position one of the two plates on the spool valve body before installing onto actuator
4. It is necessary to connect pipes or fittings to the exhaust ports to protect the internal parts of the spool valve and its pneumatic operator if used outside or in harsh environments (dusts, liquids, etc.)
5. Dowel pin (if necessary), bolts and gaskets are standard supplied
6. Threaded pipe connection identifier is: 8 = NPT (ANSI 1.20.3); G = G (ISO 228/1)
