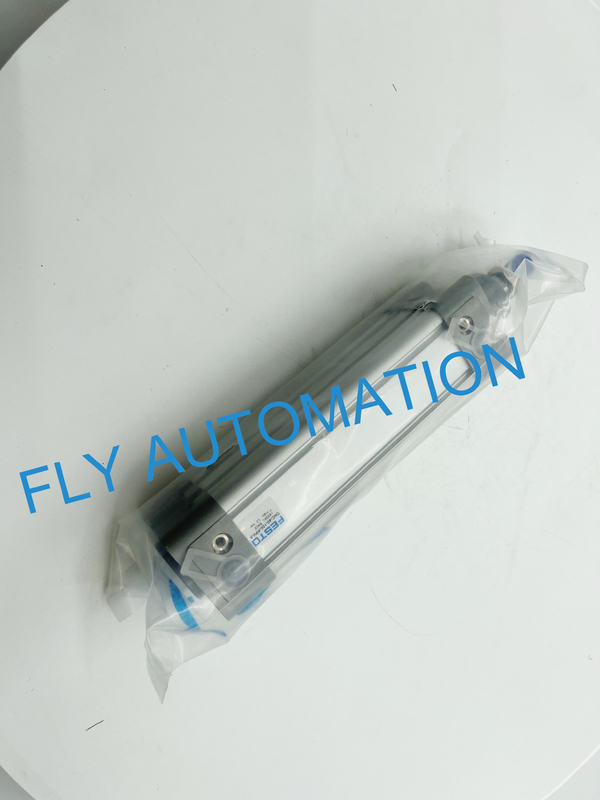

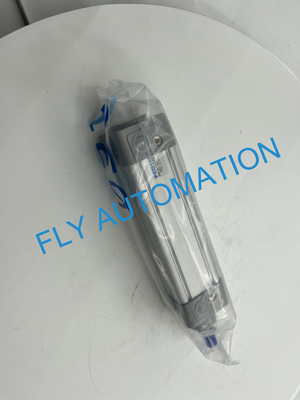

Pneumatic FESTO ISO Cylinder DNC-40-80-PPV-A 163340

Product Details:

Brand Name:	FESTO
Model Number:	DNC-40-80-PPV-A

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	EXW USD30-50
Packaging Details:	plastic bag, carton，OPP bag
Delivery Time:	10-12working days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	1500 pcs per month

Contact Now

Detailed Product Description

Part No:	163340	Type:	DNC-40-80-PPV-A
Brand:	FESTO	Ambient Temperature:	-20°C-80°C
Weight:	1160 G	Color:	Silver
High Light:	163340 Pneumatic Air Cylinders , DNC-40-80-PPV-A , Piston Rod Thread FESTO ISO Cylinder

FESTO ISO cylinder DNC-40-80-PPV-A 163340 Pneumatic Air Cylinders

Name: Pneumatic FESTO ISO Cylinder DNC-40-80-PPV-A 163340
Brand: FESTO
SKU: DNC-40-80-PPV-A
Price: 30 USD
Availability: InStock
Rating: 5 (126 reviews)

About product

Piston rod thread:M12x1.25

Cushioning:Pneumatic cushioning, adjustable at both ends

Conforms to standard:ISO 15552

Mode of operation:Double-acting

Ambient temperature: -20°C-80°C

Technical Data

Stroke	80 mm
Piston diameter	40 mm
Piston rod thread	M12x1.25
Cushioning	Pneumatic cushioning, adjustable at both ends
Mounting position	optional
Conforms to standard	ISO 15552
Piston-rod end	Male thread
Design	Piston Piston rod Profile barrel
Position detection	Via proximity switch
Symbol	00991235
Variants	Piston rod at one end
Mode of operation	Double-acting
Corrosion resistance class CRC	2 - Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C-80°C
Basic weight for 0 mm stroke	800 g
Additional weight per 10 mm stroke	45 g
Pneumatic connection	G1/4
Note on materials	RoHS-compliant
Material cover	Die-cast aluminium Coated
Material seals	TPE-U(PU)
Material piston rod	High-alloy steel
Material cylinder barrel	Wrought aluminium alloy Smooth anodised

Quality Standards

The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount, but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance, according to the original quality standards, during warranty with product problems, need confirmation testing by the manufacturer, the supplier to be solved, the demand side due to storage, use, poor maintenance caused by lower-quality product, and not raise objections.

FESTO has a wide variety of products and reliable quality. Welcome to enquiry.
