Product Details:
Place of Origin: China
Brand Name: Goyen
Certification: ISO 9001,CE
Model Number: RCA3PV
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: EXW USD12~20
Packaging Details: carton
Delivery Time: 5 working days
Payment Terms: T/T
Supply Ability: 2000 pcs/month
Contact Now
Detailed Product Description
Model: RCA3PV Thread Size:: 1/8" &NPT1/8"
Coil Series: SB3 Coil Weight: 0.2kgs
Connection: Square DIN Connector Voltage: DC24V DC12V AC220V AC110V
High Light:

air pulse valve

,

pulse jet valve

RCA3PV Goyen Series 4 Reverse Pulse Jet Valves 1/8” RCAC Integral Pilot



RCA3PV: 2-in-1: Integral or remote solenoid DIN connections, ATEX options.



Suitable for:

Goyen series 4 Pulse jet valve, RCAC, CAC pulse valve.



Construction

Body:Aluminium(diecast)

Ferrule:304SS

Armature:430FR SS

Seals: Nitrile

Locknut: Mild steel zinc passivated

Screws:302 SS

Clips: Mild steel(plated)



Model Designation:

Pilot Modules RCA3PV Goyen Series 4 Reverse Pulse Jet Valves 1/8” RCAC Integral Pilot 0

Functionality
The pilot valve has the primary role of exhausting pressure air off the topside of a main
reverse pulse diaphragm valve, in a remote mounted position.
Flow Performance
The pilot valve orifice: 5 mm ( 3/16 " ) Flow Performance: 0.68 Cv / .58 kV
Pressure Range
Maximum Working Pressure: 860 kPa ( 125 psi )
Recommended Working Pressure:760 kPa ( 110 psi )
Minimum Working Pressure: 30 kPa ( 5 psi )
Temperature Rating
Working Temperature Range: -40 °C to 80 °C ( -40 °F to 176 ° F )
Fluid Media
Dry air or inert gas

Spare Parts:

K0380 Replacement seal,armature,spring&ferrule kit

K0384 As above in fluororubber



SB3 Solenoid coil



Drawings & dimension:

Pilot Modules RCA3PV Goyen Series 4 Reverse Pulse Jet Valves 1/8” RCAC Integral Pilot 1


Power Consumption & Duty Cycle:

Power consumption per operating coil:
Voltage Power (Watt)
110/120 VAC 19 W
220 V 50 Hz 11 W
24 V DC 24 W
200/220 VAC 28 W
12 V DC 24 W
24 V 50 Hz 12 W
100/110 VAC 19 W
48 V DC 25 W

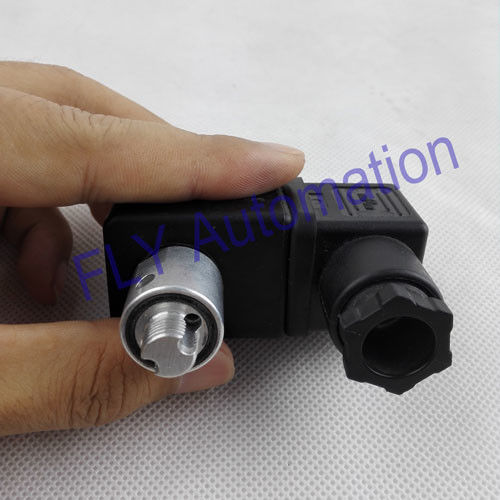

Picture details:

Pilot Modules RCA3PV Goyen Series 4 Reverse Pulse Jet Valves 1/8” RCAC Integral Pilot 2



Competitive Advantage:



Our product features: Our Services Guarantee:
1) Competitive price 1) Prompt respond (Reply with 24 hours)
2) Good quality 2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging, 3) Registration support.
4) Produce according to Customers’ instruction 4) Photos/videos are available during production.
5) None delay shipment

5) Loading inspection, and send loading photos before shipment.





Quality Standards :



The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections



Warranty:



All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
